-61-
Maintenance 5
• Drain plug for the right front knucle is on
the back side of the front axle.
NOTE

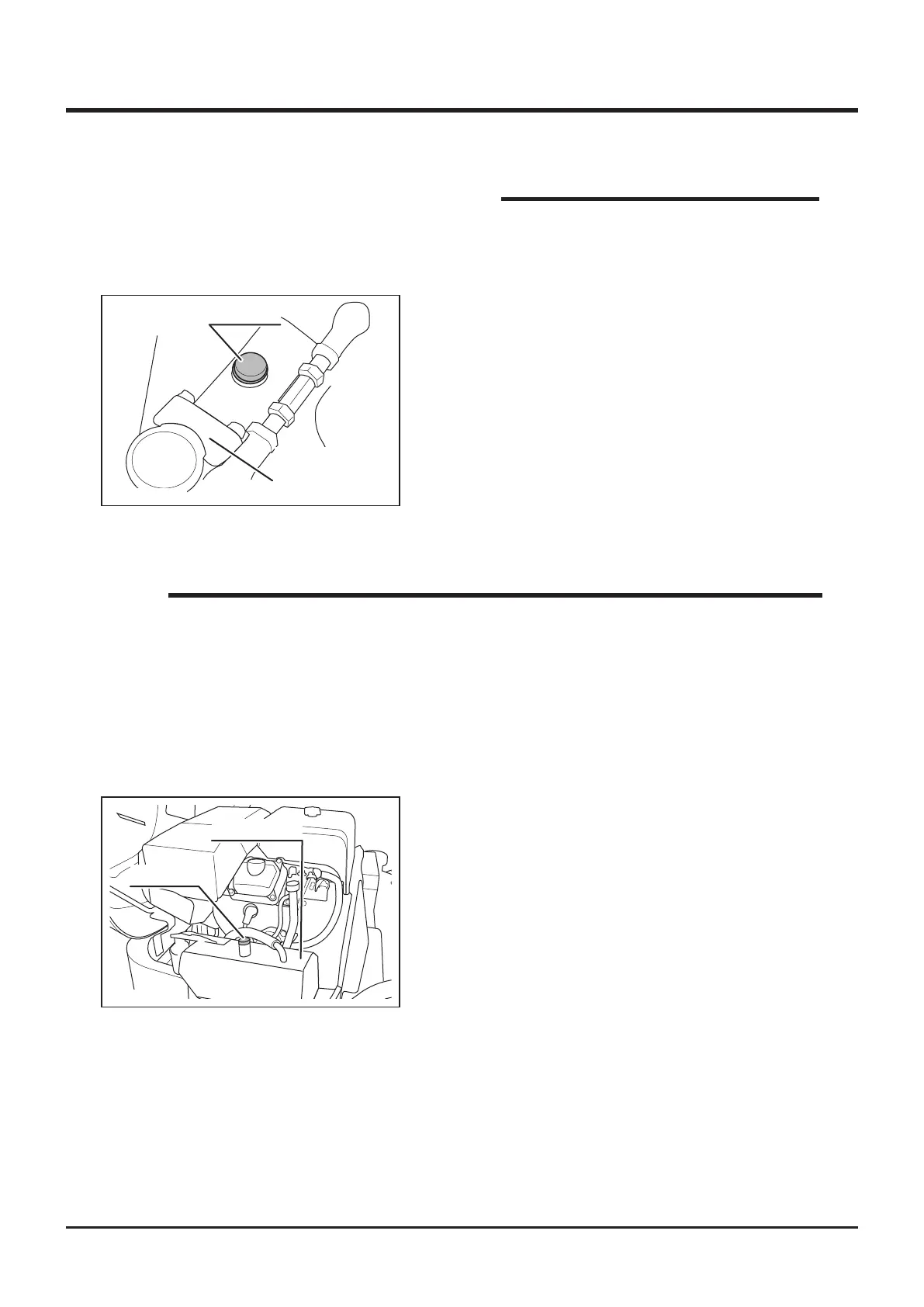

5332M-0507-090E
Filler Plug
Front Wheel
Axle (Right)
5. Install both drain plugs back in place.
6. Remove right front step.
7. Remove oil ller cap.
8. Fill specied amount of oil into ller.
9. Install ller plug back in place.
10. Install right front step.
HST (Hydrostatic Transmission) Fluid
• To obtain correct reading, check HST uid level before starting, or wait until HST
uid cools off sufciently. Hot HST uid expands in volume and does not provide
correct reading.
• When oil is sufficiently cooled and is at the [MIN] level, its amount is sufficient.
• Do not exceed beyond [MAX] level. HST fluid may espand and overflow.
• Oil to use and capacity: Page 45.
NOTE
5335M-0507-010E
HST Oil Tank
Filler Cap
1. Park machine on the level ground.
2. Open engine hood.
3. Unscrew and remove ller cap.
Inspecting - Models with charge-pump
To Next Page
