5

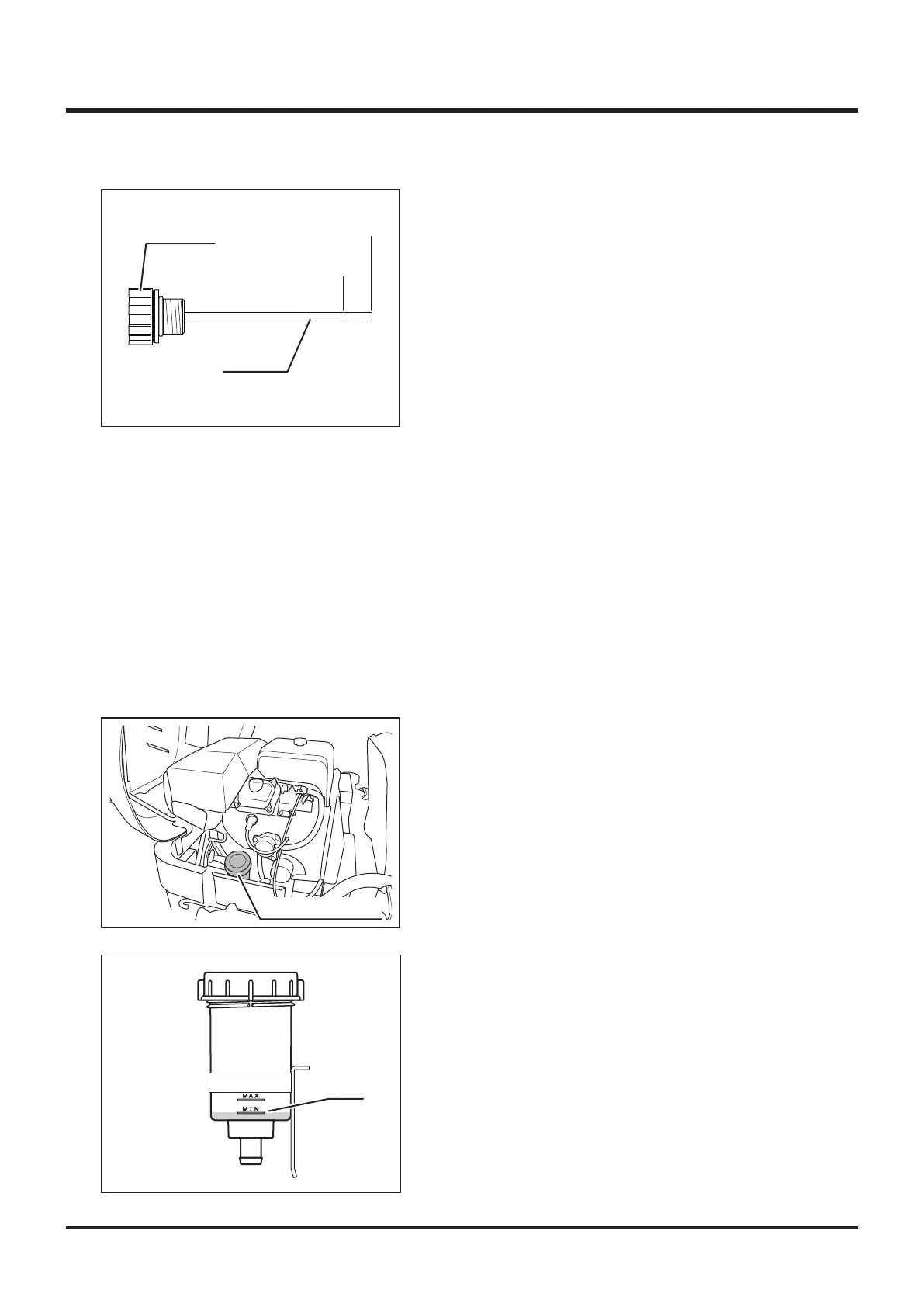

Upper Limit
Lower Limit
5335M-0507-020E
Filler Cap
Dip Stick
1. Open engine hood.
2. Remove ller cap.
3. Fill specified HST fluid into filler so that oil
level is between upper and lower limits on
dipstick.
4. Reinstall ller cap back in place and screw it
securely.
5. Close engine hood.
Filling - Models with charge-pump
4. Wipe dip stick with clean cloth. Reinstall ller
cap and screw it fully.
5. Unscrew and remove ller cap again. Visually
inspect that oil level is between the upper
and lower limits on dip stick. If it is below the
lower limit, ll oil.
6. Reinstall ller cap and screw it fully.
7. Close engine hood.
5335M-0507-030E
HST Oil Reservoir
1. Park machine on the level ground.
2. Open engine hood.
3. Visually inspect that oil level is between [MIN]
and [MAX] lines on oil reservoir. If it is below
[MIN], ll oil.
4. Close engine hood.
Inspecting - Models without charge-pump
1. Open engine hood.
2. Remove cap on HST oil reservoir.
3. Fill specied HST uid into reservoir so that
oil level is above [MIN] line on reservoir.
4. Reinstall cap back in place and screw it
securely.
5. Close engine hood.
Filling - Models without charge-pump
5335M-0507-050E
