Caple C2234BK User Manual

Instruction manual C2234 / C2234BK
Please keep this instruction manual for future reference
20

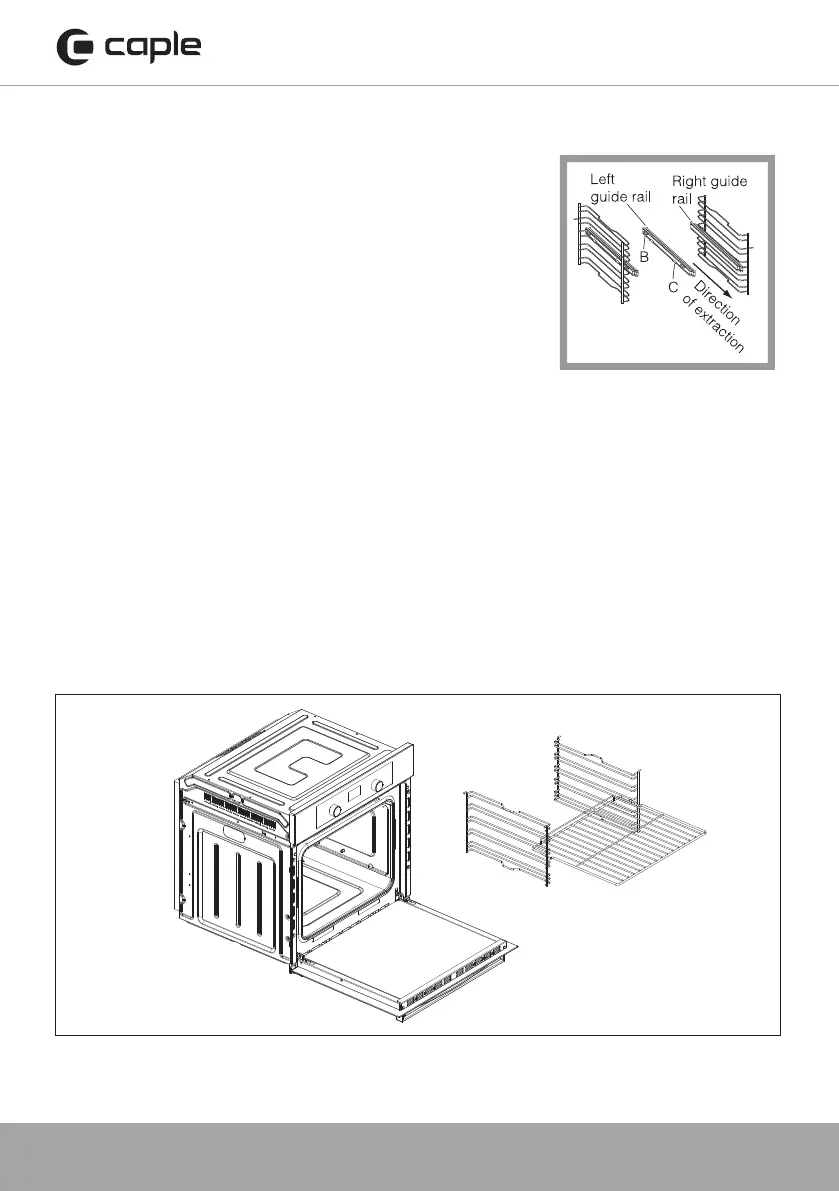

Telescopic runners (optional accessory)
To assemble the telescopic runners:
- Remove the side racks (see secton below and Fig.2)
- Choose which shelf to use with the telescopic runner.
Pay attention to the direction in which the runner is
to be extracted, position joint ‘B’ and joint ‘C’ on the
frame (see Fig.1).
- Squeeze the bars together slightly and clip either
end of the telescopic runners on to the side racks.
- Finally, re-fit the side racks (See below and Fig.2)
Note:
Telescopic runners are optional accessories and are not included.
Telescopic runners
To assemble the telescopic runners:
- Remove the side racks
- Choose which shelf to use with the telescopic runner. Pay attention to the
direction in which the runner is to be extracted, position joint ‘B’ and joint ‘C’
on the frame (see Fig.1).
- Secure the two side racks with the guide rails using the holes provided on the
oven walls (see Fig. 3).The holes for the left rack are situated at hole F1, F2 and
the right rack at hole D1, D2.
- Finally, re-fit the side rack
Fig.1
Side racks and Catalytic liners
To install, align the 2 holes in the catalytic liners with the 2 steel clips in the side of
the oven cavity. Once aligned, attach side racks by pushing these onto the furthest
steel clip and then clicking the other end onto the closest steel clip.
This will secure the catalytic liners to the sides of the oven. To remove, unclip the side
racks from the side of the oven, and remove the catalytic liners.
Visit our Caple website to view a 'How to video' on this. www.c
aple.co.uk
Side Racks
To install, attach side rack by hanging these through the 2 holes in the side of the
oven cavity, and pushing them onto the round steel clip towards the bottom.
To remove, unclip the side racks from the side of the oven.
Figure 1.
Figure 2.
C2220
C2231
C2234
C2234/C2239

Caple C2234BK Specifications

General

Oven size	Medium
Oven type	Electric
Number of ovens	1
Reheat function	-
Shelves material	Chrome
Total oven power	2340 W
Number of shelves	1 shelves
Number of cooking programs	5
Total oven(s) interior capacity	67 L
Clock type	Electronic
Timer type	Digital
Timer modes	Timer
Wi-Fi controlled	No
Color name	Black Glass
Door hinge	down
Control type	Rotary, Touch
Product color	Black
Control position	Top front
Interior material	Enamel
Oven door opening	Drop down opening
Appliance placement	Built-in
Control panel material	Glass
Number of glass door panels	2
Current	13 A
Energy efficiency scale	A+++ to D
Energy consumption (conventional)	- kWh
Energy consumption (forced convection)	0.71 kWh
Lamps quantity	1 lamp(s)

Weight and Dimensions

Depth	546 mm
Width	600 mm
Height	595 mm
Weight	33300 g
Installation compartment depth	550 mm
Installation compartment width	560 mm
Installation compartment height	589 mm
