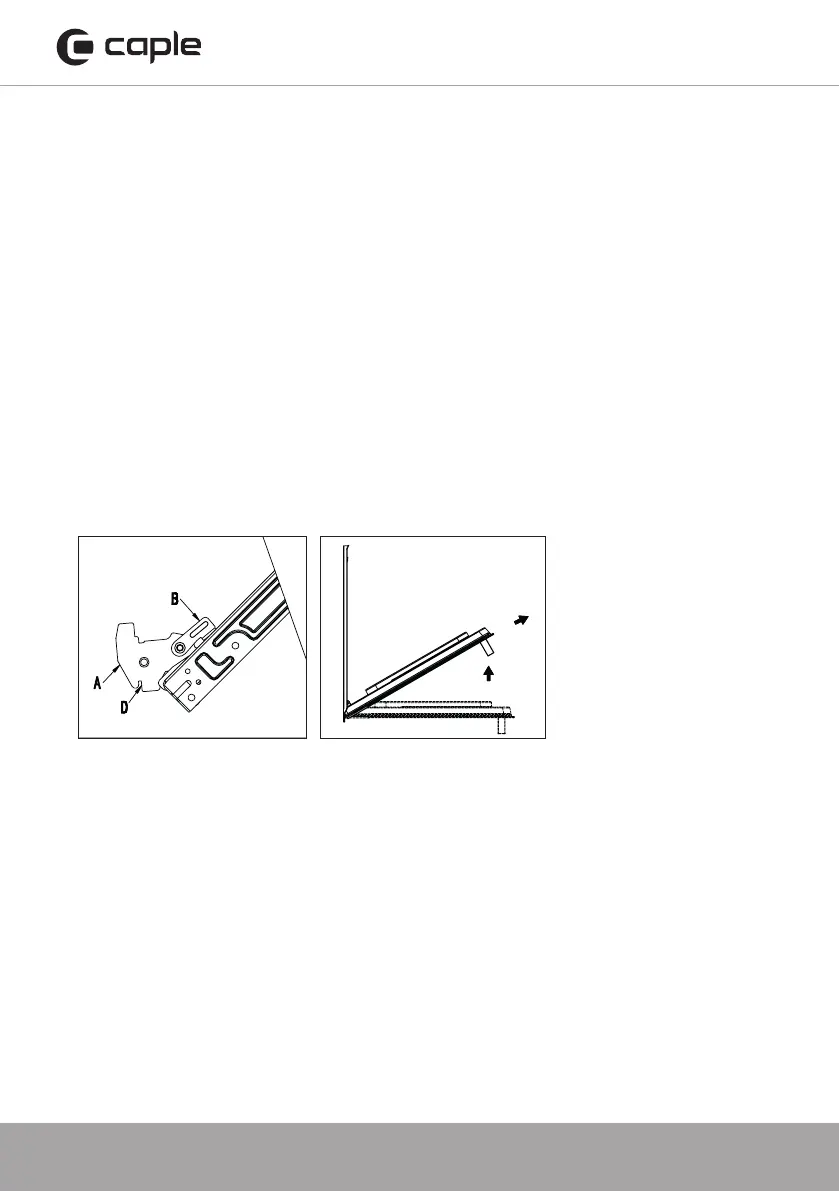

REMOVING THE OVEN DOOR
To make it easier to clean the inside of your oven, the oven door can be easily
removed, by proceeding as follows (fig. 11):
- Open the door completely and lift the 2 levers “B” (fig.11-1);
- Now, shutting the door slightly, you can lift it out by pulling out the hooks “A” as
shown in figure 2.
- To reassemble the door:
- With the door in a vertical position, insert the two hooks “A” into the slots;
- Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the oven
door backwards and forward slightly);
- Keep the oven door open fully, unhook the 2 levers “B” downwards and then shut
the door again.
43
Disassembling/assembling the oven door
To make it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as
follows (fig. 11):
ƽ Open the door completely and lift the 2 levers “B” (fig.11-1);
ƽ Now, shutting the door slightly, you can lift it out by pulling out the hooks “A” as shown in figure 2.
To reassemble the door:
ƽ With the door in a vertical position, insert the two hooks “A” into the slots;
ƽ Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the oven door backwards and forward
slightly);
ƽ Keep the oven door open fully, unhook the 2 levers “B” downwards and then shut the door again.
Removable the glass panels
The oven door is made up of 3 panes of glass and has vents at the top and bottom. When the oven
is operating,
air is circulated through the door to keep the outer pane cool. If condensation has worked its way
in between the
glass panes, the door can be dismantled in order to clean in between the panes.
Remove the door as per above instruction and place it on a protective surface (e.g. on a table cloth)
to prevent it
getting scratched. The door handle should line up with the edge of the table. Make sure the glass
lies flat to avoid
breakage of glass during cleaning.
Clean the glass panes
and other parts with a damp
microfibre cloth.
or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft
cloth.
Fig.11-1
Fig.11-2
1. Press the button on left and right side of door, take out top rail. (Fig.1)
2. Take out inner glass slowly (Fig.2)
3. Loose clips by unscrewing. (Fig.3)
4. Take out middle glass. (Fig.4)
43
Disassembling/assembling the oven door
To make it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as
follows (fig. 11):
ƽ Open the door completely and lift the 2 levers “B” (fig.11-1);
ƽ Now, shutting the door slightly, you can lift it out by pulling out the hooks “A” as shown in figure 2.
To reassemble the door:
ƽ With the door in a vertical position, insert the two hooks “A” into the slots;
ƽ Ensure that seat “D” is hooked perfectly onto the edge of the slot (move the oven door backwards and forward
slightly);
ƽ Keep the oven door open fully, unhook the 2 levers “B” downwards and then shut the door again.
Removable the glass panels
The oven door is made up of 3 panes of glass and has vents at the top and bottom. When the oven
is operating,
air is circulated through the door to keep the outer pane cool. If condensation has worked its way
in between the
glass panes, the door can be dismantled in order to clean in between the panes.
Remove the door as per above instruction and place it on a protective surface (e.g. on a table cloth)
to prevent it
getting scratched. The door handle should line up with the edge of the table. Make sure the glass
lies flat to avoid
breakage of glass during cleaning.
Clean the glass panes
and other parts with a damp
microfibre cloth.
or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft
cloth.
Fig.11-1
Fig.11-2
1. Press the button on left and right side of door, take out top rail. (Fig.1)
2. Take out inner glass slowly (Fig.2)
3. Loose clips by unscrewing. (Fig.3)
4. Take out middle glass. (Fig.4)
Fig.11-1 Fig.11-2

Caple C2234BK Specifications

General

Oven size	Medium
Oven type	Electric
Number of ovens	1
Reheat function	-
Shelves material	Chrome
Total oven power	2340 W
Number of shelves	1 shelves
Number of cooking programs	5
Total oven(s) interior capacity	67 L
Clock type	Electronic
Timer type	Digital
Timer modes	Timer
Wi-Fi controlled	No
Color name	Black Glass
Door hinge	down
Control type	Rotary, Touch
Product color	Black
Control position	Top front
Interior material	Enamel
Oven door opening	Drop down opening
Appliance placement	Built-in
Control panel material	Glass
Number of glass door panels	2
Current	13 A
Energy efficiency scale	A+++ to D
Energy consumption (conventional)	- kWh
Energy consumption (forced convection)	0.71 kWh
Lamps quantity	1 lamp(s)

Weight and Dimensions

Depth	546 mm
Width	600 mm
Height	595 mm
Weight	33300 g
Installation compartment depth	550 mm
Installation compartment width	560 mm
Installation compartment height	589 mm
