INSTALLATION

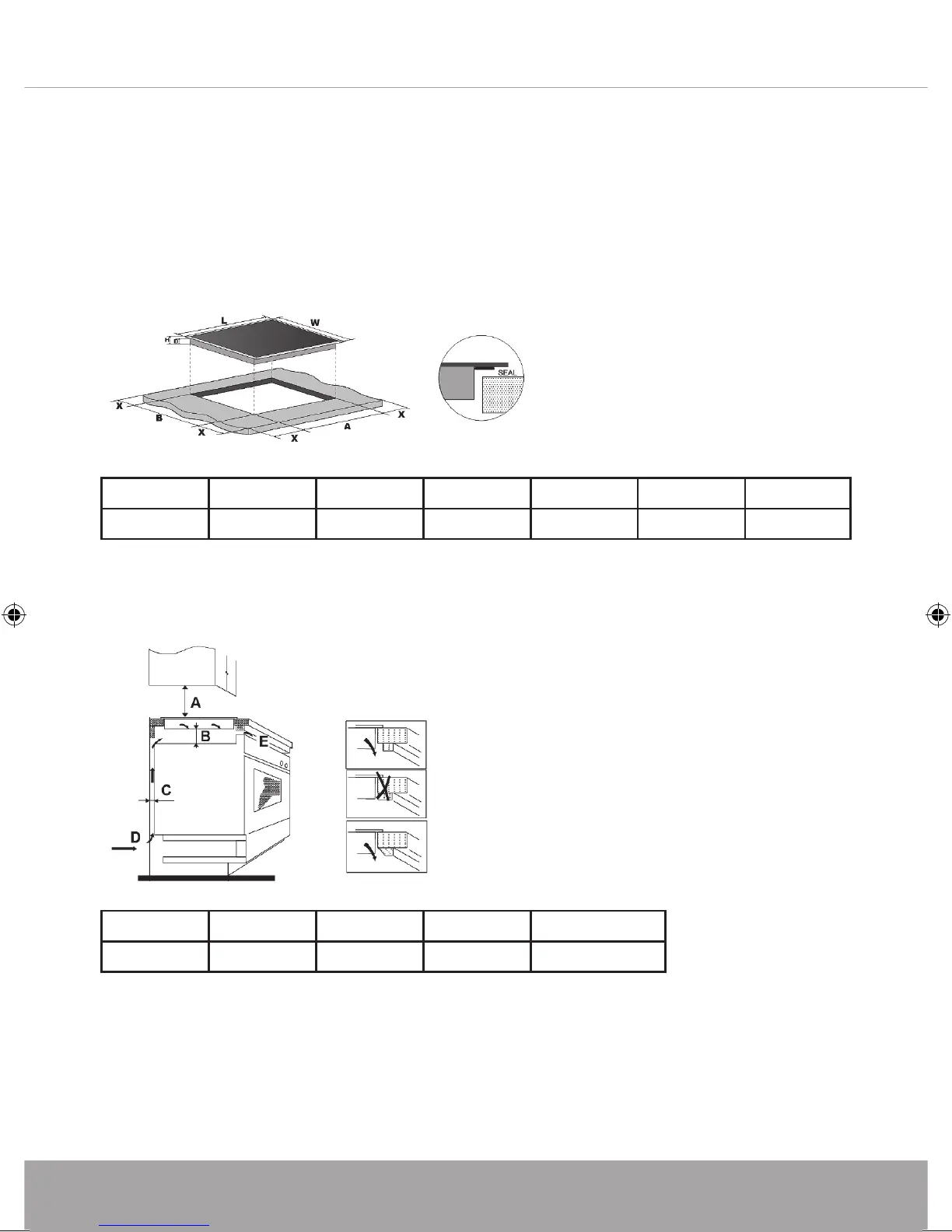

Cut out the work surface according to the sizes shown in the drawing. For the
purpose of installation and use, a minimum of 50mm space shall be left around the
hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-
resistant work surface material to avoid deformation caused by the heat radiation
from the hob. See below:
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 60 56 564 494 50
WARNING:
Always ensure the hob is well ventilated and the air inlet and outlet are not
blocked. Ensure the induction hob is in good working order. See below
A (mm) B (mm) C (mm) D E
760 50 20 Air intake Air exit (5mm)
NOTE:
The safety distance between the hob and the cupboard above should be at least
760mm.
