Instruction manual C894C 25
Please keep this instruction manual for future reference
INSTALLATION

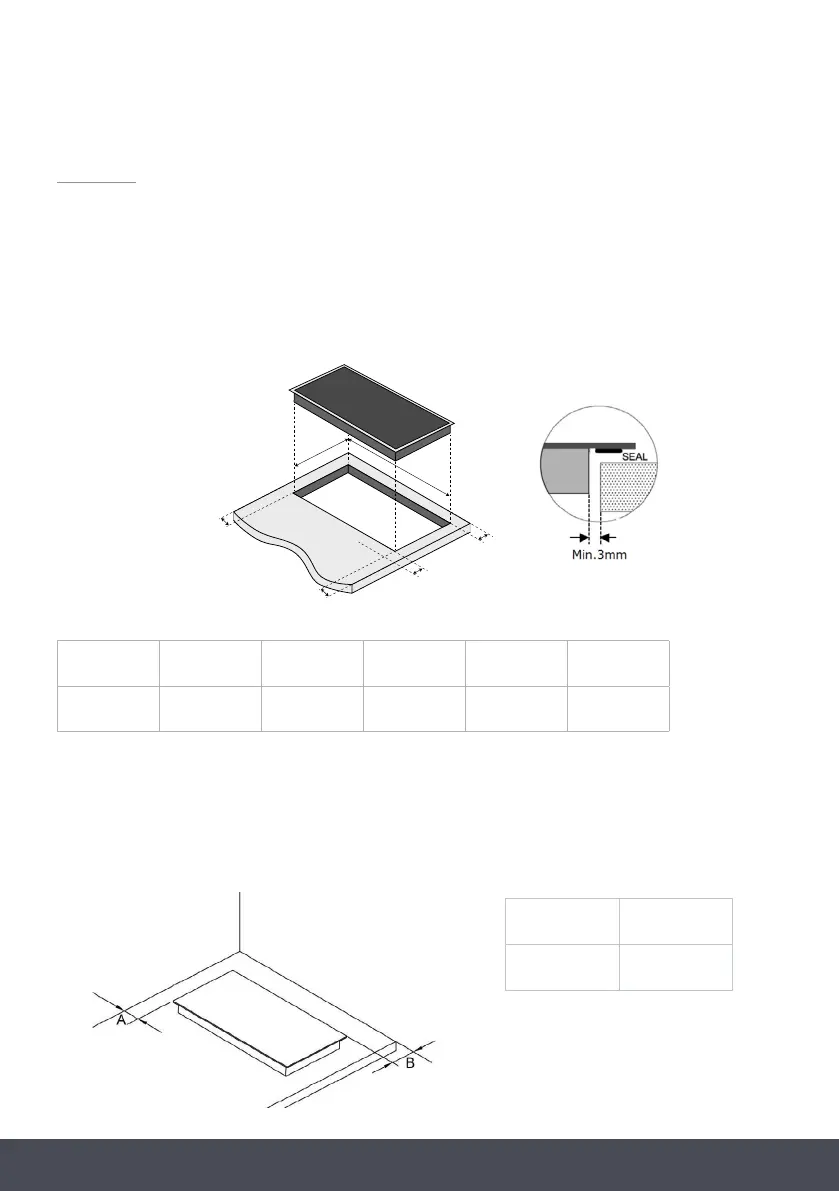

Cut out the work surface according to the sizes shown in the drawing. For the purpose of
installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the
thickness of the work surface is at least 30mm. Please select heat-resistant work surface material
to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:
A B C D E F
272mm 494mm 50mm min 50mm min 50mm min 50mm min
The ceramic hob can be used on the table top of cabinet. The ceramic hob should be placed
horizontally. As shown below:
A B
50mm min 50mm min
A
C
B
F
E
To Next Page
