Caple CR 9207 - Adjusting Minimum Flame for Top Burners

20
Adjusting of the minimum of
the top burners
In the minimum position the flame
must have a length of about 4 mm
and must remain lit even with a quick
turn from the maximum position to that
of minimum.
The flame adjustment is done in the
following way:
Auxiliary, semi-rapid and triple-
ring burners
– Light the burner
– Set the gas valve to
position
– Remove the knob

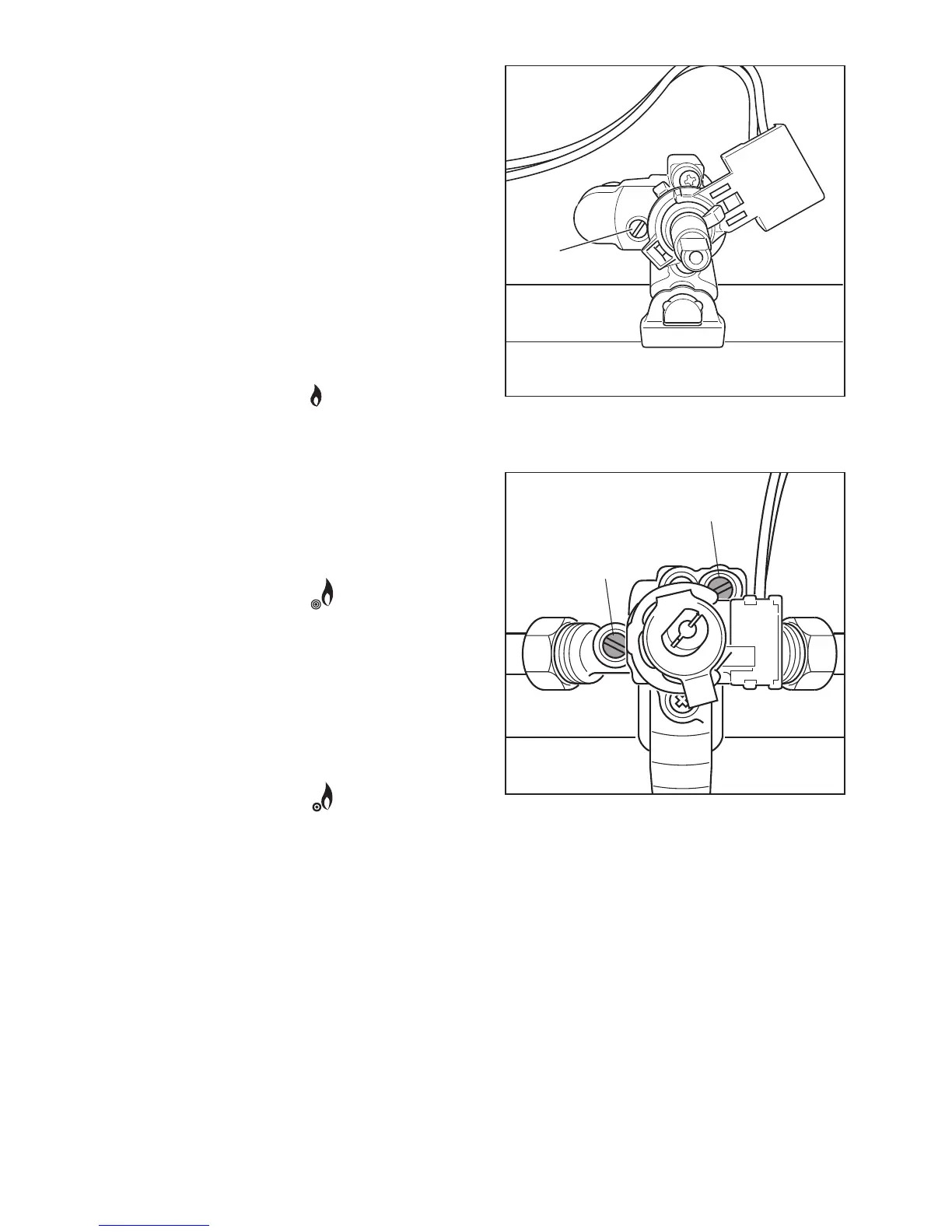

– Using a screwdriver turn the screw “F”
until the correct setting is obtained (fig.
3.5).
Inside crown of DUAL burner
– Light the DUAL burner
– Set the gas valve to
position
– Remove the knob
– Using a screwdriver turn the screw “H”
until the correct setting is obtained (fig.
3.6).
Outside crowns of DUAL burner
– Light the DUAL burner
– Set the gas valve to
position
– Remove the knob
– Using a screwdriver turn the screw “G”
until the correct setting is obtained (fig.
3.6).
Normally for LPG, tighten up the
regulation screw.
Fig. 3.6
G
H
F
Fig. 3.5
