Caple CR 9207 - Procedure for Removing the Oven Door

49
Fig. 8.13d
Fig. 8.13c
B
A
Fig. 8.13b
Fig. 8.13a
C
Fig. 8.13e

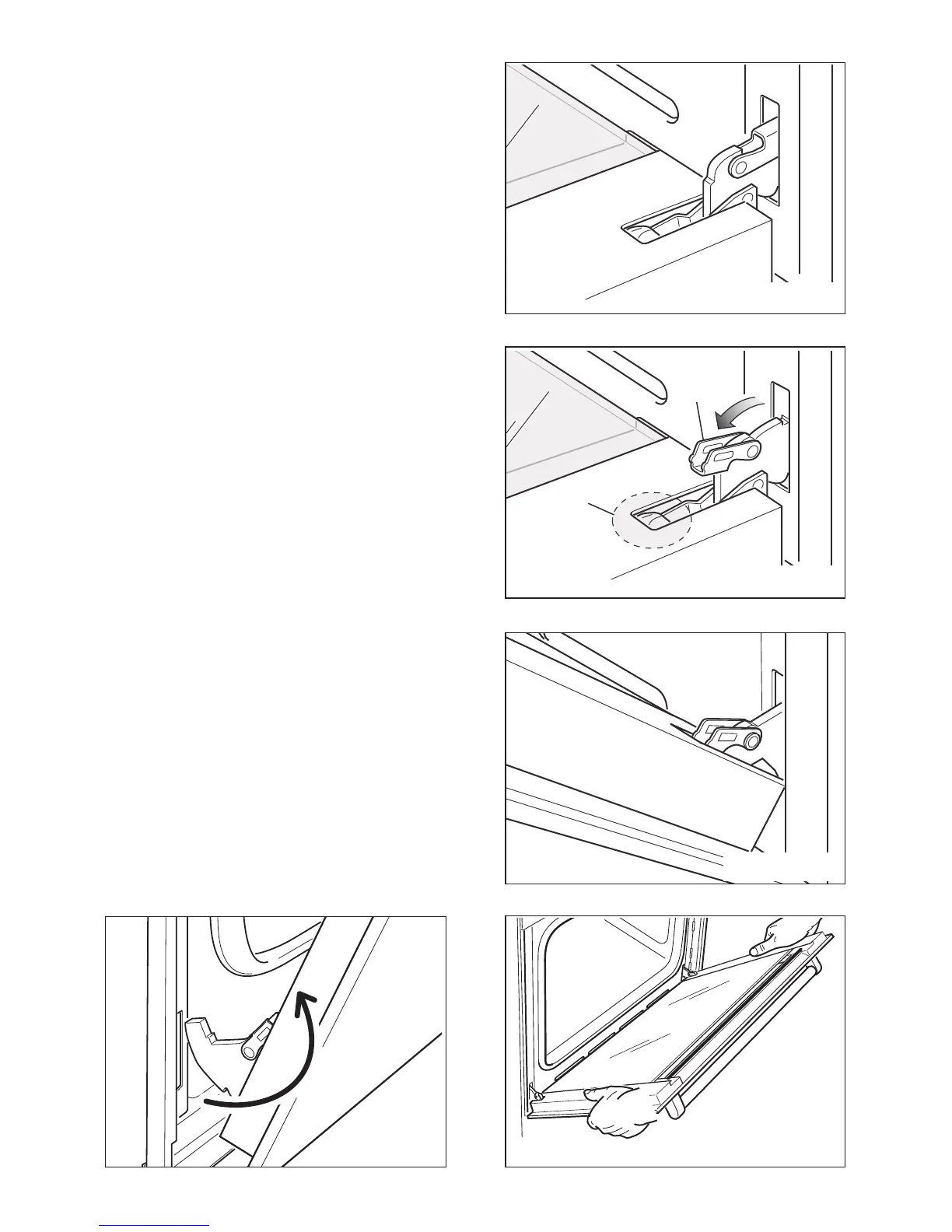

Removing the oven door
The oven door can easily be removed
as follows:
– Open the door to the full extent (fig.
8.13a).
– Open the lever “A” completely on the
left and right hinges (fig. 8.13b).
– Hold the door as shown in fig. 8.13d.
– Gently close the door (fig. 8.13c) until
left and right hinge levers “A” are
hooked to part “B” of the door (fig.
8.13b).
– Withdraw the hinge hooks from their
location following arrow “C” (fig.
8.13e).
– Rest the door on a soft surface.
