Instruction manual DD606BK
10
Please keep this instruction manual for future reference

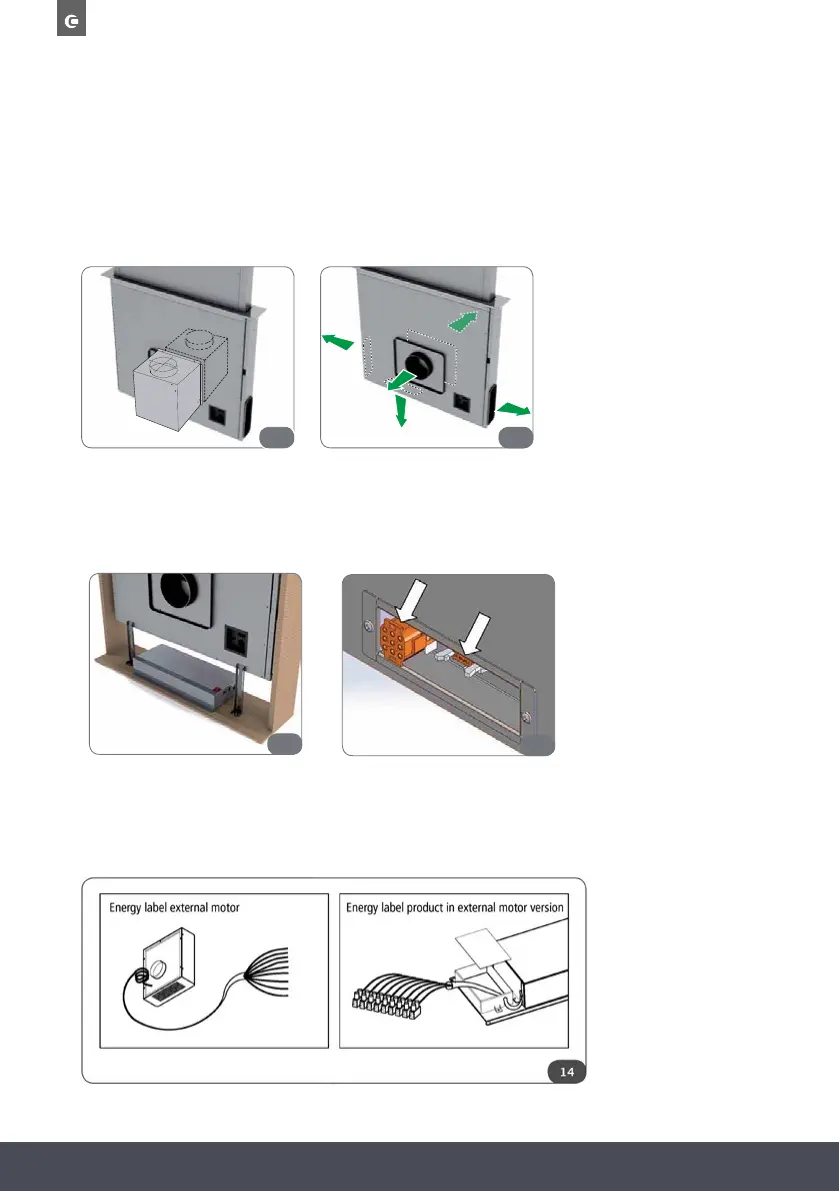

7. For versions using an external motor, place the external motor in a suitable area and fit the
exhaust air flue as illustrated. Then fit the air outlet ducts between the external motor and the
downdraft. Select an air outlet from the five possibilities (Fig. 8) and fit the union supplied
with the appliance.
8. Place the metal box containing the wiring in an easily accessible area to allow maintenance
interventions where necessary (Fig.9). Connect the connectors (9-pole connector) to control
the actuator and safety control and button pad connector (Fig. 10).
Connect the internal or external motor cable to the terminal board found inside the plastic box
on the downdraft wiring. When performing the electrical connection, take care to respect the
colours of the electrical wires and connect it correctly (Fig 14).
