Instruction manual DD606BK
8
Please keep this instruction manual for future reference
INSTALLING THE EXTRACTOR
1. Before carrying out the appliance installation, please check
that all components are not damaged, in such a case contact
your retailer and do not carry out any installation operation.

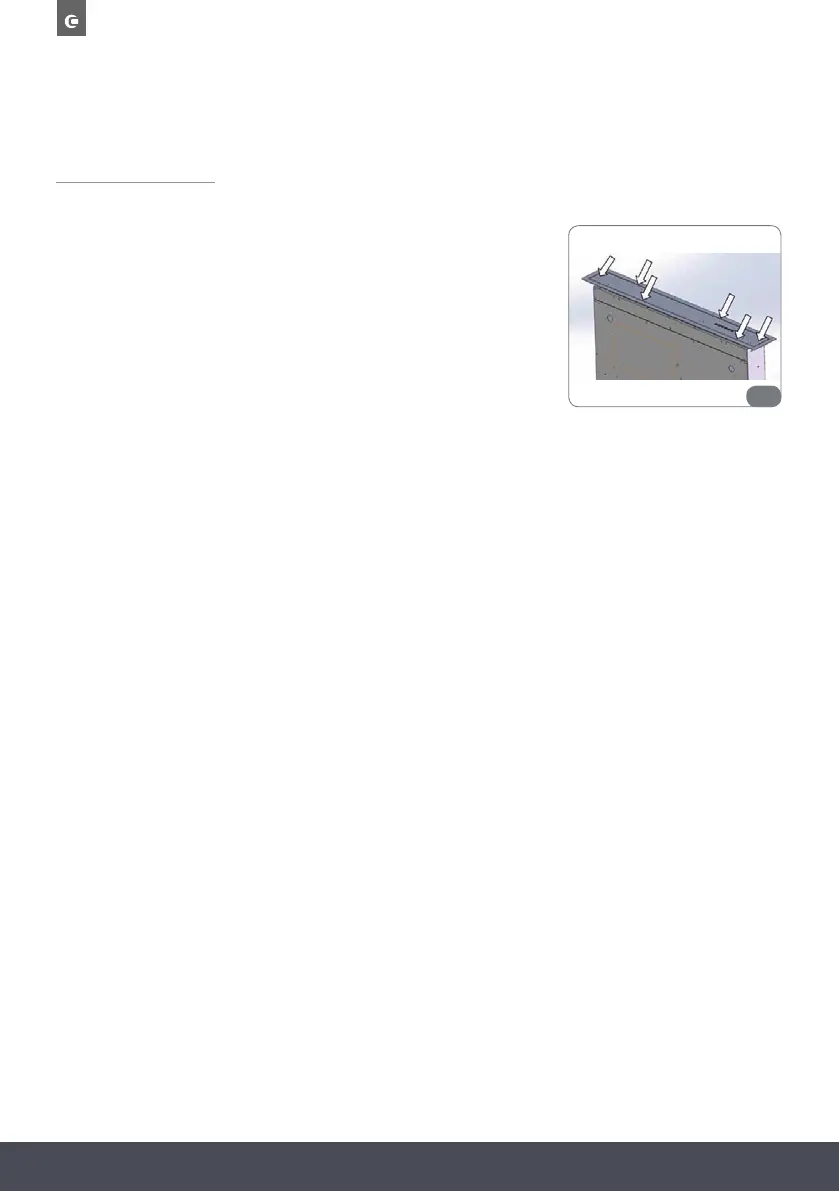

Before the installation of the Downdraft, please remove the
safety piece you can see in the picture (Fig.1).
Furthermore, please read carefully all of the following
installation instructions.
› Use an air exhausting pipe whose maximum length does not exceed 5 meters.
› Do not use flexible ducting.
› Limit the number of elbows in the piping, since each elbow reduces the air capacity of 1
linear meter.
(eg. if you use no. 2 x 90° elbows, the length of piping should not exceed 3 meters).
› Avoid abrupt direction changes.
› Use a 150mm constant diameter rigid ducting pipe for the whole length
(or equal surface area).
› Only use ducting approved by the standards in force.
The manufacturer shall not be deemed responsible for air capacity or noise problems caused by
failure to comply with the above instructions and no warranty on the product shall be provided.
2. Before making the hole, check that there are no structural or other parts inside the cabinet,
where the appliance is to be placed, which could hinder a proper installation. Check that the
dimensions of the Downdraft and the ones of the hob are compatible with the cabinet so that
the installation can be carried out properly.
3. Make a rectangular opening in the back part of the cook top (842x100mm for the 90cm
model and 542x100mm for the 60cm model).
1
