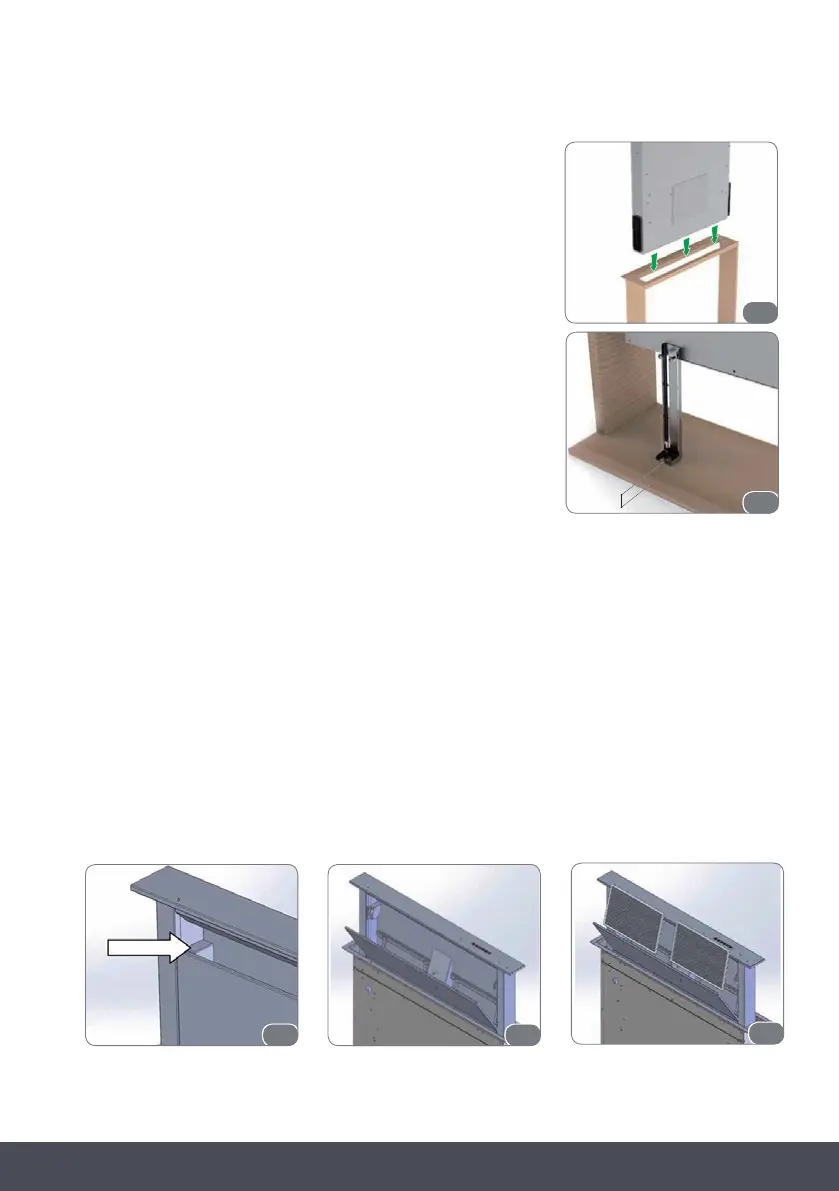

4. Put the Downdraft in the opening, inserting it from above as
shown in (Fig. 2).
5. Fix the downdraft inside the cabinet, using the special fixing
brackets supplied with the product (Fig. 3). Insert the brackets in
the lower side of the downdraft (Fig. 3), in such a way that there
is a 2mm distance between the lower side of bracket and the
bottom of the cabinet (Fig. 3).
This distance will allow the traction to be positioned downwards
of the product, at the moment of fixing, in order to have the
stainless steel trim perfectly adhering with the work surface.
Before inserting the screws, please make sure that the appliance
is perfectly perpendicular with the work surface.
6. Once the installation is complete and after connecting the appliance to the mains power, lift
up the downdraft and remove the door block (Fig. 4); then open the door (Fig. 5) and fit the
filters in place (Fig. 6). In the version of the Downdraft using the DDMEXT11, install the power
unit orienting the air outlet to the desired position, either downwards or upwards (Fig. 7). The
motor can be installed either on the front or rear side of the downdraft. After having installed
the motor, then connect the air ducts.
