3.6.2 Welding process segments in ELMA-QS mode

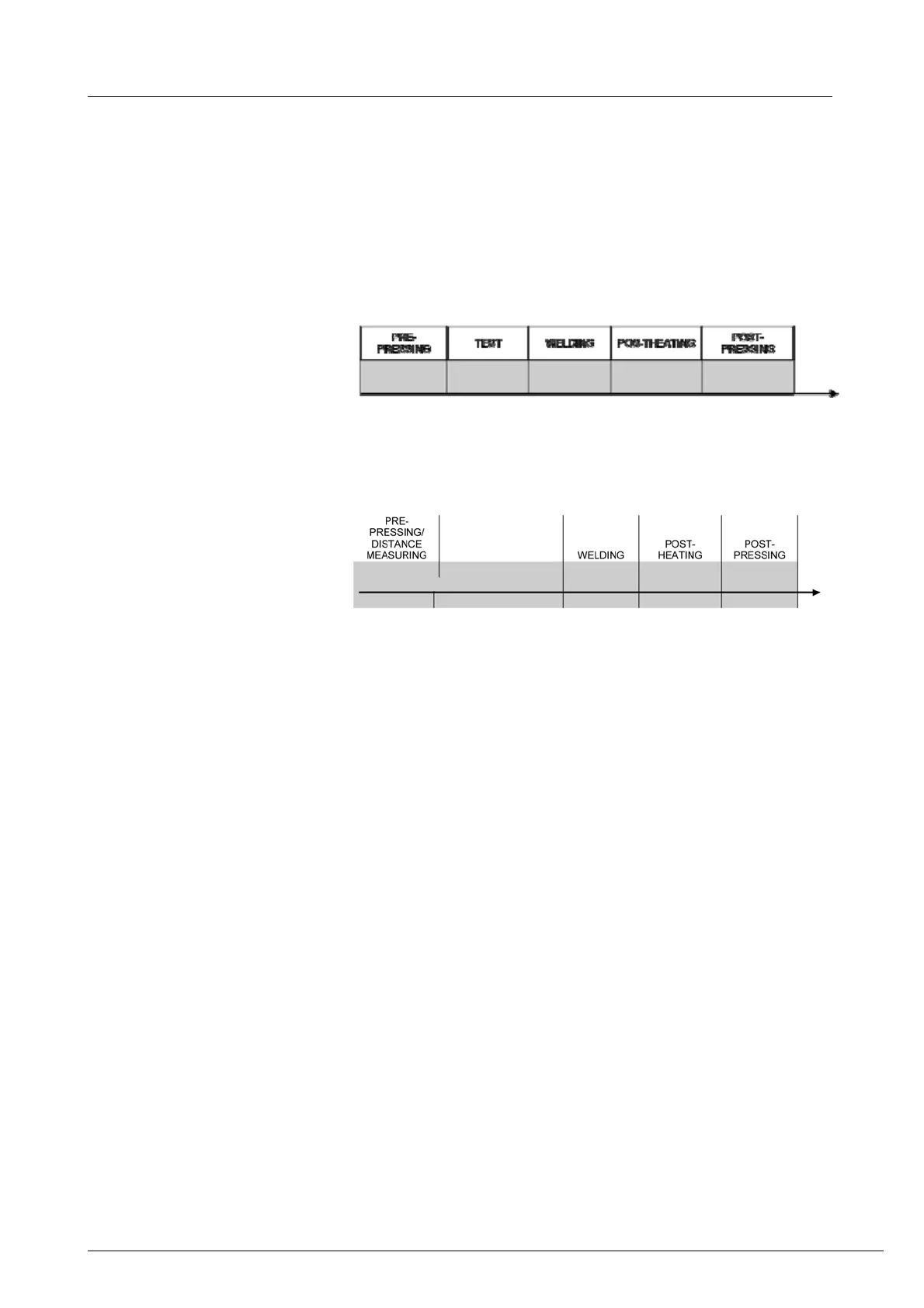

The welding process is divided into individual segments that are displayed
on the screen. The figure below shows their chronology during welding op-
eration.
3.6.3 Welding process segments in the "VISION" mode
Time (t)
TEST/
PRE PULSE
