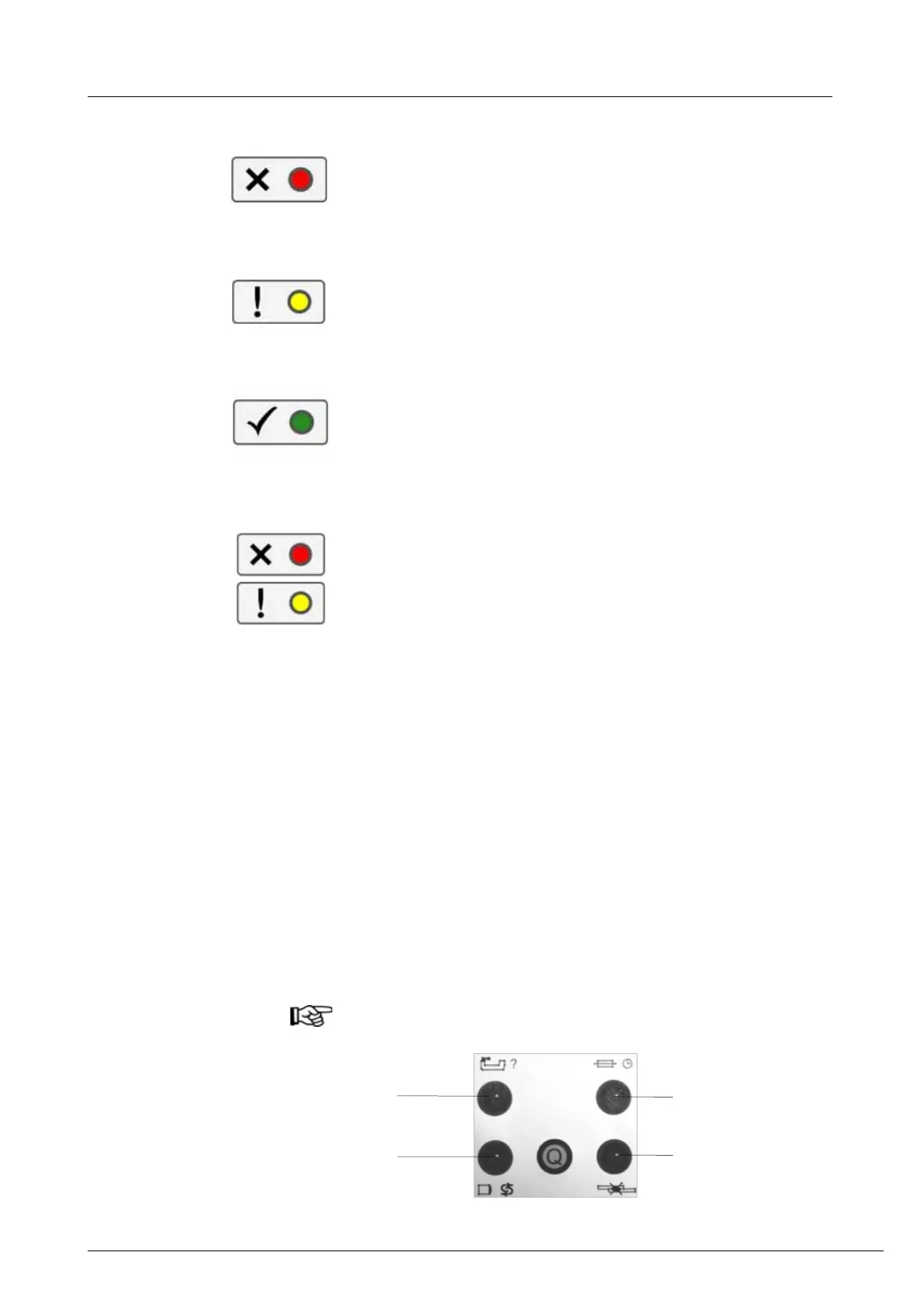

(8) QS-RED: Indicates that spot weld is faulty or not weldable, or faulty
current tong calibration or that the tong used is not suitable.
(9) QS-YELLOW: Indicates heating phase for preparing the spot weld or
warning limit for current tong calibration.
(10) QS-GREEN: Indicates that spot weld and/or current tong calibration
has been okay. Indicates alarm limit or current tong calibration error, if the
LED indicator QS-Yellow and/or QS-Red lights up, too.
QS-RED/YELLOW: Indicates that the spot weld is faulty, that there is a
problem of insulation, and that the welding operation has been interrupted
during the preheating phase.
1.1.6 USB- Device (11)
The USB- Device offers most simple data transfer between operator and ma-
chine. The data is downloaded on or uploaded from a USB- Stick.
See chapter 3.8 “USB drive” for information on use.
Additional control elements are located on the lower control panel of the
power source.
1.1.7 LED indicators (12-15) / Reset button Q
NOTE! Also being incorporated in the handle of the welding tong.
12
13
14
15
