POWER CONNECTION

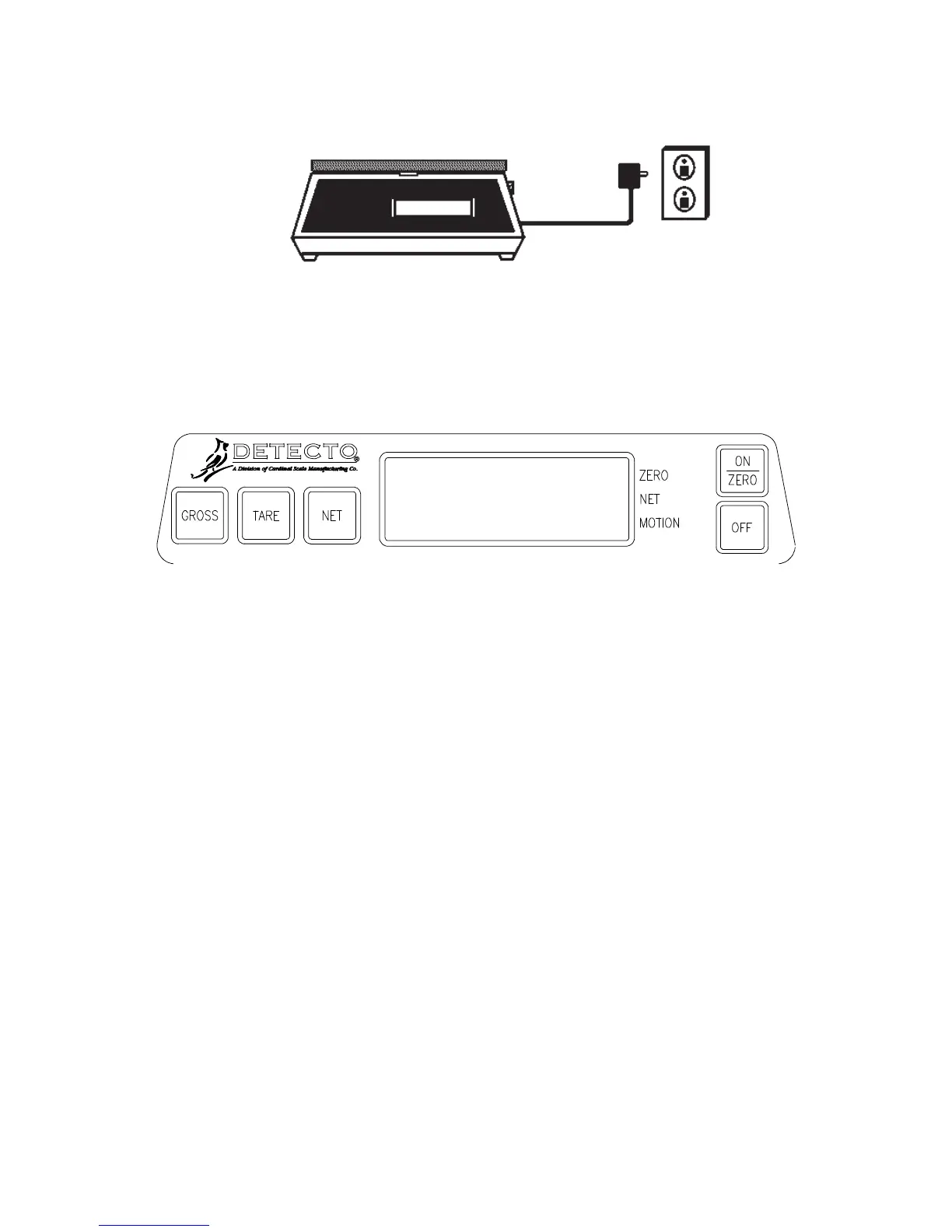

To apply power to your AP Series scale, connect the power cable's scale connector (round) into
the scale and then connect the power cable's electrical connector (square) into a 115V 50/60 Hz
outlet. Your scale is now ready for operation.
OPERATION
When applying power, make certain the scale platform is empty. Press and hold the ON/ZERO key
until one of the annunciators (ZERO, NET or MOTION) turn on. When one of the annunciators turn
on, release the ON/ZERO key. After a second or so the display should indicate a zero weight with
the ZERO annunciator turned on. Weighing may now begin. If the display does not indicate zero,
press the ON/ZERO key again to zero the weight display.
GROSS WEIGHT
The normal display mode for the AP scale is the gross weight mode where the display shows the
total weight on the scale platform. NOTE! In the gross weight mode, the NET annunciator is
turned off. If you are in the net display mode and wish to return to the gross weight display mode,
simply press the GROSS key.
TARE WEIGHT ENTRY
The AP scale has an automatic tare feature that allows you to enter tare weights up to the three
least significant digits of the scale capacity. This tare weight feature is often used to subtract the
empty container weight or other unwanted fixed weight values from the weight reading.
The following table lists the maximum tare weight allowed for each model of the AP scale.
Model Capacity Maximum Tare Weight
AP-4K 4000 gm x 1 gm 999 gm
AP-6 99.95 oz x .05 oz 9.95 oz
AP-8 8 lb x .002 lb .998 lb
AP-10 9.995 lb x.005 lb .995 lb
AP-20 20.01 lb x .01 lb 9.99 lb
