INDICATOR INSTALLATION

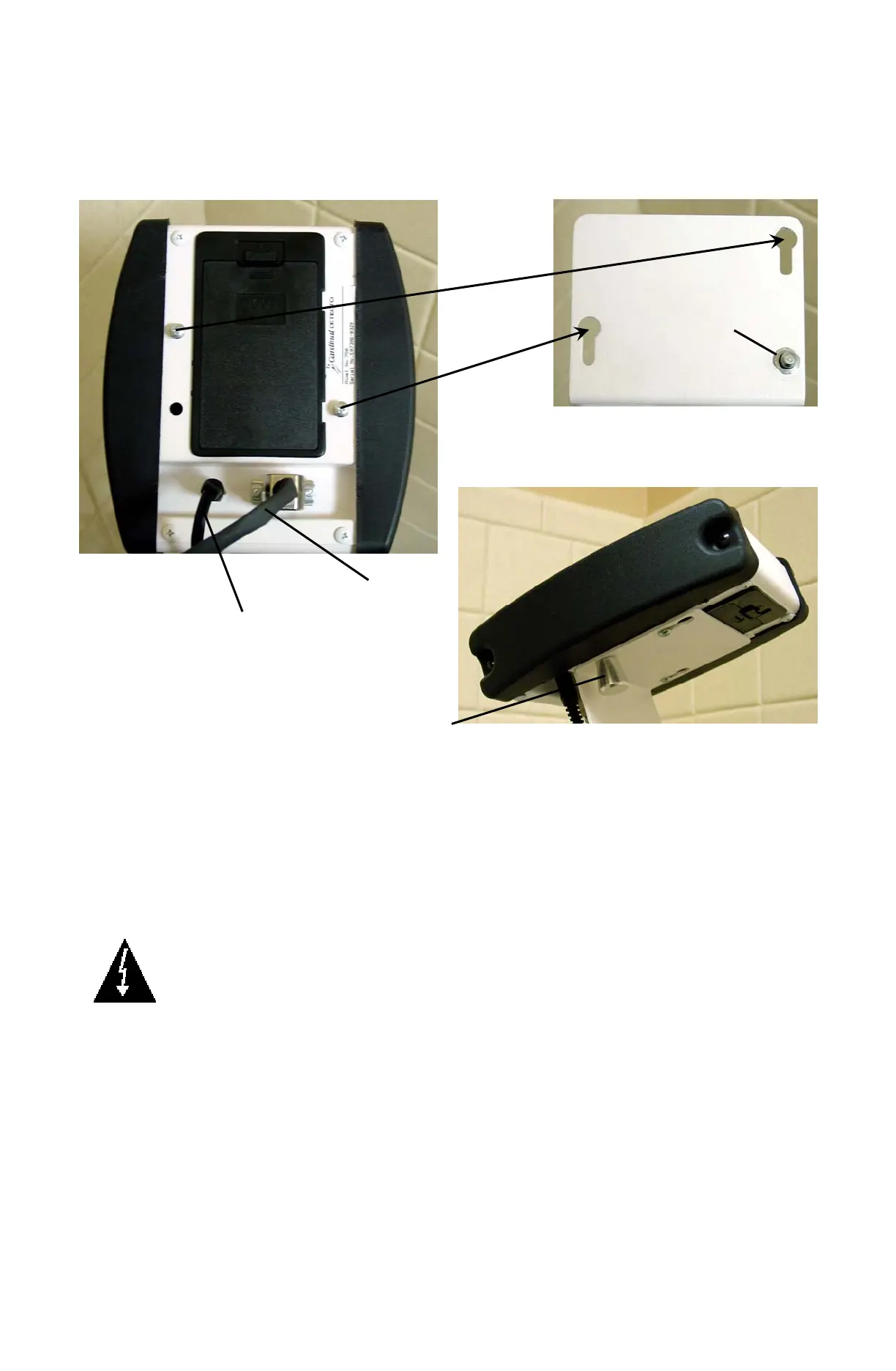

To install the indicator on the scale column bracket, place the screw heads on the back of the
indicator into the large end of the slotted holes in the bracket. Pull down to secure the
indicator. The spring plunger will lock the indicator to the bracket. See Figures No. 1, 2 and 3.
Batteries
The scale can be operated from 6 "AA" size Alkaline, Ni-Cad or NiMH batteries (not included).
You must first obtain and install batteries before operations can begin. Batteries are contained
in a battery holder inside the scale indicator. Access is via a removable panel on the back of
the indicator. When using batteries, all 6 batteries must be of the same type. They must be all
Alkaline, Ni-Cad or all NiMH. In addition, DO NOT mix Ni-Cad or NiMH batteries.
CAUTION! The scale indicator has internal circuitry that when used in conjunction
with the external power supply, recharges the Ni-Cad or NiMH batteries.
Because the indicator has this charging capability, DO NOT connect a power
supply to the indicator if using Alkaline batteries.
Optional AC Power Supply
To power the scale without batteries, connect the 12 VDC, 1 Amp power supply’s (Cardinal
part number 6800-1045) connector into the power jack on lower back of indicator and then
plug the power supply into the proper electrical outlet. See Figure 1. On models requiring 220
VAC, it is the customer’s responsibility to obtain the correct power adapter plug. The scale is
now ready for operation.
Spring
Plun
er
Scale
Cable
Power
Su
l
Figure No. 3
Figure No. 1
Figure No. 2
Spring
Plunger
Release
