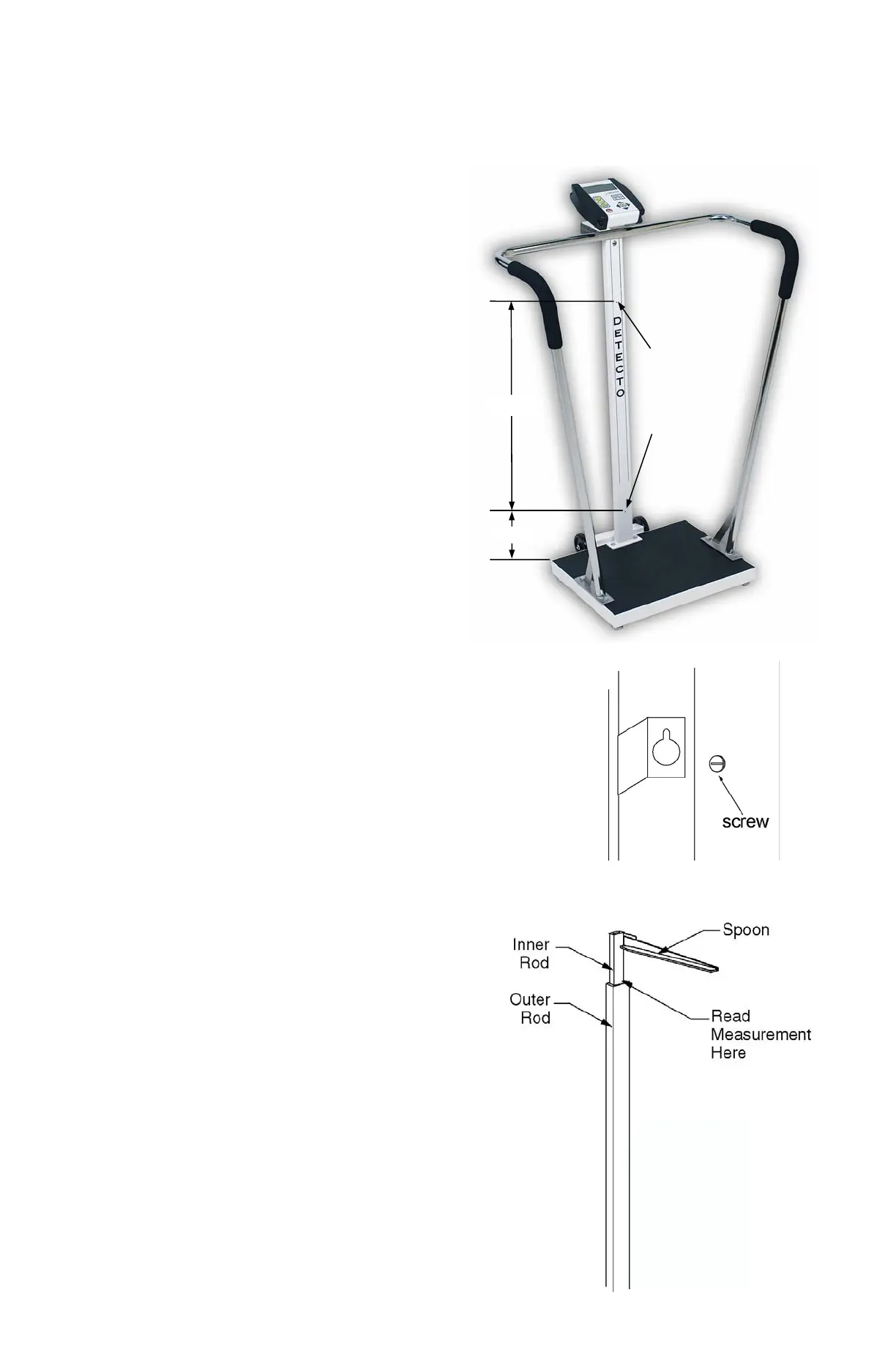

HEIGHT ROD INSTRUCTIONS
Height Rod Hole Location
• Please check Height Rod hole locations
before installing Height Rod.
• Some models may require holes to be
drilled.
• Please follow the measurements for
drilling holes if necessary.
• After holes have been drilled, please
follow installation instructions.
• Install the two (2) #10 x ½” hex head
screws from the hardware pack into the
column.
IMPORTANT!
Measure from top
of scale base.
Height Rod Installation Instructions
1. Remove Height Rod from shipping container.
Inspect the unit for signs of damage. Contact
our Customer Service Department if
necessary.
2. Loosen screws located on front of scale
column. Place height rod brackets over
screws and pull down; securing brackets.
Tighten screws as needed.
NOTE! The Indicator must be facing away from
the scale platform to install the height rod.
Height Rod Operation
1. Raise the inner rod of the telescoping column.
2. Lift up the spoon and lower the inner rod until
the spoon rests on the patient’s head.
CAUTION! Do not raise or lower Height Rod
by spoon tip!
3. Read the correct height measurement on the
inner rod at the top of the outer rod.
#29 (.136)
diameter holes,
1” from edge of
column to
center of hole
4
5/16
28
13/16
