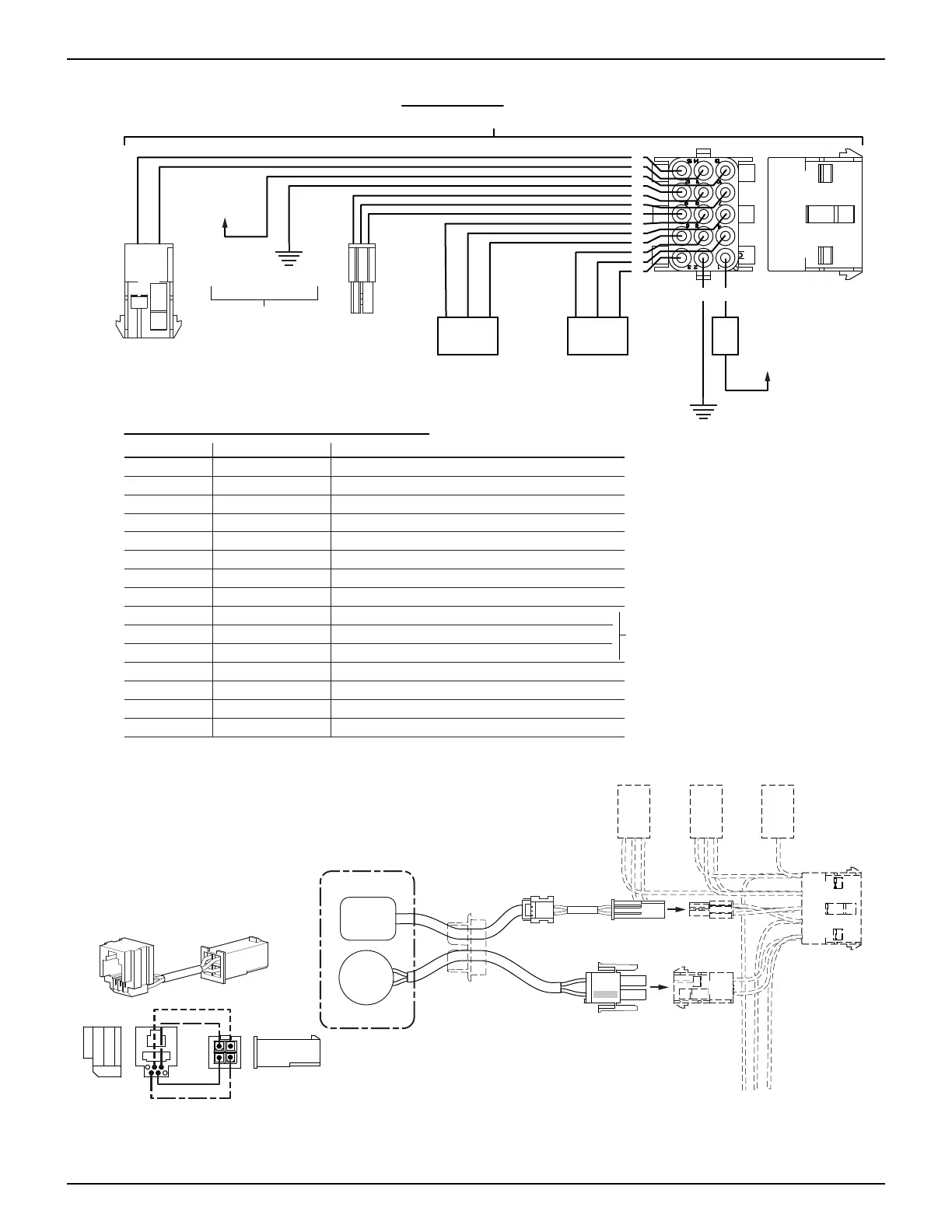

WIRING DIAGRAM - DIRECT RESPONSE W/ PRE WIRED HARNESS
30 052547-301r7
12
+12VDC
12VDC
Ground
Power ON/OFF
(OEM switch)
Patio Switch
(OEM switch)
Windspeed Switch
(OEM switch)
Red
Yellow
Green
Black (not used)
Ignition
Switched
+12VDC
12VDC
Ground
3
4
5
6
7
8
9
10
11
12
13
14
15
To C9
Motor
To C8
DR Sensor
From C6
Lock Out Sensor
Connector C1 Pin-Out - Carefree Harness
From To Description
C1 pin 1 C2 pin 2 +12VDC Power
C1 pin 2 C2 pin 1 12VDC Ground
C1 pin 3 C4 pin 1 Patio Switch, Input for Retract
C1 pin 4 C4 pin 2 Patio Switch, Common (DC Ground)
C1 pin 5 C4 pin 3 Patio Switch, Input for Extend
C1 pin 6 C5 pin 1 Wind Speed, Low
C1 pin 7 C5 pin 2 Wind Speed, Common (DC Ground)
C1 pin 8 C5 pin 3 Wind Speed, High
C1 pin 9 C15 “pin 4” Motion Sensor, Data Signal
C1 pin 10 C15 “pin 3” Motion Sensor, +12VDC power refer to Detail B
C1 pin 11 C15 “pin 2” Motion Sensor, Common (DC Ground)
C1 pin 12 C6 pin 1 Ignition Lockout, Signal Input 1
C1 pin 13 C6 pin 2 Ignition Lockout, Signal Input 2
C1 pin 14 C3 pin 2 Motor, A Input
C1 pin 15 C3 pin 1 Motor, B Input
OEM Harness (Simplified)
refer to OEM literature for specific harness configuration and details
DR031b
M
C9
C8
Sensor
Power ON/OFF (OEM switch)
Patio
(OEM switch)
Windspeed
(OEM switch)
Wall Plug
(ref)
pin 2 Black
pin 1 Red
Phone Cable Adaptor
DETAIL
A
