1.5 Humidistat and humidity probes
code description notes
UCHUMM0000 mechanical room humidistat 20 to 90% RH
Tab. 1.d
Room probes (humiDisk
65
only)
code description notes
ASWH100000 humidity room probe 10 to 90% RH
to be used only with electrical panels code
UCQ065D100 and UCQ065D200.
ASWC110000 room temperature-humidity probe
0 to 50 °C 10 to 90% RH
ASWC111000 room temperature (NTC res.) humidity probe
0 to 50 °C 10 to 90% RH
Tab. 1.e
Industrial environments (humiDisk
6
only
5
)
code description notes
ASPC110000 room temperature-humidity probe
0 to 50 °C 10 to 90% RH
to be used only with electrical panels code
UCQ065D100 and UCQ065D200
ASPC230000 room temperature-humidity probe
-10 to 70 °C 0 to 100% RH
Tab. 1.f
1.6 Accessores for humiDisk
65
code description notes
UCKH70W000 70 W heater only for UC0650D000
Tab. 1.c

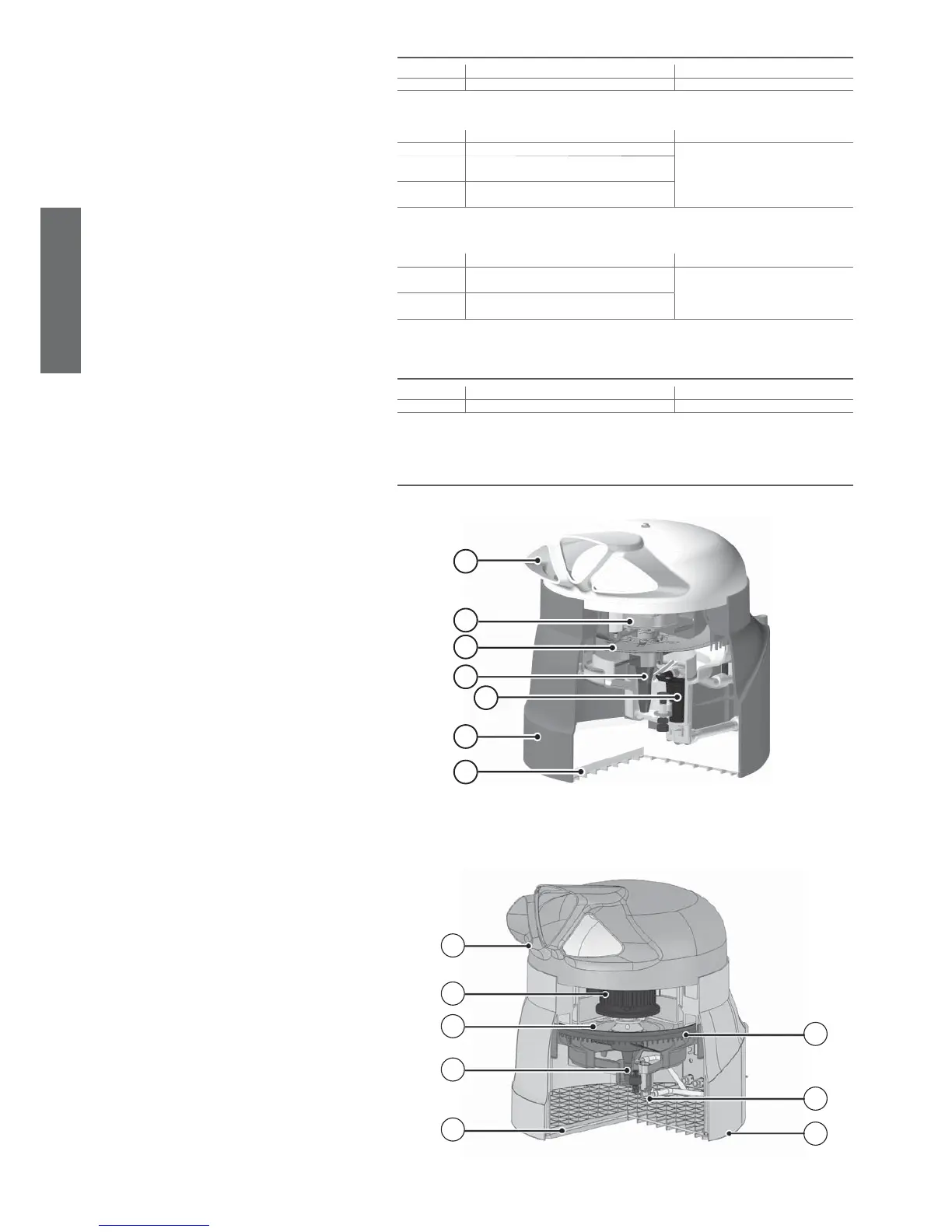

1.7 Description of the components
humiDisk
10
Key:
1. diffuser
2. motor
3. atomising disk
4. cone with fan
5. drain siphon
6. main body
7. air fi lter
Fig. 1.a
Fig. 1.b
humiDisk
65
Key:
1. air fi lter
2. drain siphon
3. cone with fan
4. motor
5. diffuser
6. toothed ring
7. atomising disk
8. main body
