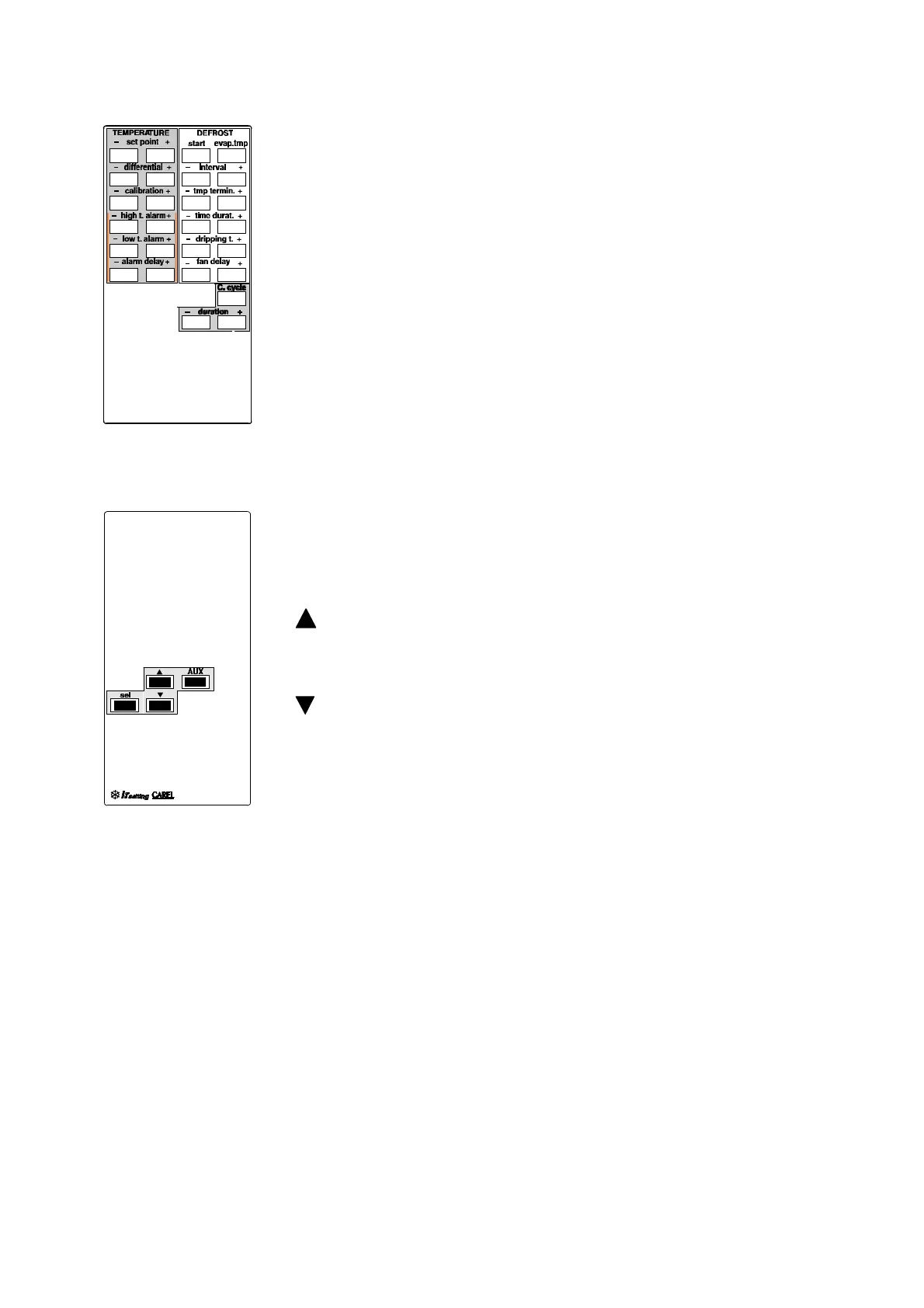

Buttons used to modify the main parameters (directly accessible buttons)

The most frequently used parameters are indicated on the remote control

unit. They are grouped in three light-grey zones:

• temperature parameters;

• defrost parameters;

• continuous cycle parameters.

For the correct use of the buttons see 'How to use the remote control unit'

below.

Buttons for the remote control of the IR instruments

The green zone of the remote control unit reproduces exactly the keypad of the

IR instruments and allows you to perform the same operations, as you would

perform if you were using the keypad.

Here are the main functions of the buttons:

SEL displays the value of the selected parameter;

1) goes to the next parameter;

2) increases the displayed data (parameters selection phase);

AUX activates/deactivates the auxiliary output;

1) goes to the previous parameter;

2) decreases the displayed value (parameters selection phase).

HOW TO USE THE REMOTE CONTROL UNIT

Access without code

1) How to enable the controller to receive the remote control unit transmission

• press the 'START' button to operate the remote control unit;

• the controller's LED indicator above the digits flashes and the first parameter - '/C' - is immediately

displayed.

2) Modifying the main parameters

• press either the + or - button relative to the parameter you want to modify. The display will show the

code of the selected parameter (see the codes of the parameters listed in the Instruction Sheet of the

instrument). Press the button again to display the value associated to the selected parameter and

• press + to increase it;

• press - to decrease it.
