Carel µC2 User Manual

16
2
1
3
5
4
6
7
8
9
10
11
12
13
2
2
1
1
1 1 1
1
1
2 2
2
2
2
3
4
5
6
7
8
9
10
8
9
10
11
12
12
14
15
13
E N G L I S H
µC
2
- +030220731 - rel. 1.2 - 26.10.2007

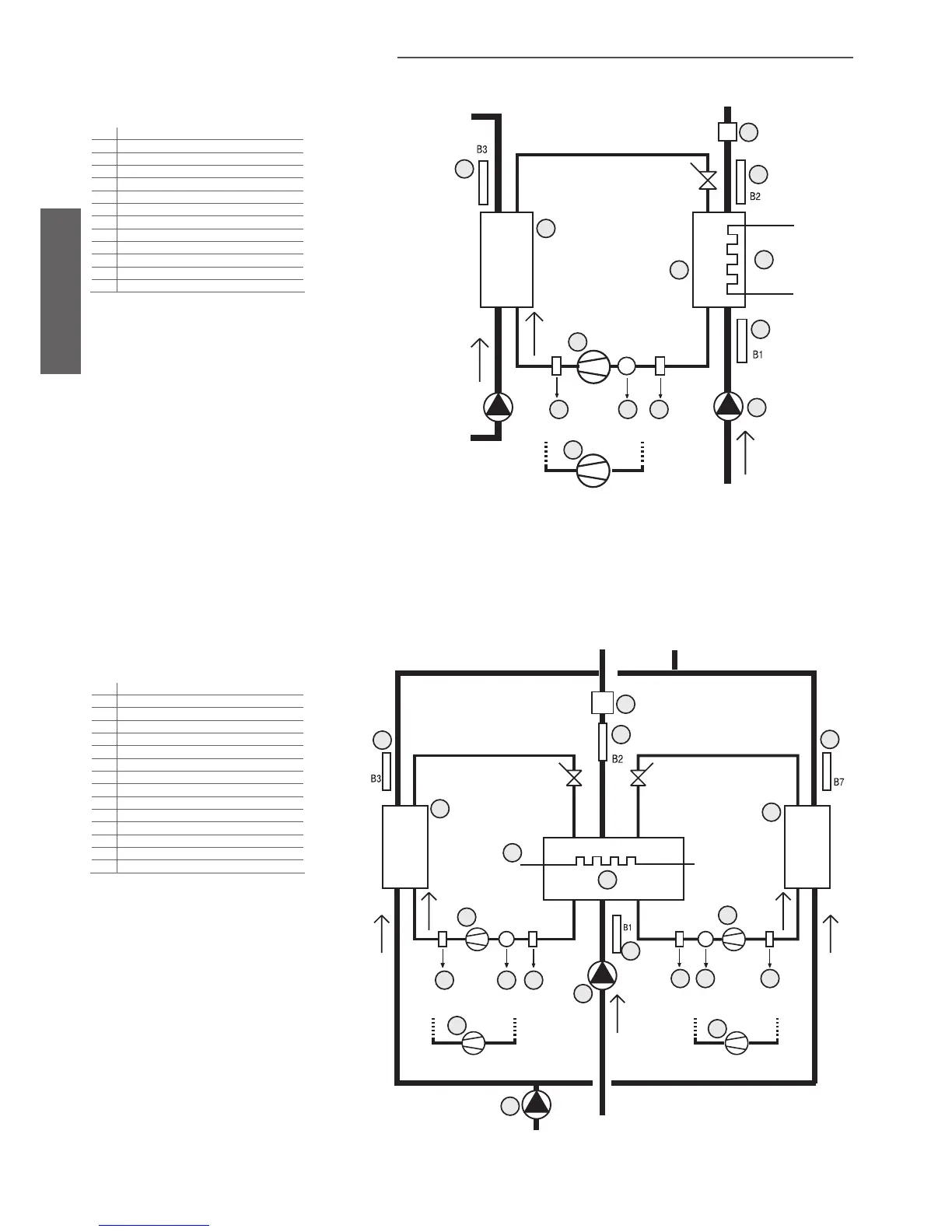

3.5 WATER/WATER chiller
3.5.1 Single circuit
Fig. 3.e.a
3.5.2 Two circuits
Fig. 3.e.b
Key:
1 water condensing temperature probe
2 condensator
3 flow switch
4 outlet evaporator probe
5 evaporator
6 antifreeze heater
7 inlet evaporator probe
8 compressor 1
9 high pressure
10 compressor overload
11 low pressure
12 water pump
13
compressor 2
Key:
1 water condensing temperature probe 1 and 2
2 condensator 1 and 2
3 flow switch
4 outlet evaporator probe
5 evaporator
6 antifreeze heater 1 and 2
7 compressor 1
8 high pressure 1 and 2
9 compressor overload 1 and 2
10 low pressure 1 and 2
11 inlet evaporator probe
12 water pump
13
compressor 2
14 compressor 3
15 compressor 4
