µchiller +0300053EN rel. 2.2 - 14.12.2021
Initial con guration
3.2.6 Applica: copy con guration
Applica includes a “Clone” feature to acquire the confi guration from one unit and replicate it “one-for-one” to other units.
Procedure:
1. open Applica on the mobile device;
2. access the controller via NFC or Bluetooth, using the “Service” or “Manufacturer” profi le credentials;
3. follow the path “Confi gurations/Clone”;
4. enter a name to describe the confi guration being saved;
5. with an NFC connection: move the device bear to the display terminal on the Chiller that the confi guration is being copied
from; once the message shows the confi guration has been acquired, this is saved to the smartphone’s memory, available via
icon 2 (see the following fi gure);
6. select the saved confi guration; (with an NFC connection) move the device near to the display terminal on the Chiller that
the same confi guration is being applied to;
7. confi rm and wait for the confi rmation message.
Notice: with a Bluetooth connection the confi guration is saved/applied on confi rmation.

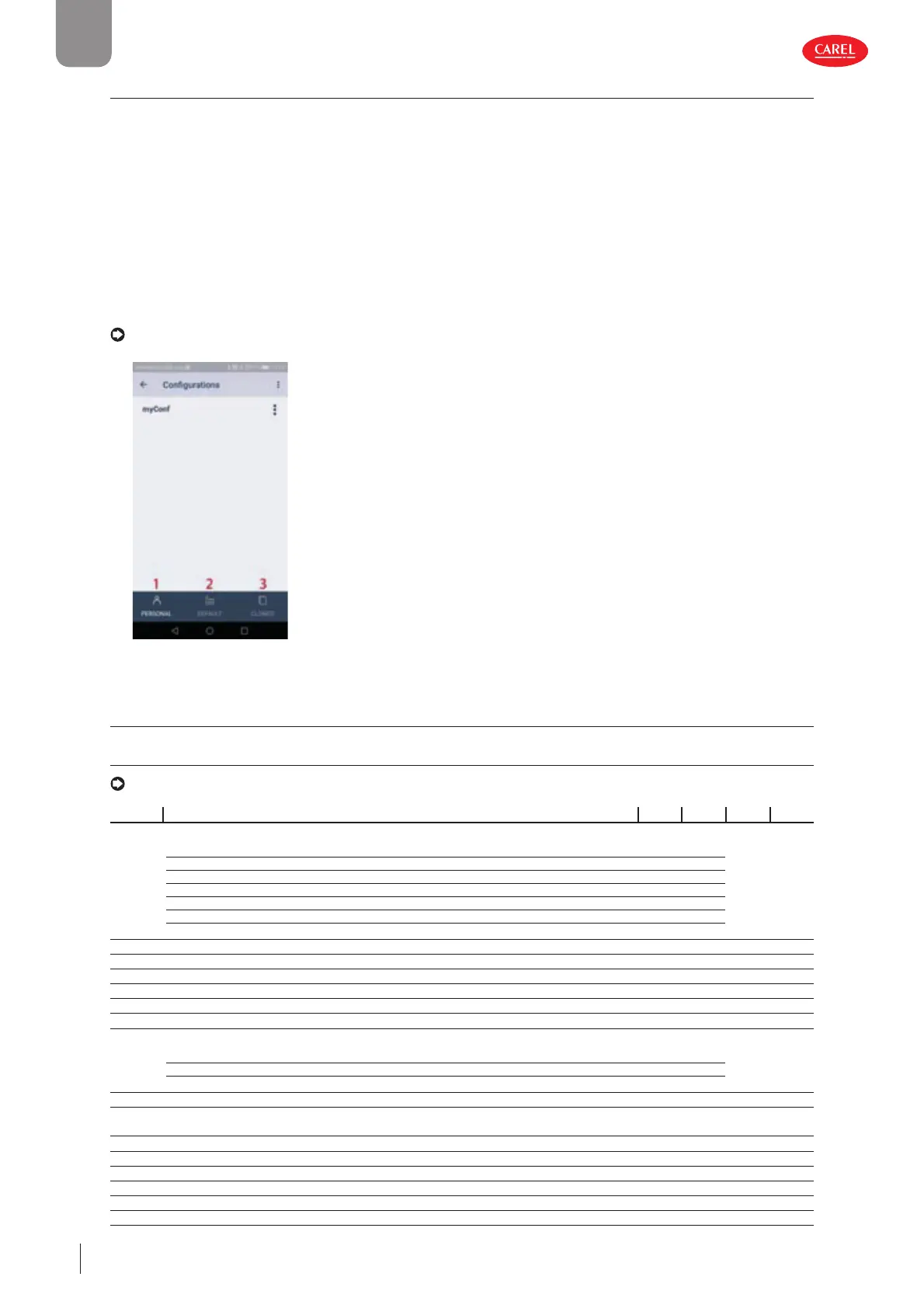

With reference to the previous fi gure, tapping the icon:
1. accesses the confi gurations saved by the user;
2. accesses the confi gurations prepared by Carel;
3. accesses the saved clones.
3.3 Unit set-up parameter list
3.3.1 Unit parameters
Notice: follow the order shown in the table to confi gure the Unit set-up parameters.
Par. Description Def. Min. Max. UOM
U077 Type of unit
0=CH;
1=HP;
2=CH/HP:
3=Cooling-only condensing unit;
4=Reverse-cycle condensing unit;
5=Cooling-only air/air;
6=Reverse-cycle air/air/air;
006-
S068 Source type (0=Air, 1=Water) 001-
U076 Number of system pumps 1 1 2 -
C046 No. of unit circuits 1 1 2 -
C047 Type of compressors used (0=1 On/Off ; 1=2 On/Off ; 2=1 BLDC; 3=1 BLDC+On/Off ) 0 0 1/3 -
S065 Type of source fan (0/1=Modulating/ON-OFF) 0 0 1 -
S064 Type of source air circuit (0=Independent; 1=Common) 0 0 1 -
S072 Source pump activation
0=always on
1=On with compressors on
2=control on condensing temperature
001-
E047 ExV driver (0=Disabled; 1=Built-in; 2=EVD Evolution) 0 0 2 -
E046 EVD Evolution: valve (1=CAREL ExV, ...) (*)
(*) see EVD Evolution manual for the complete list of selectable valves
1 1 24 -
E020 MOP in cooling: threshold 30.0 -60.0 200.0 °C
E022 MOP in heating: threshold 20.0 -60.0 200.0 °C
C017 Max high pressure threshold (HP) 65.0 0.0 999.9 °C
C018 Min low pressure threshold (LP) 0.2 -99.9 99.9 bar
U068 Free cooling: enable (0/1=no/yes) 0 0 1 -
U074 Free cooling type (0=Air; 1=Remote coil; 2=Water) 0 0 2 -
