EN
Carriage Installation

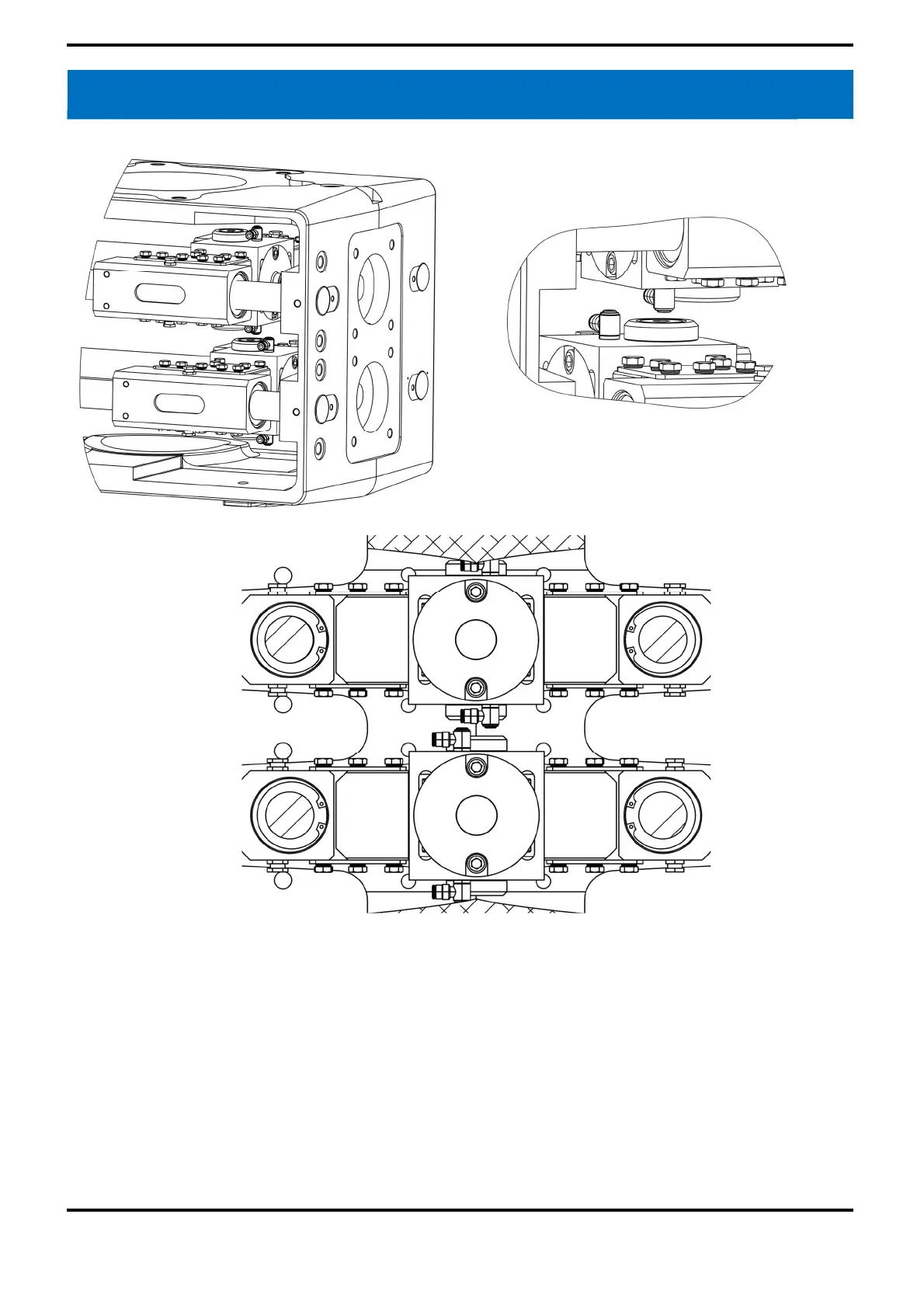

When installing carriages into mechanical section ensure upper and lower carriages are
inverted. This is to ensure adequate room surrounding grease elbows. See above images
as reference.
To remove carriage for maintenance, remove linear rods (193449) from mechanical
section. Turn one carriage end 90°, slide and rotate out of front or rear of pump drive
unit. The cam shaft assembly may need to be rotated to give extra room.
77-3330 R1.3 20/36 www.carlisleft.com
