BT2 user manual - H-5911-9004-02-B Page | 119
hole collar back along the cable to the next measurement point, i.e. the next interval / nodule / rod joint to which you
would deploy if the hole were longer. Enter this value into the Final Offset field. This value is deducted from the
last reading’s full segment length.
15.8.2 Undo
Tap Undo to return to the deployment. This may be required if you accidently tapped Final Reading during a
deployment.
15.8.3 Finish
When the Final Offset is entered, tap Finish to complete the deployment.
15.9 Next Deployment controls
The Next Deployment controls appear when a deployment is completed.
15.9.1 Select Next Deployment
Select the next hole to survey. By default, the listed hole is the next hole sequentially within the project. To select a
different hole, use the Select Next Deployment drop-down list to select the required hole.
Use the Next and Previous arrows to progress to an adjacent hole or select a hole from the drop-down list.
15.9.2 Deploy to…
To begin the deployment to the selected hole, tap Deploy to…
15.9.3 Next Hole
While you are between holes, consider carrying out a new alignment of the gyro. See section 15.4.4.

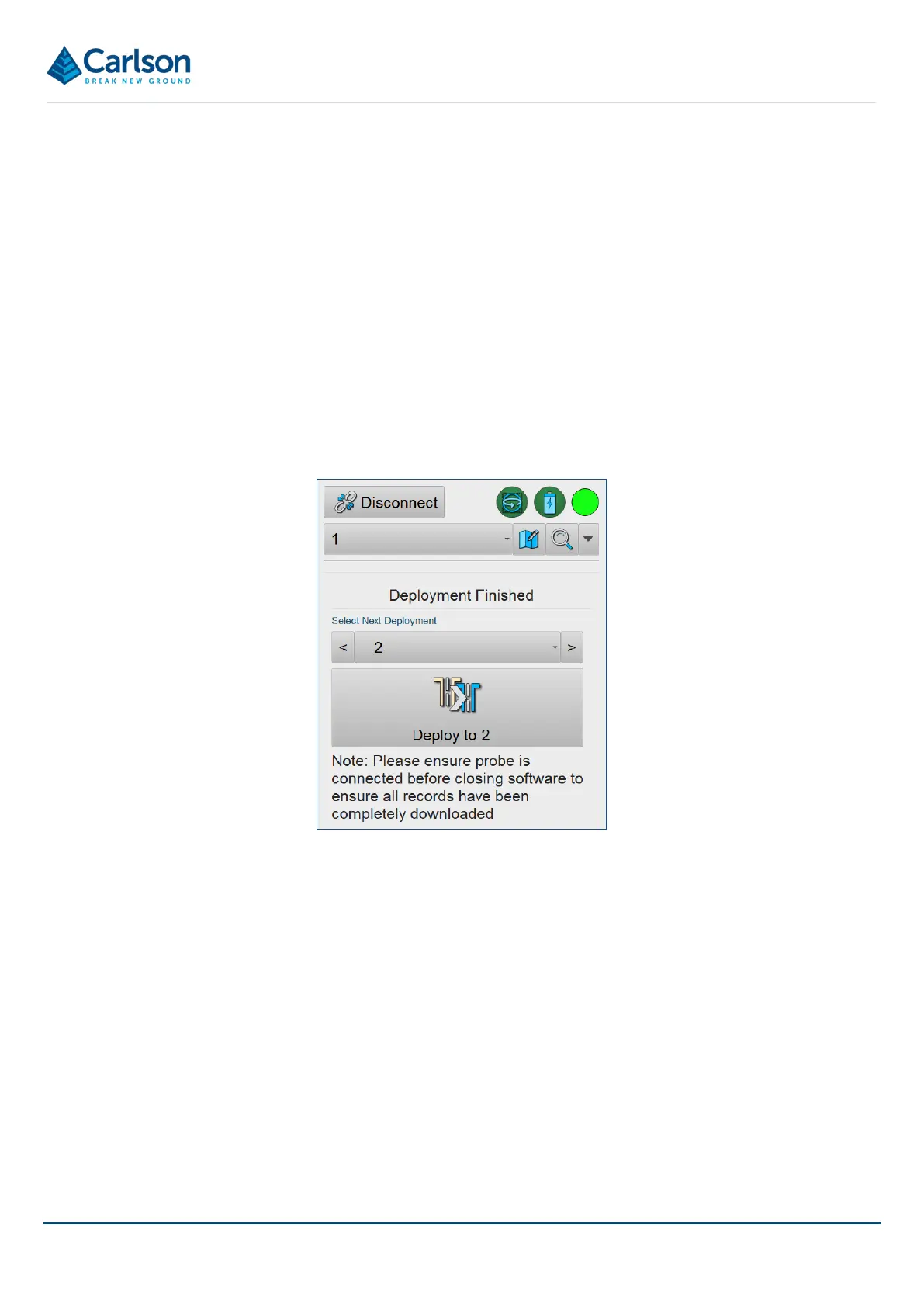

Figure 135 Next Deployment controls
