BT2 user manual - H-5911-9004-02-B Page | 108
15 Control tab
The Control tab provides direct control of the connected Boretrak2 probe. This section outlines the Control tab
functions and layout when aBoretrak2 is connected and a deployment is being prepared or is in progress.
15.1 Connection to a Boretrak2
15.1.1 Autodetect routine
Carlson Boretrak has an autodetect routine to establish if there are any Boretrak2 probes visible to the tablet’s
Bluetooth. Any probe which is powered on and paired with the tablet is detected.
The autodetect routine can be started automatically by tapping New from the Touch mode Home screen.
Alternatively, if you open an existing project and want to connect to a Boretrak2 probe, tap the Find Boretraks
button in the Control tab to initiate the autodetect routine.
The Find Boretraks button is present on the Control tab in the following situations:
• If you have opened Carlson Boretrak in Desktop mode. Click New to start a new project. Enter any
required details in the Project Details window and tap Accept.
• If you have opened an existing project and are viewing data without a connection to a scanner.
• If you are in an existing project and have lost connection with a scanner or have tapped the Disconnect
Device button.
Once the autodetect routine has been initiated, Carlson Boretrak searches through all available Bluetooth
connections for any Boretrak2 probe which has been paired with the tablet.
If no connection is made, check:
• The Boretrak2 probe is powered ON and flashing red or blue.
• The Boretrak2 is paired to your device.
• Bluetooth is switched ON on your device.
• No other devices are connected to the same Boretrak2 probe.
Tap Find Boretraks to reattempt a connection.

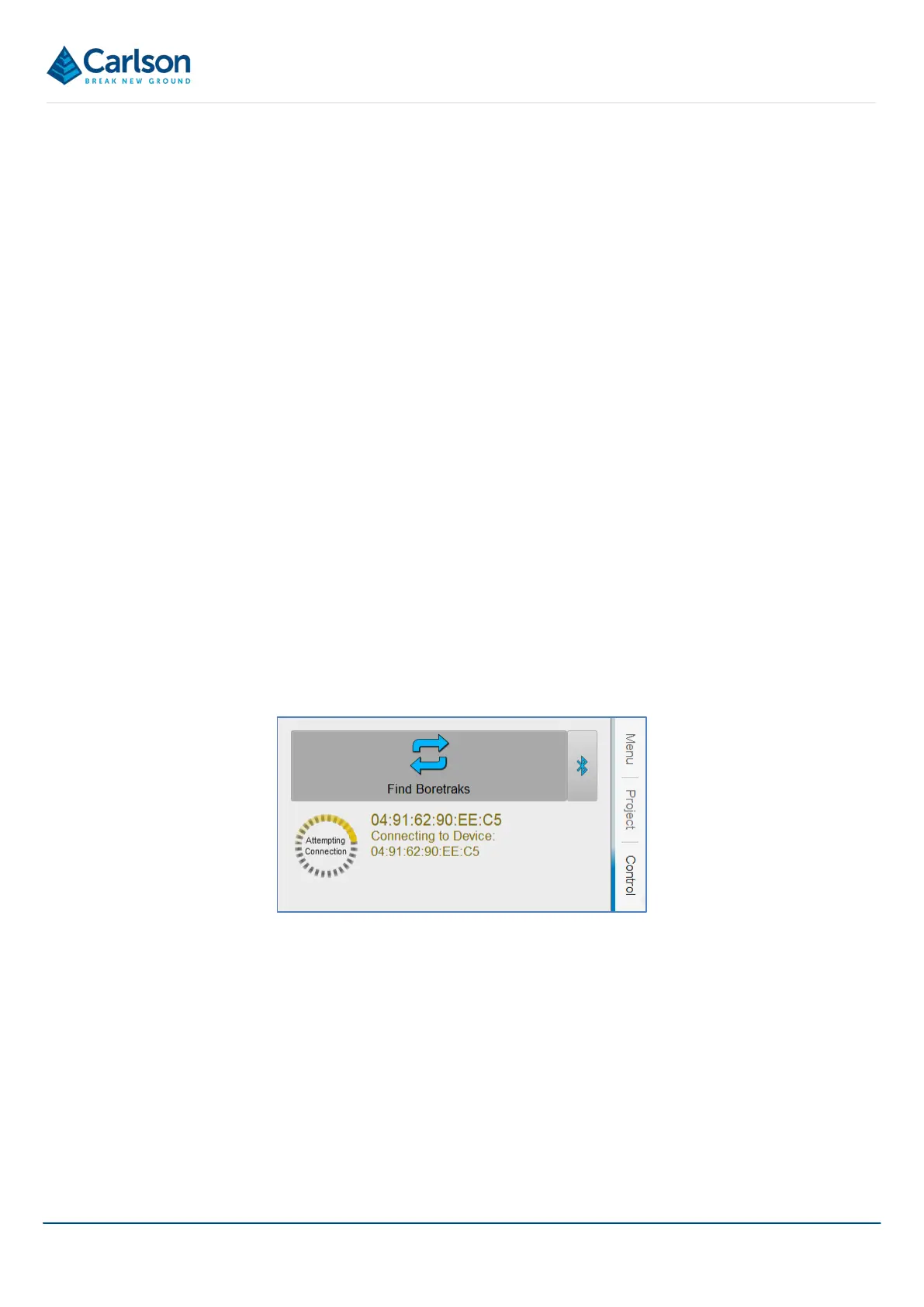

Figure 116 Auto connection in progress
