• Plan View: shows a plan view of the deployment against a radial plot centred on the hole collar.
o Select Top-Down from the Target drop down list to view a standard plan view.
o Select Hole Incline to view the hole along a line drawn between the start and end points of the
survey.
• Front View: shows a view from the perspective of the heading of the planned hole – ie the planned hole is
heading directly towards the screen. The axes are centred on the hole collar position.
• Side View: shows a view from a perspective perpendicular to that of the Front View.

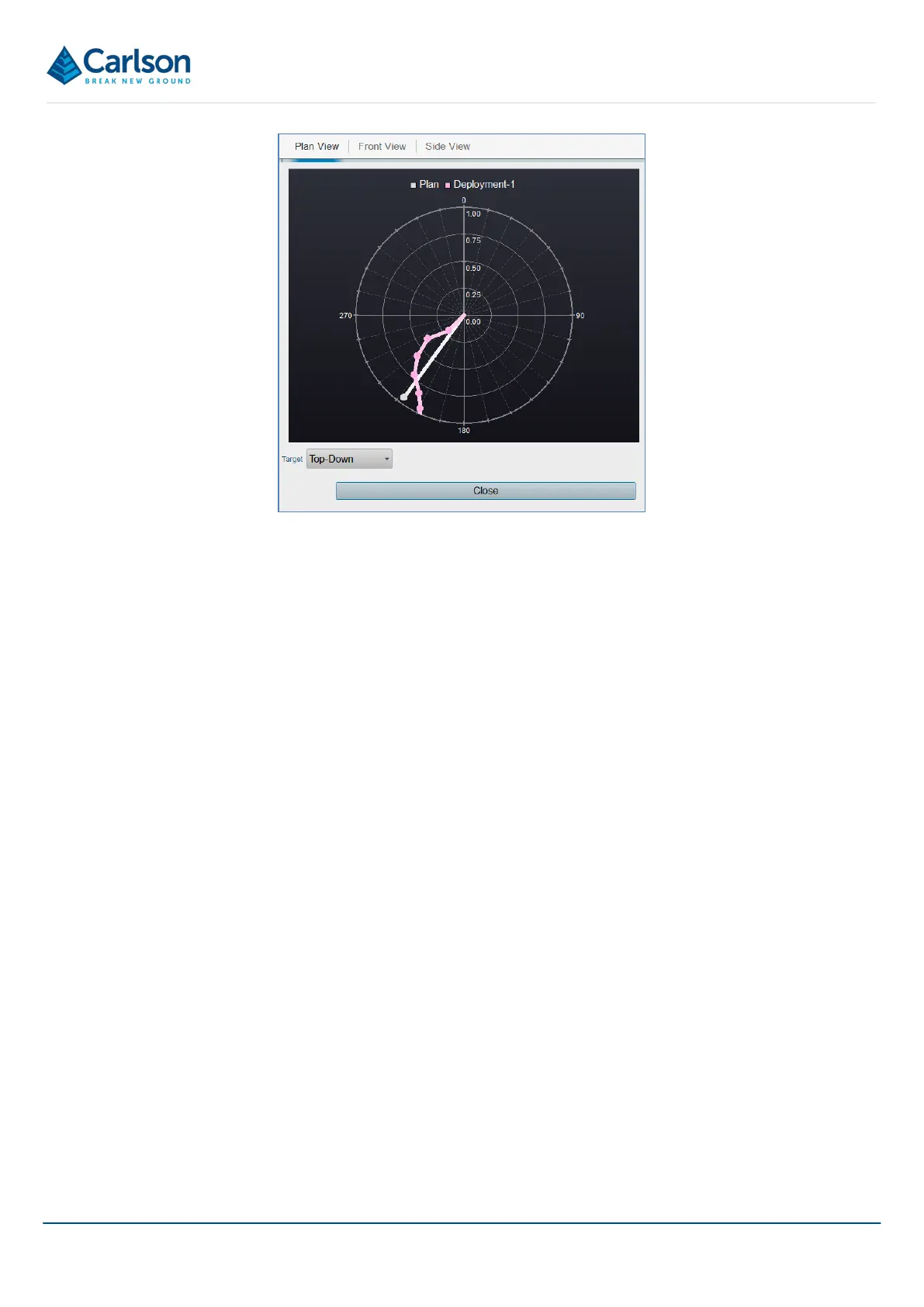

Figure 115 2D Views
