5.9 Data analysis and deliverables
To view the details of a deployment, go to the Project tab, tap on a specific Deployment and tap the Deployment
Details button.
The Deployment Details window appears. A table shows details of each reading taken in the selected hole,
including the deviation from the planned hole at each deployment depth.
On the right, 2D plots show the surveyed hole against the planned hole.
From the Menu tab, tap Reports to generate PDF reports of deployments in the project.

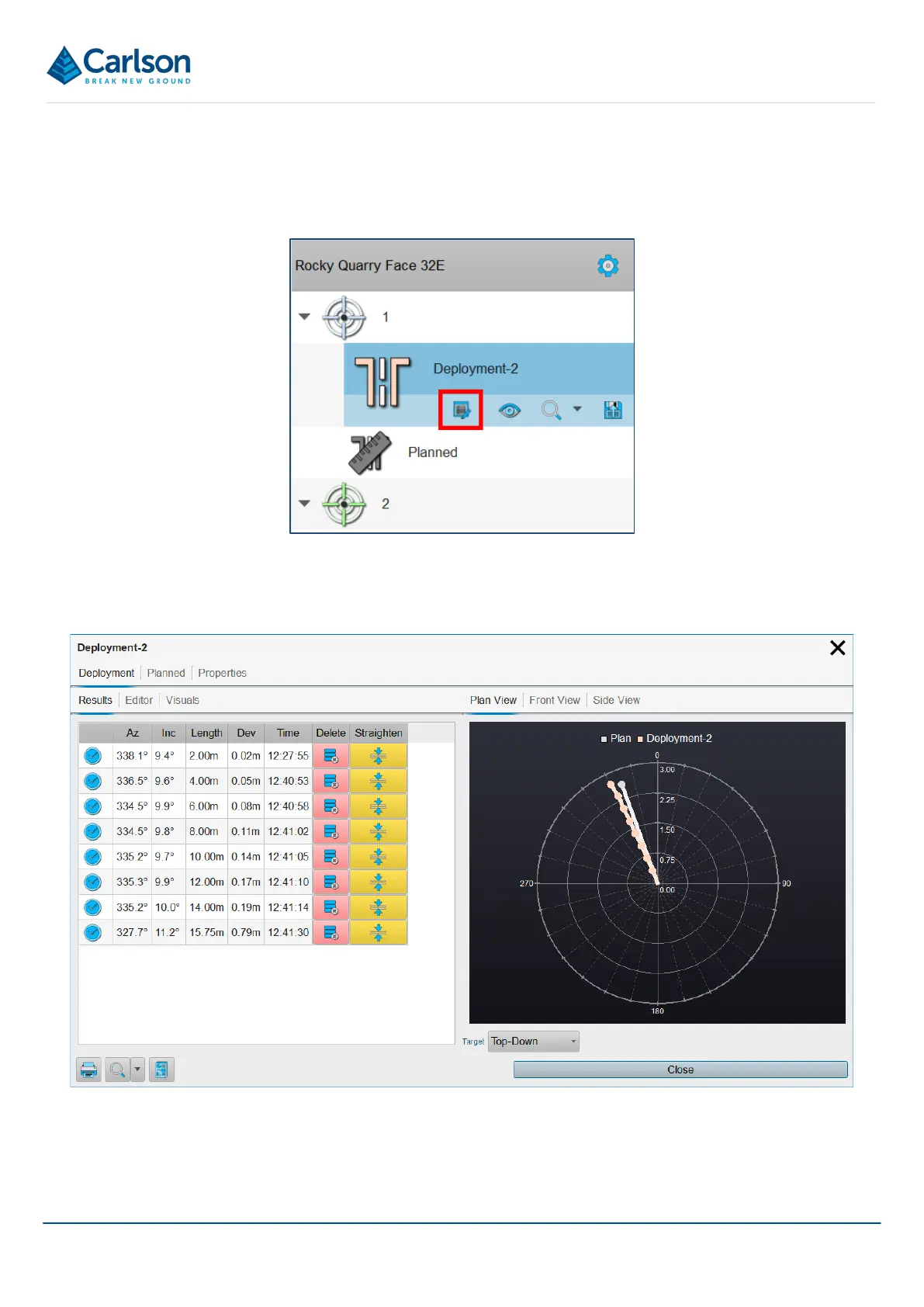

Figure 30 Deployment Details button
Figure 31 Deployment Details window
