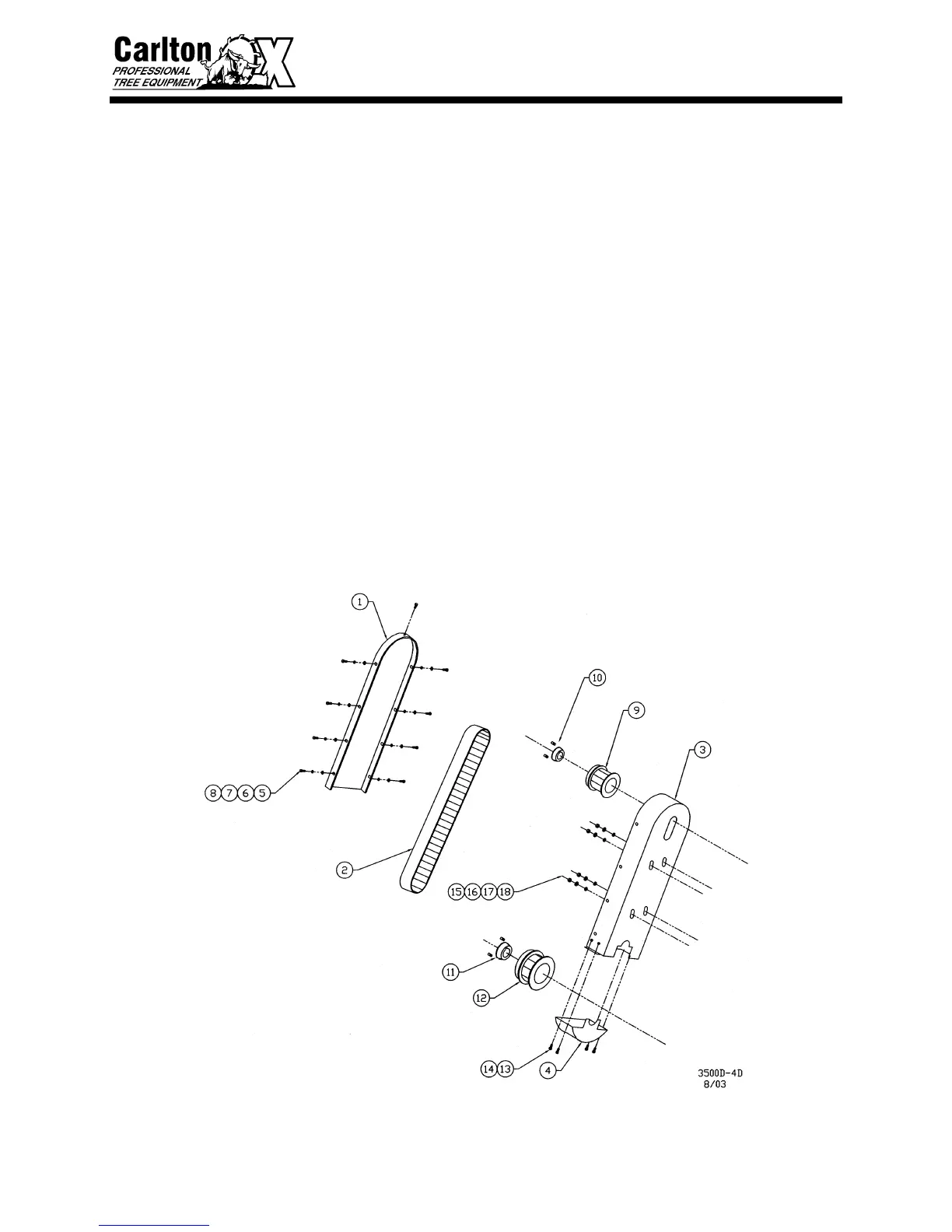

3500D POLY CHAIN® BELT ASSEMBLY
88
ITEM NO PART NO DESCRIPTION QTY
1 3500204 Poly Chain® Guard Cover 1
2 0400113 Poly Chain® Belt 1
3 3500196 Poly Chain
® Guard 1
4 3500208 Poly Chain
® Guard Bottom 1
5 0150118 3/8”-16 x 1” HCS 9
6 0150303 3/8” Flat Washer 9
7 0150404 3/8” Lock Washer 9
8 0150207 3/8”-16 Lock Nut 9
9 0250115B Jack Shaft Sprocket – Taper Lock 1
10 0250115G Taper Lock Bushing –1 11/16” 1
11 0250115M Taper Lock Bushing – 2” 1
12 0250115C Cutter Wheel Sprocket – Taper Lock 1
13 0150212 5/16”-18 Lock Nut 4
14 0150116 5/16”-18 x 1 HCS 4
15 1/2”-13 x 1 1/2" Carriage Bolt 4
16 0150304 1/2" Flat Washers 4
17 1/2” Lock Washers 4
18 0150205 1/2”-13 Lock Nut 4
