Carlton 3500D - Lights & Brakes Assembly

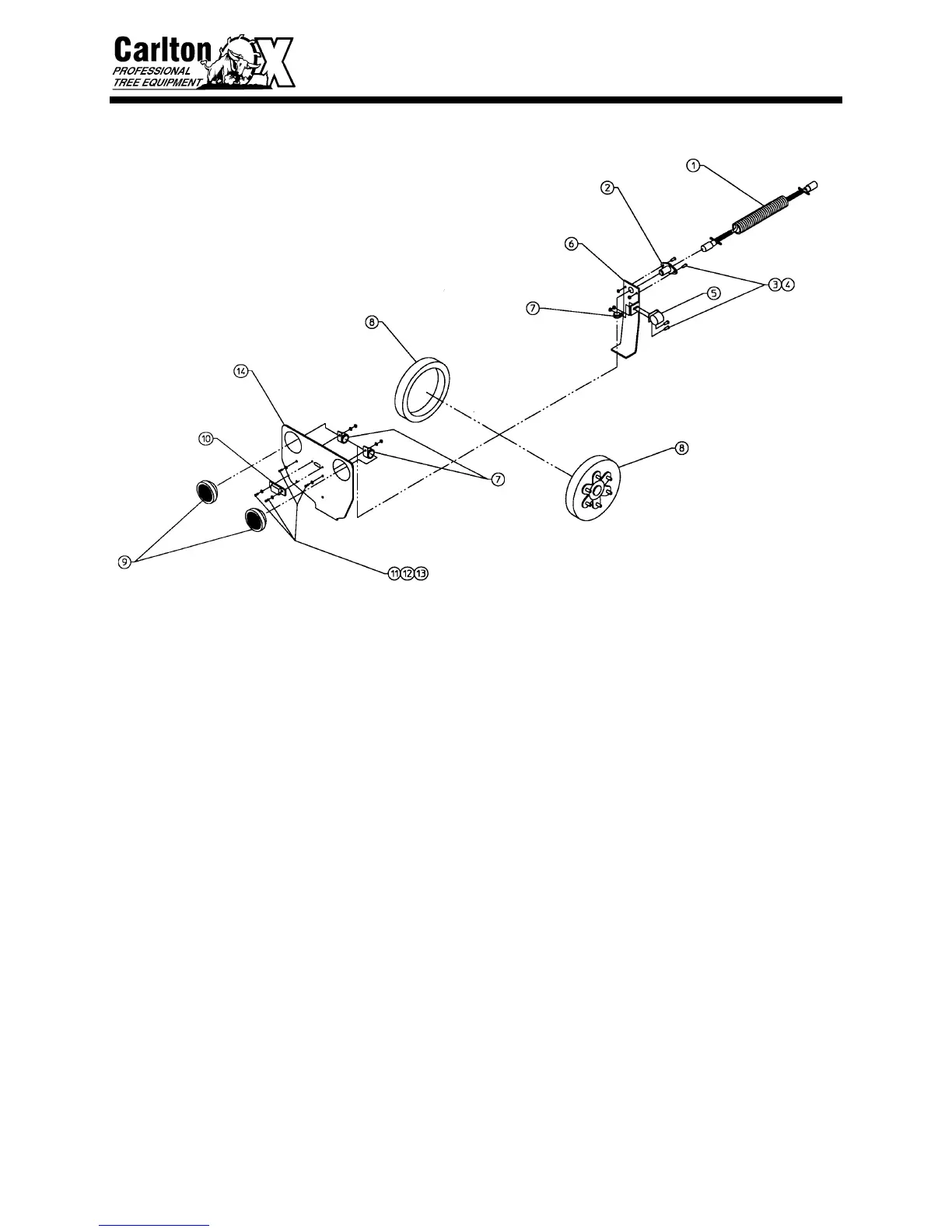

3500D LIGHTS & BRAKES ASSEMBLY
34
LIGHT ASSEMBLY
ITEM NO PART NO
DESCRIPTION
QTY
1 0350008 Coiled Connector Assembly 1
2 0350004 Connector Socket 1
3 0150140 1/4-20 x 3/4 HCS 4
4 0150218 1/4-20 Lock Nut 4
5 0350046 Breakaway Switch 1
6 3500163 Light Connector Bracket 1
7 0350050 1” Loom Clamp 3
8 0550211 Brake Drum w/studs & races 2
9 0350044 Tail Light Kit 2
10 0350045 Tag Light 1
11 0150141 #10 x 3/4 Machine Screw 4
12 0150301 #10 Flat Washer 8
13 0150221 #10 Lock Nut 4
14 3500267 Tail Light Bracket 1
