SERIAL NUMBERS
OWNER DOMAIN
J.P. CARLTON COMPANY DIV. DAF INC.
STUMPCUTTERS
2 VALVE BOX/ENGINE/ELECTRICAL
DESCRIPTION
ISSUE
R1
REMOTE VALVE ASSEMBLY
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
BUSINESS LINE
FUNCTION GROUP
21
8
9
13
14
1
2
3
4
5
4
10
11
12

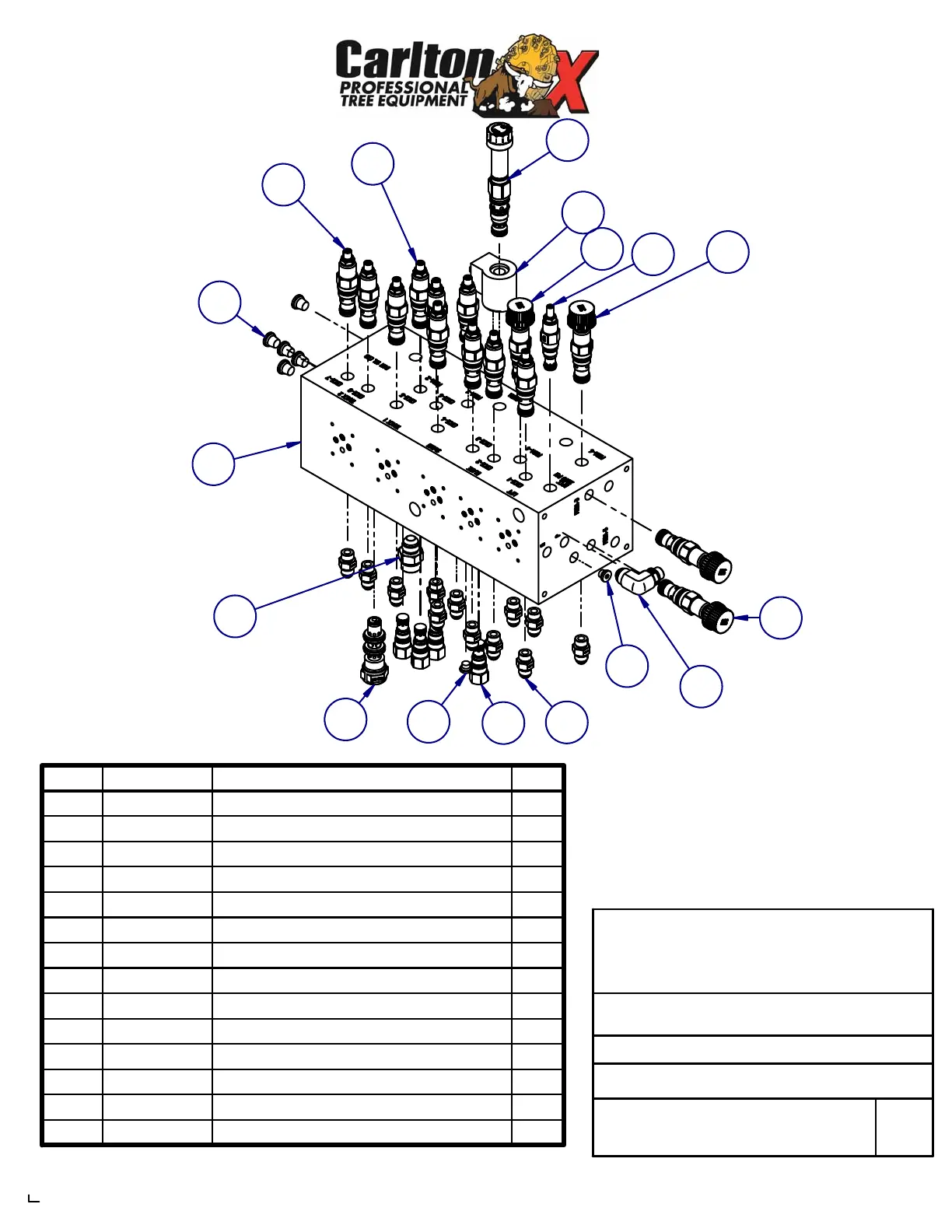

PART ITEM TITLE QTY
1 0300120A C/B Cartridge Valve - CBCG-LKN 8
2 0300121A3 Cartridge check valve CXBA XCN 4
3 0300121A4 FSDC-XAN Divider 1
4 0300121C Flow Control Valve- FDBA-KAN 4
5 0300121C1 Flow Control Valve- FDBA-LAN 2
6 0300121D PISTON RELIEF VALVE- RPCC-LAN 1
7 0300121G2 Valve 2pos 4way DMDA LAN 212 1
8 0300121M Manifold- SP5014TRX Sun 1
9 0300128D 2500 Solenoid 1
10 03002257 3/8 JIC-3/8 ORB - 6400-6-6 12
11 0300533 1/2 JIC-5/8 ORB - 6400-8-10 1
12 0300534 1/2 JIC-3/8 ORB 90d - 6801-8-6 1
13 0300551 Plug Hes Socket ORB SAE 4 2
14 0300552 Plug Hes Socket ORB SAE 6 5
4
13
6
7
To Next Page
