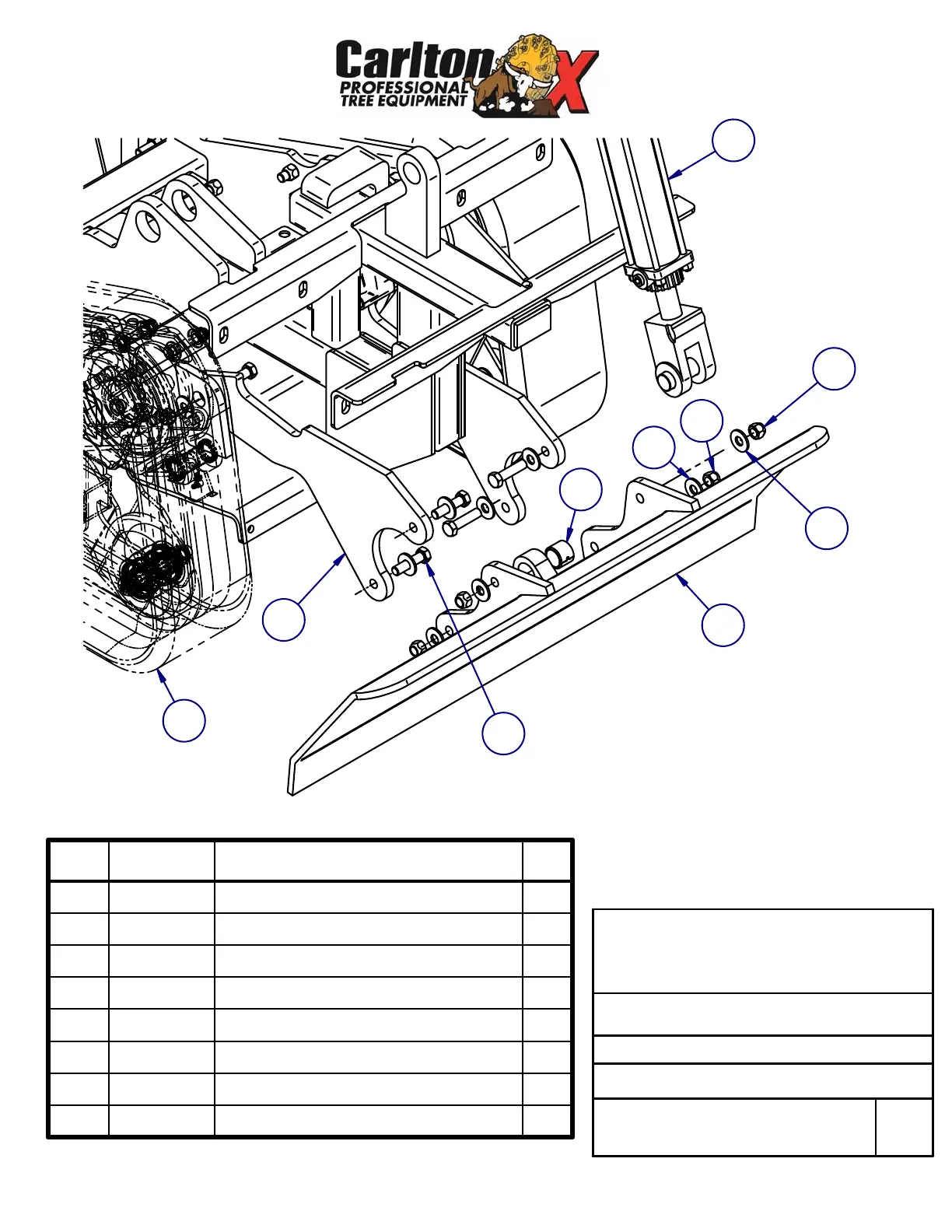

SCRAPE BLADE
DUE TO CONTINUOUS DESIGN IMPROVEMENTS CONSULT FACTORY PRIOR TO ORDERING 1-800-243-9335.
BUSINESS LINE
FUNCTION GROUP
43
2
7
3
8
PART ITEM DESCRIPTION QTY
1 0150801 BUSHING,HARDENED,1" 2
2 0300105A Hydraulic Cylinder 2 x 4 1
3 12A-0816ZI BOLT,HEX C/S 1/2-13 x 2 UNC GR8 6
4 15060001 INSTALL,UNDERCARRIAGE 1
5 15070002 WELDMENT,SCRAPE BLADE 1
6 15070009 PLATE,SCRAPE BLADE/FRAME 2
7 29A-08 NUT,STOVER LOCK, 1/2-13 UNC GR8 6
8 31A-08ZI FLAT WASHER 1/2 USS GR 8 Z&Y 12
4
7
8
6
5
1
