SP5014TRX SERVICING CUTTER WHEEL
47
SAFETY
NEVER SERVICE A MACHINE WITH THE ENGINE RUNNING, SEVERE
PERSONAL INJURY COULD OCCUR. TURN ENGINE OFF THEN REMOVE
IGNITION KEY AND DISCONNECT POSITIVE BATTERY CABLE TO AVOID
STARTING MACHINE ACCIDENTALLY.
CUTTER WHEEL MUST BE DISENGAGED BEFORE TURNING ENGINE
ON/OFF AND BEFORE SERVICING A MACHINE. OTHERWISE SEVERE
PERSONAL INJURY COULD OCCUR AS WELL AS MACHINE DAMAGE.
ALL MACHINE PARTS MUST COME TO A COMPLETE STOP AND HAVE
TIME TO COOL COMPLETELY BEFORE SERVICING A MACHINE OR
SEVERE INJURY COULD OCCUR, POSSIBLY SERIOUS BURNS AND/OR
DISMEMBERMENT.
DO NOT OPERATE A MACHINE WITHOUT A COMPLETE NUMBER OF
TEETH IN THE CUTTER WHEEL PROPERLY INSTALLED. EXCESSIVE
MACHINE VIBRATION WILL OCCUR CAUSING PREMATURE BEARING
FAILURE AND EQUIPMENT DAMAGE.
PLACE THE CUTTER WHEEL ON THE GROUND WHEN PERFORMING
SERVICE ON A MACHINE.

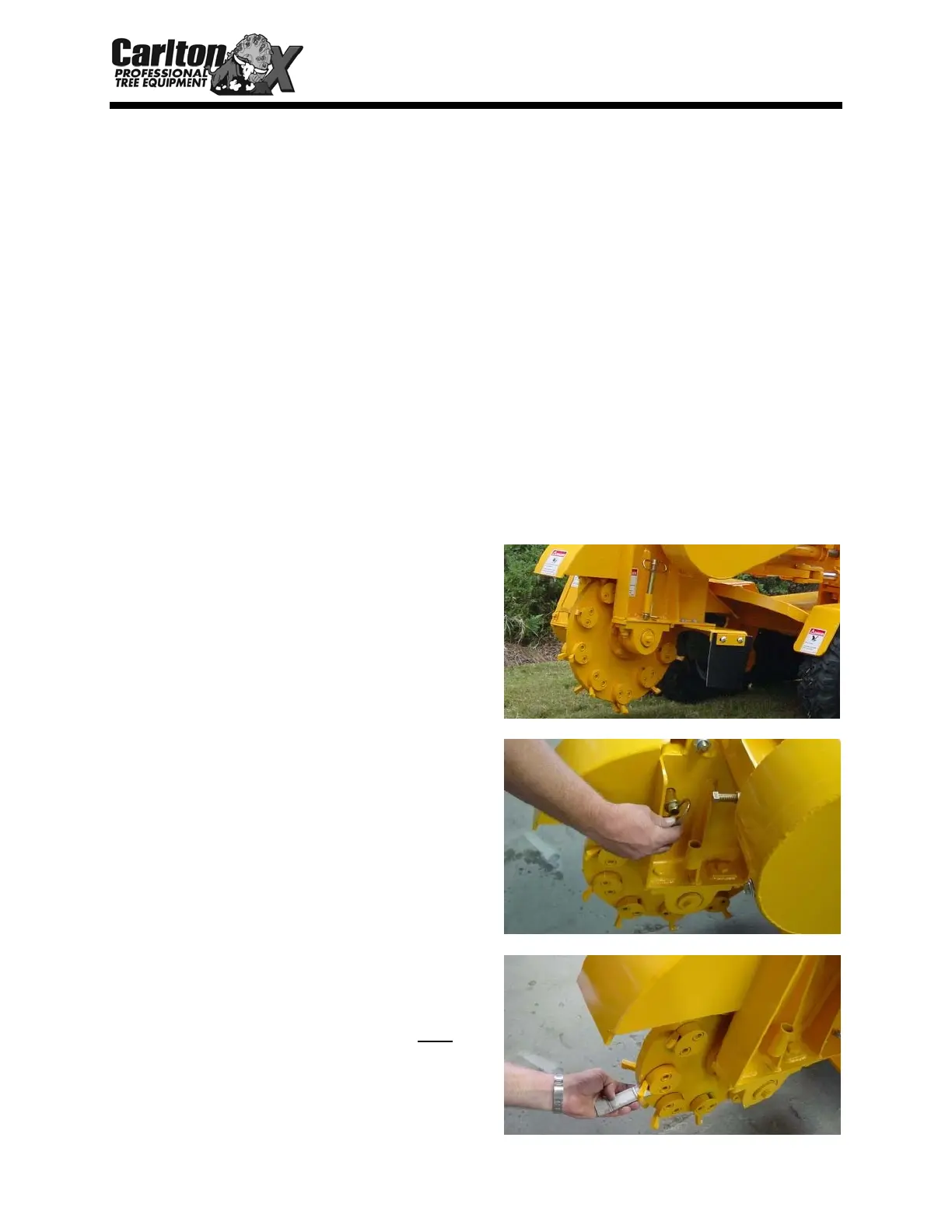

There are twenty (20) teeth to a complete set
on the model SP5014TRX. Two (2) straight
teeth, nine (9) left 45° teeth and nine (9) right
45° teeth.
A locking pin is provided to hold cutter
wheel in position during tooth removal and
re-installation. Locking pin will only lock on
outer teeth.
NEVER PLACE HAND ON CUTTER
WHEEL TO HOLD IN PLACE WHILE
CHANGING TEETH. BE SURE TO
REMOVE PIN BEFORE OPERATING.
A Tooth Setting Gauge (P/N 0450111) is
provided with each machine for proper tooth
installation. Line all teeth up with the inside
edge of the groove in the gauge. Set ALL
teeth to this edge with gauge against pocket,
not against cutter wheel.
See Cutter Wheel Assembly for
breakdown.
