SP5014TRX MACHINE CONTROLS
10
ENGINE CONTROLS - Refer to engine manufacturers owners’ manual for controls, operation,
and service.

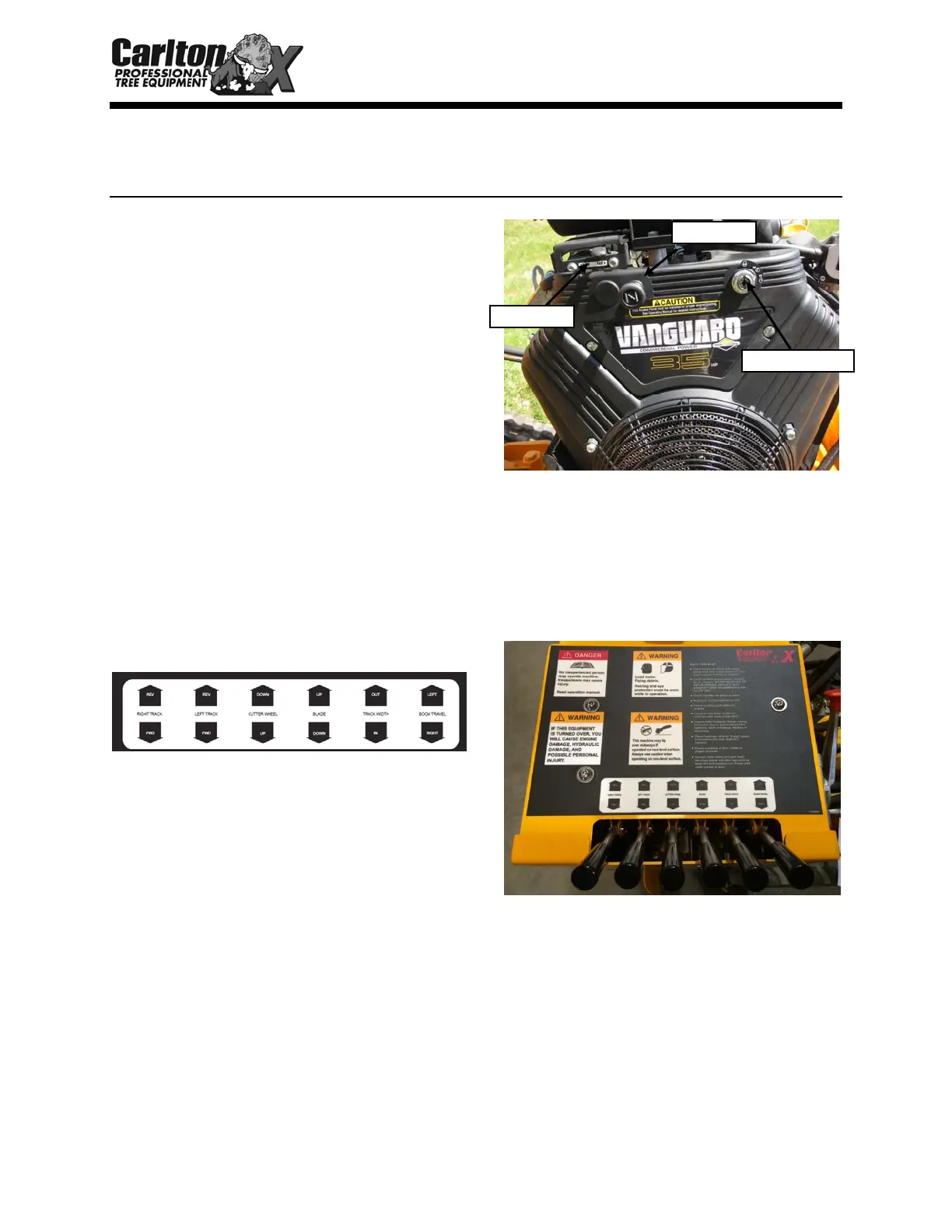

The Key Switch for starting the engine
is located on the Vanguard engine.
There is also a choke lever and throttle
lever on the engine. Read the engine
manual for proper starting and operating
instructions.
DO NOT OPERATE THE ENGINE
AT AN ANGLE GREATER THAN
25° OR SEVERE ENGINE DAMAGE
WILL OCCUR. PROPER ENGINE
OIL LEVEL MUST BE MAINTAINED
TO ACHIEVE MAXIMUM ANGLE
OF OPERATION OF 25°. (See Engine
Owner’s Manual for proper oil level.)
HYDRAULIC CONTROLS
A series of hydraulic controls are located
on the machine and are clearly marked.
STEERING TRAVEL - (
lever 1 and lever 2)
RIGHT TRACK and LEFT TRACK
Use both controls in the same direction
(Fwd/Fwd or Rev/Rev) to move machine
forward or reverse. The radio transmitter
has a switch (BOTH TRACKS) that will
move both tracks at the same time in the
forward or reverse directions.
Use controls opposite (Rev/Fwd or
Fwd/Rev) of each other to turn machine
either right or left. When rotating the
machine, try not to leave one track
stationary while rotating the other one
around it as this could cause the machine to
jump a track. If it is desired to spin the
machine, counter-rotate the tracks.
CHOKE
KEY SWITCH
THROTTLE
