SP5014TRX MACHINE CONTROLS
12

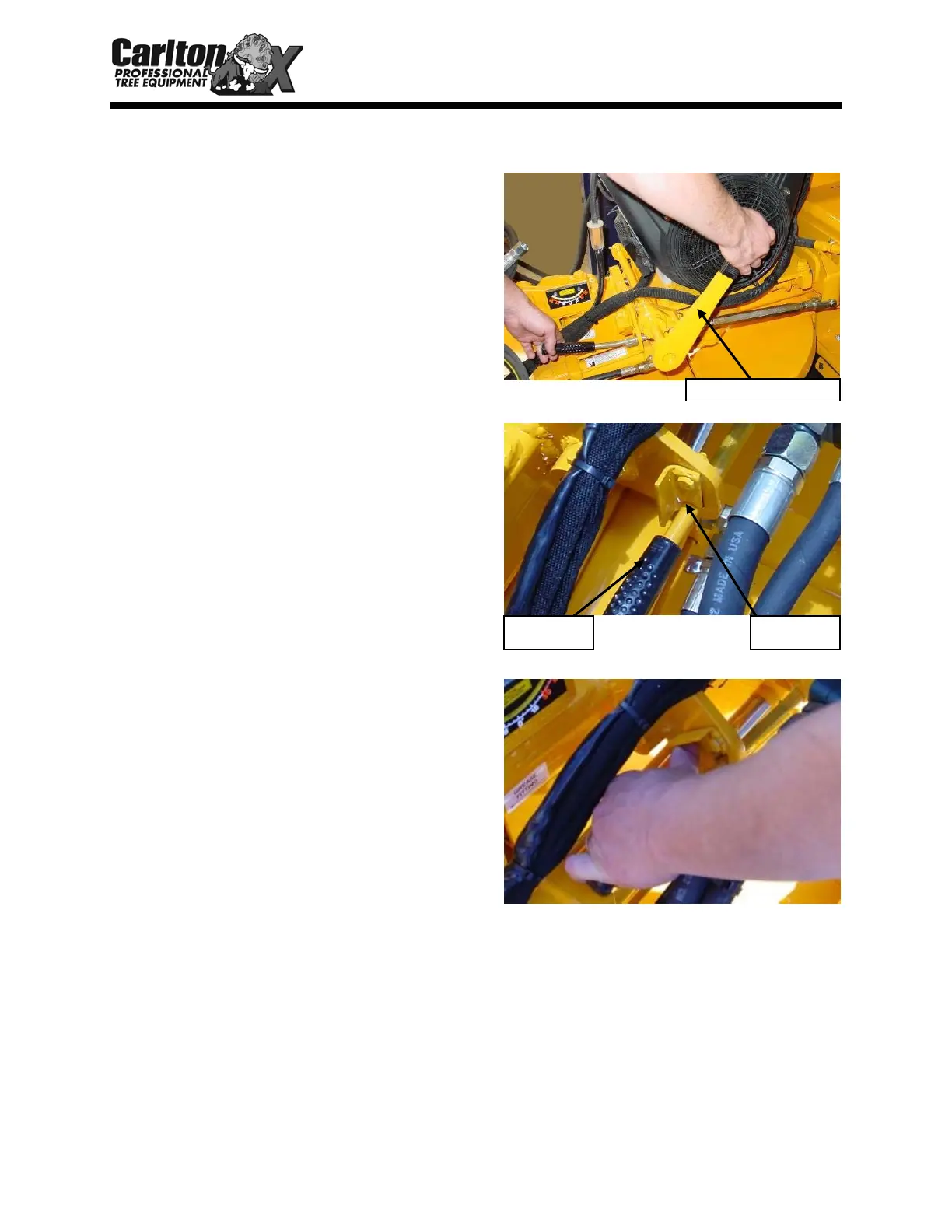

CUTTER WHEEL ENGAGEMENT
LEVER
Never start engine with cutter wheel
engaged. With engine at idle, raise the
engine slide lock, and slowly move the
engagement lever towards the front of the
machine to engage drive belts. DO NOT
ENGAGE OR DISENGAGE BELTS AT
HIGH ENGINE SPEED. Injury and
damage will occur.
ENGINE SLIDE LOCK
Using your thumb move the engine slide
lock brace and raise the engine slide lock
handle. This will unlock the engine slide
and allow you to engage the cutter wheel.
ENGAGEMENT LEVER
SLIDE LOCK
HANDLE
SLIDE LOCK
BRACE
