SP5014TRX MACHINE CONTROLS
14
OPERATION – WIRELESS
THE CUTTER WHEEL MUST BE
DISENGAGED BEFORE STARTING THE
MACHINE. WHEN OPERATING
MANUALLY, BOOM FUNCTIONS WILL
NOT OPERATE WITH HIGH/LOW GEAR
TOGGLE SWITCH IN HIGH POSTION.

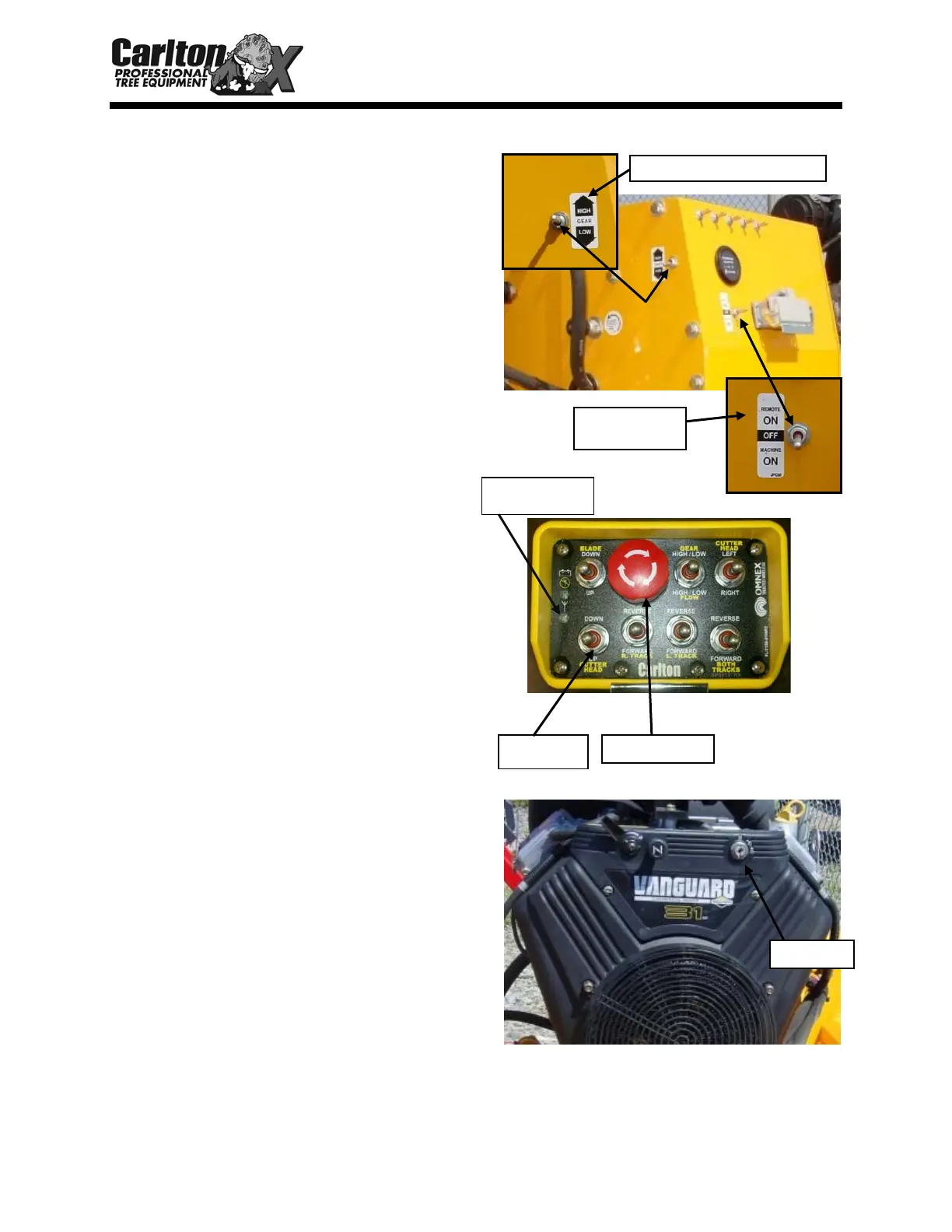

To start the engine and radio control
transmitter, follow these instructions.
On the machine, turn the ignition key switch
to ON (see engine picture below right), the
machine switch to Remote On, and make
sure the Gear switch is in the LOW position.
On the transmitter, press the E-STOP button
down.
Toggle any switch on the transmitter.
Twist the E-STOP button clockwise to
release. Release the E-STOP button within
10 seconds to power up or the unit will
power down. When the transmitter is
operating there is a yellow light that will be
flashing, the light is indicated in the picture
at the right. (Read the radio control manual
for more information on the meaning of
different lights and colors.) If the
transmitter doesn’t start, check the
transmitter for stuck switches, it will not
start with a switch in the ON position.
Now start the engine using the key switch.
If the engine doesn’t start right away and
you have to restart it, make sure the light on
the transmitter is still on, and restart the
engine. If you lose the connection (light
off), repeat the procedure from the
beginning and perform each step exactly as
described. Test controls for proper
operation.
The E-STOP button turns off the transmitter
and the machine when it is pressed down.
When the Flow switch is toggled up to
HIGH, it only operates when the Travel
function is being used. Use High/Low
FLOW to switch between low and high gear.
Both left/right and up/down functions will
not operate with switch in HIGH flow.
GEAR SWITCH - HIGH POSITION
PUSH SWITCH UP
TO REMOTE ON
TOGGLE ANY
SWITCH
E-STOP BUTTON
LOW BATTERY /
FAULT LIGHT
KEY SWITCH
NEVER WELD ON A MACHINE WITH
RADIO CONTROLS WITHOUT FIRST
DISCONNECTING THE RECEIVER WIRE
HARNESS, OTHERWISE THE RADIO
RECEIVER CAN BE DAMAGED.
