SP5014TRX MACHINE OPERATION
20
Reduce engine RPM to idle.
Raise cutter head clear of stump.
Engage cutter wheel belts by raising engine
slide lock and then slowly pushing
engagement lever toward front of machine.
When the cutter wheel is fully engaged the
engine slide lock will be in a raised position.
Increase engine RPM to full.
Test controls for proper operation, speed,
and unobstructed movement.
Cutter head swing speed should be adjusted
to a rate that will allow cutter wheel to pass
through stump smoothly. If jerking,
bouncing, or significant drops in engine
speed occur, swing rate is to rapid and must
be decreased.
Swing speed should be determined and
adjusted with the controls in the full open
position.
A counter-rotating valve is located within
the hydraulic system to adjust this speed.
Turning the handle counter-clockwise will
open the bypass and slow swing action.
Turning it clockwise will close the valve and
increase swing rate.

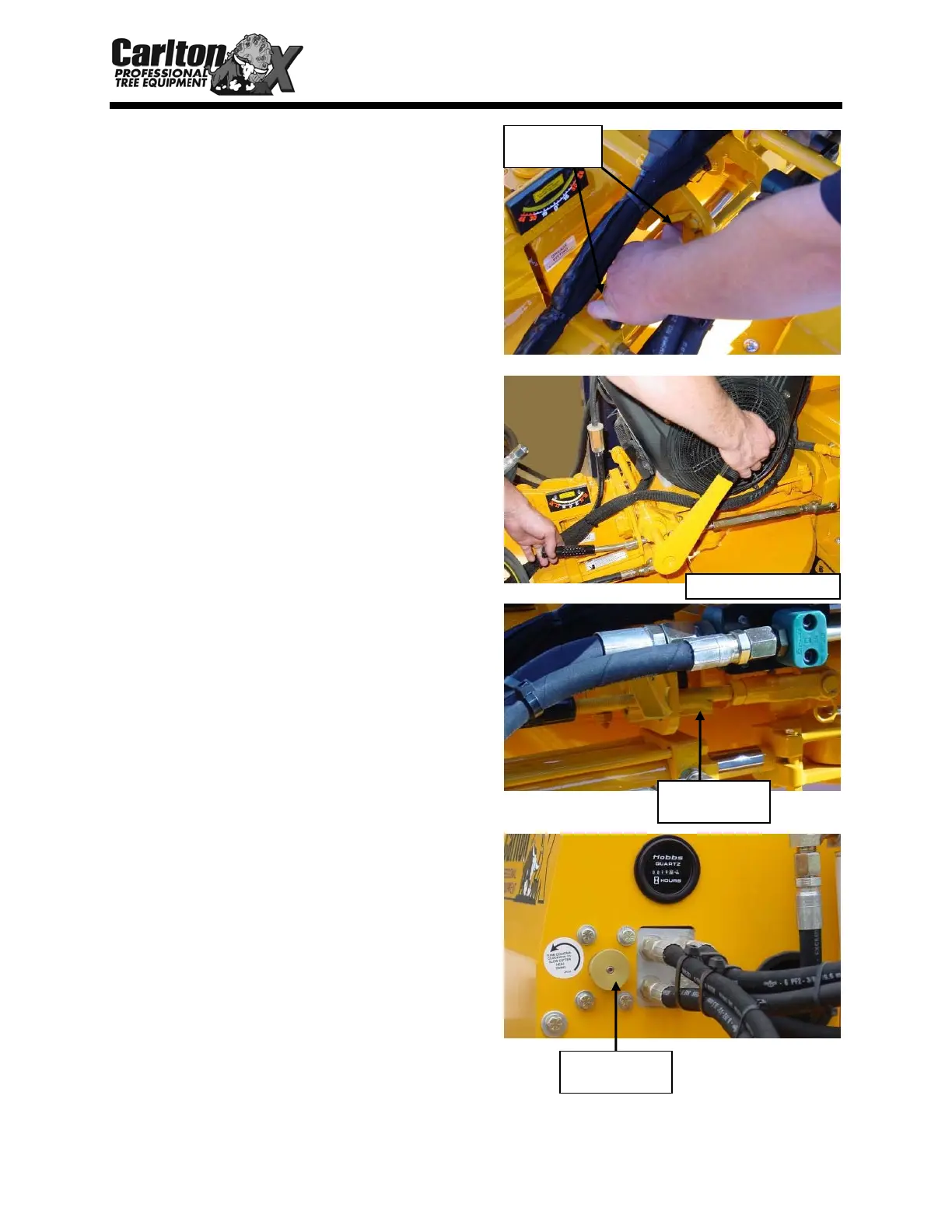

ENGAGE CUTTER WHEEL
RAISE ENGINE
SLIDE LOCK
ENGINE SLIDE
LOCK RAISED
SWING SPEED
ADJUSTMENT
To Next Page
