SP5014TRX SERVICING BELTS
36
Replacing Poly Chain® Belt

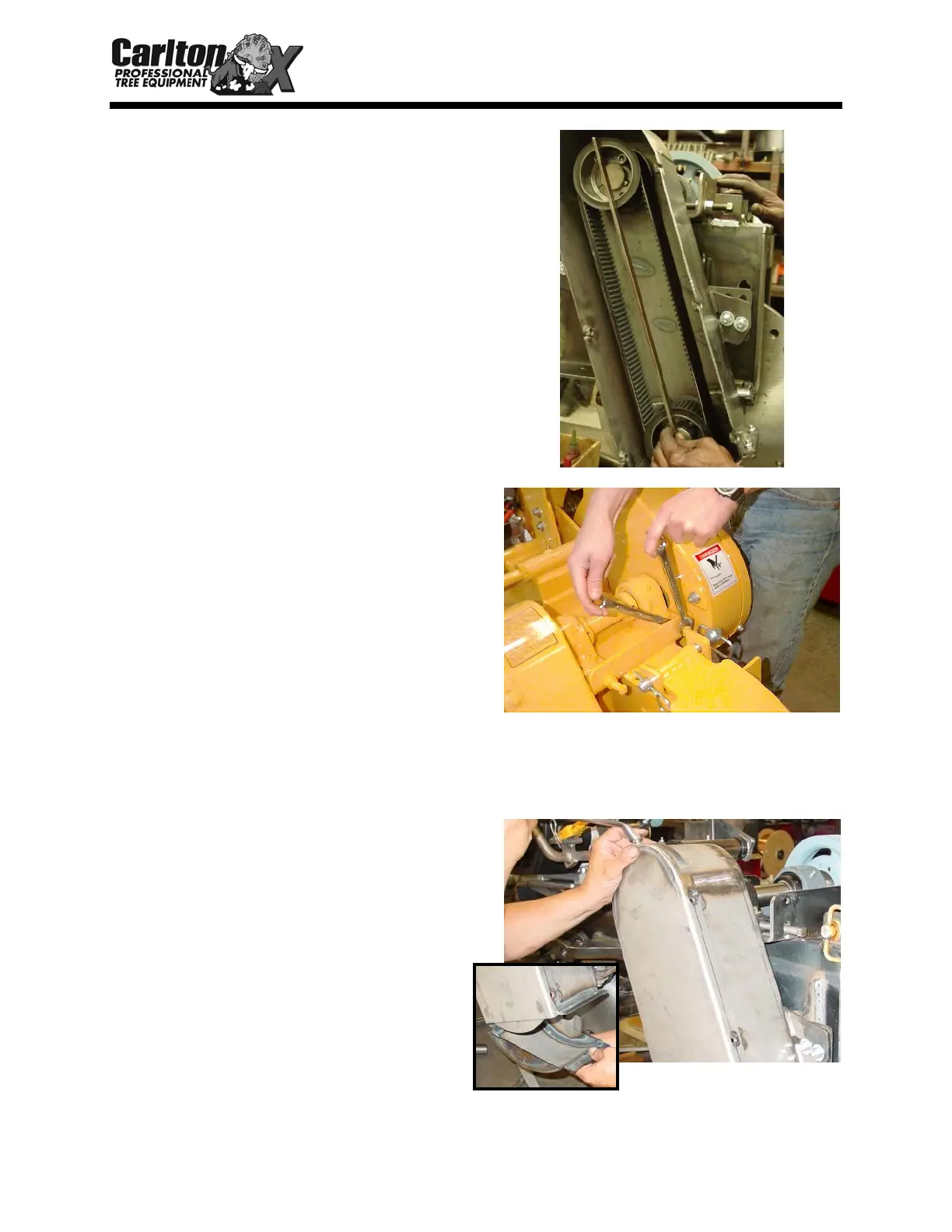

Check alignment of Poly Chain
® sprockets
using a straight edge.
To adjust tension of the belt, slide the
bearings back into the place that you had
marked. Tighten the jam bolts. To tighten
the belts more if needed, loosen the front jam
bolts and tighten each of the back jam bolts
the same number of revolutions, to keep the
alignment true. After the belt is adjusted,
tighten the front jam bolts back against the
bearing. After the Poly Chain
® belt has
been adjusted; check the V-belt tension
and alignment. When the V-belt is
tensioned properly, it will deflect 1/4” with
25 lbs. of force applied.
Replace Poly Chain® belt guard cover and
bottom cover and tighten bolts.
DO NOT RUN MACHINE WITHOUT ALL
GUARDS IN PLACE AND SECURED.
To Next Page
