8.1 Allowable Voltage Range
The motors for the Paragon compressor are designed to
function in the voltage ranges listed in Table 19.
Table 19 — Compressor Motor Voltage Range
* For Wye connected motors only.
8.2 Electrical Connection Require-
ments
Power Connections
The compressor terminals are copper feed-through pins
with M12 metric threads for all models (except for low-
voltage versions of the 06TU and 06TV model types,
which have M16 metric threads).
Torque specifications are as follows:
• 15 to 20 lb-ft (20-27 Nm) on the TS, TT, TU and TV
compressors with 12 mm pins
• 20 to 25 lb-ft (27-34 Nm) on low voltage (< 375 V) TU
and TV compressors with 16 mm pins
Power wires are connected to the terminal pins using ring
terminals and jam nuts. The power connection system is
designed for nominal line voltages up to
575 volts. The
motor temperature thermistors and a separate 12 mm
grounding lug connection are located in the terminal pin
area. Terminal and sensor pin layout on the compressor
is shown in Fig. 32 and 33.
The Paragon compressor is approved for use with
across-the-line, open, and closed transition Wye-delta
applications.
Across-the-Line Starting
Table 20 shows the wiring configuration for an across-
the-line (XL), delta configuration.
Table 20 — Across-the-Line,
Delta Configuration Wiring
VOLTAGE
CODE
60 Hz 50 Hz
NOMINAL MIN MAX NOMINAL MIN MAX
S
460 396 506
400 342 440
690* 592 762
T
575 518 633
— — —
W
380 342 418
— — —
690* 592 762
X
230 198 253 200 180 220
Z
200 180 220
— — —
CONNECTION L1 L2 L3
TIE
TOGETHER
Start (delta)
1, 6
(U1, W2)
2, 4
(V1, U2)
3, 5
(W1, V2)
—
Run (delta)
(same as
start)
1, 6
(U1, W2)
2, 4
(V1, U2)
3, 5
(W1, V2)
—
S1
S2
C
G
1
(U1)
2
(V1)
3
(W1)
4
(U2)
6
(W2)
5
(V2)

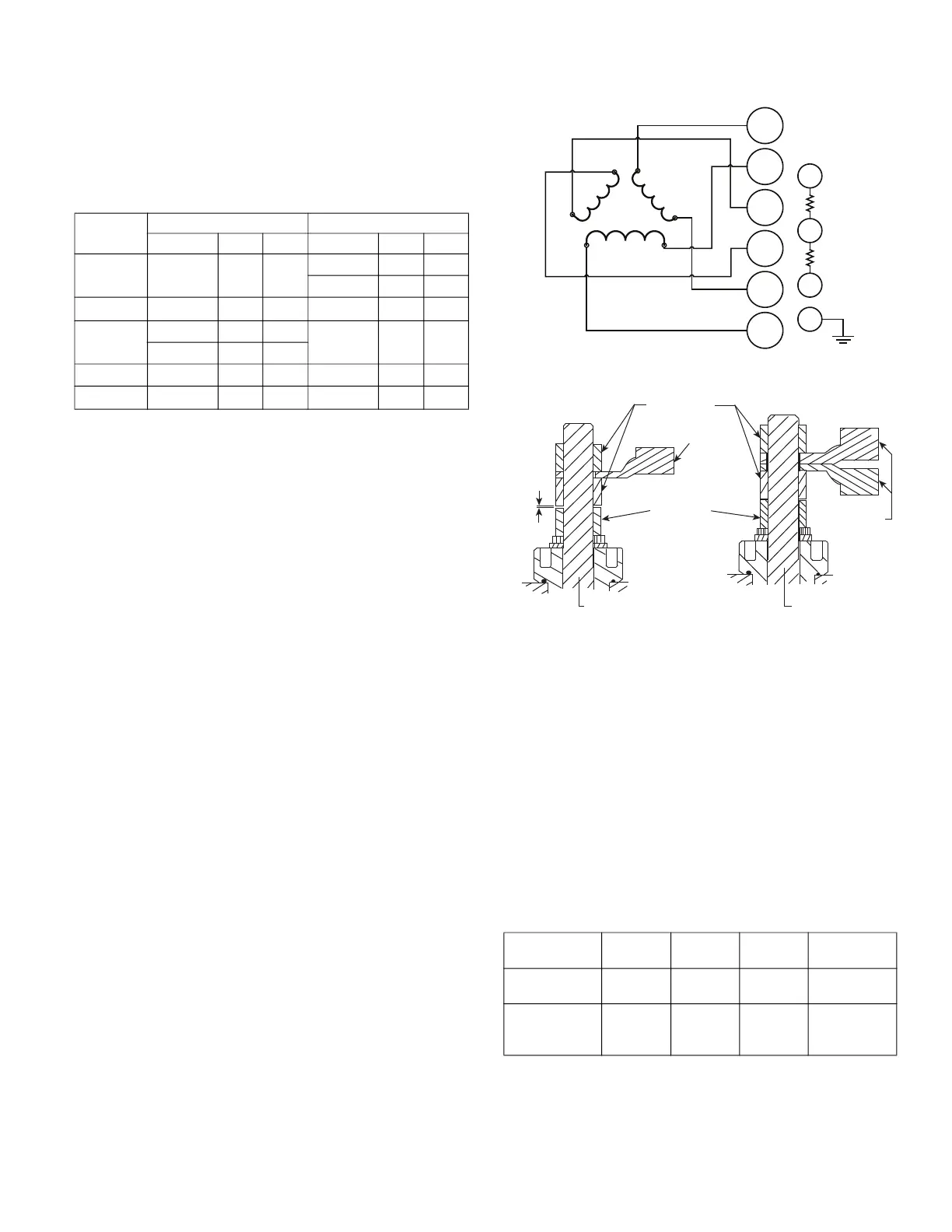

Fig. 32 — Terminal and Sensor Pin Layout
a06-1674
3MM GAP
WIRE LUG
JAM NUT “S”
(FIELD INSTALLED)
TERMINAL PIN
TERMINAL PIN
(ALTERNATE)
WIRE LUGS
JAM NUT “S”
(FACTORY INSTALLED)
SEE WARNING BELOW
WARNING
DISTURBING THIS NUT CAN
JEOPARDIZE THE SEAL
INTEGRITY OF THE TERMINAL PIN
DO NOT DISTURB!
Fig. 33 — Terminal Pin Cross Section
