9
Compressor Physical Data and Connecti
o
ns (
co
nt
)

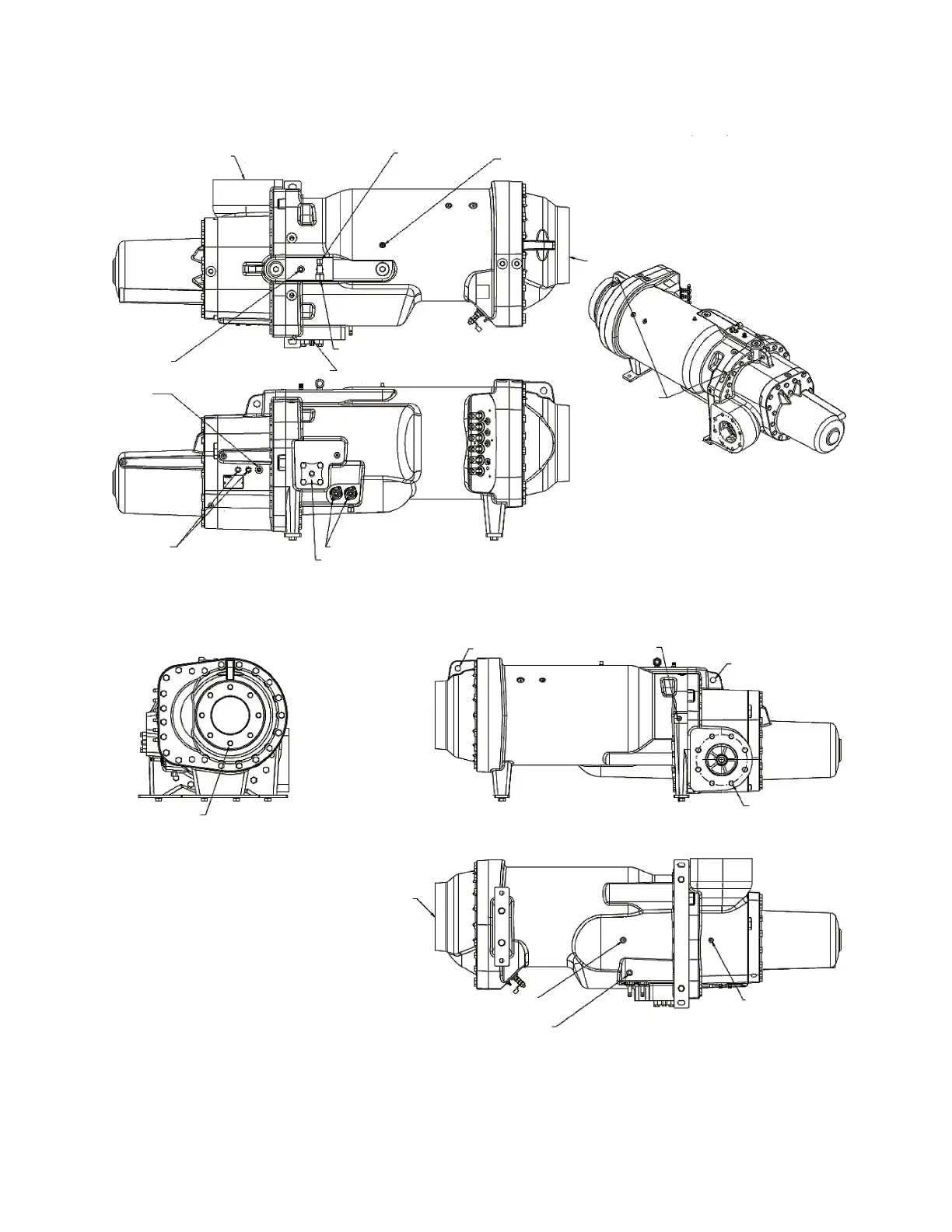

Fig. 4 —
6TV Compressor Physical Data and Connections
a
0
6
-
1
6
8
6
DISCHARGE FLANGE
OIL SUPPL
Y
TO
CAP
ACITY CONTROL
3/8 ORIFICE
SUCTION TEMP WELL
1/4 INCH SAE
SUCTION FLANGE
OIL PRESSURE POR
T
3/8 INCH SAE
ECONOMIZER FLANGE
OIL INLET
PORT
5/8 ORIFICE
LIFTING
LOCA
TIONS
HIGH SIDE
TEMP WELL
1/4 INCH SAE
HIGH SIDE
PRESSURE PORTS
1/4 INCH SAE
CAP
ACITY CONTROL
SOLENOIDS
ECONOMIZER PORT
1 5/8 INCH ODS
SUCTION CONNECTION
6 INCH CLASS 150 FLANGE
Ø24 LIFTING HOLE
OIL INJECTION POR
T
1/4 INCH SAE
Ø24 LIFTING HOLE
DISCHARGE CONNECTION
5 INCH CLASS 150 FLANGE
SUCTION
OIL DRAIN POR
T
3/8 INCH SAE
CAP
ACITY CONTROL
OIL
SUPPL
Y PORT 3/8 ORIFICE
OIL DRAIN POR
T
1/4 SAE
8
10
Table of Contents
Table of Contents
2
R-134A, R-513A, R-1234Ze Applications
3
R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, and R-507A Applications
3
Scope
3
Certifications
3
Compressor Offerings
3
Compressor Displacement (R-134A, R-513A, R- 1234ZE for Air and Water Cooled Models)
3
Compressor Displacement (Low/Medium Temperature Models). R-404A, R-407A, R-407C, R-407F, R-448A, R-449A, and R-507A
4
Standard Features
4
Model Number Significance Chart
5
Compressor Physical Data and Connections
6
06TS Compressor
6
06TT Compressor
7
06TU Compressor
8
06TV Compressor
9
Medium/High Temperature
10
Refrigerants and Lubricants
10
Environmental Considerations
10
Operating Limits and Controls
10
Control Points Summary
14
Medium/High Temperature System Oil Management
15
Oil Pressure Requirements
15
Oil Separator Recommendations
15
Oil Heater Recommendations for Air-Cooled
15
Models
15
Oil Level Safety Switch
16
Oil Filter
16
Low Temperature System Design Considerations
17
Refrigerants and Lubricants
17
Environmental Considerations
17
Operating Limits and Controls
17
Control Points Summary
22
Low Temperature System Oil Management
23
Oil Pressure Requirements
23
Oil Separator Recommendations
23
Oil Heater Recommendations
23
Oil Level Safety Switch
23
Oil Filter
24
Oil Cooling Systems
24
Oil Cooler Selection
24
Oil Cooler Sizing
25
Unloader Operation
27
Unloader System Control Points
27
Approximate Part Load Factors
28
Software Version 2.0 Schematics
30
Compressor Requirements
36
Design Pressures
36
Variable Frequency Drive Guidelines
37
Scope
37
Capacity Control
37
Power Supply
37
Compressor Electrical Data
39
Allowable Voltage Range
39
Electrical Connection Requirements
39
Motor Data
41
Compressor Accessories
48
Oil Separators
48
Vertical Oil Separator Kit
49
Horizontal Oil Separator Kit
49
Compressor Components Kit
49
Compressor Protection and Slide Valve Capacity Control Kits
50
Service Valves
50
Motor Protection Devices
50
Oil Coolers
51
Packaging and Storage Requirements
52
Packaging
52
Shipping
52
Storage
52
Weights and Dimensions
52
