Carrier 09VE - 5 Instructions for Lifting and Transportation; Handling Units Using Rings Fixed to the Roof: Standard Units

5 - INSTRUCTIONS FOR LIFTING AND TRANSPORTATION
■ The weights are given on the data plates.
■ To lift the units, it is essential to refer to the yellow lifting labels afxed to the unit and x the slings to the slinging points shown on
these
The lifting mode is shown on the dimensional drawing supplied with the order.

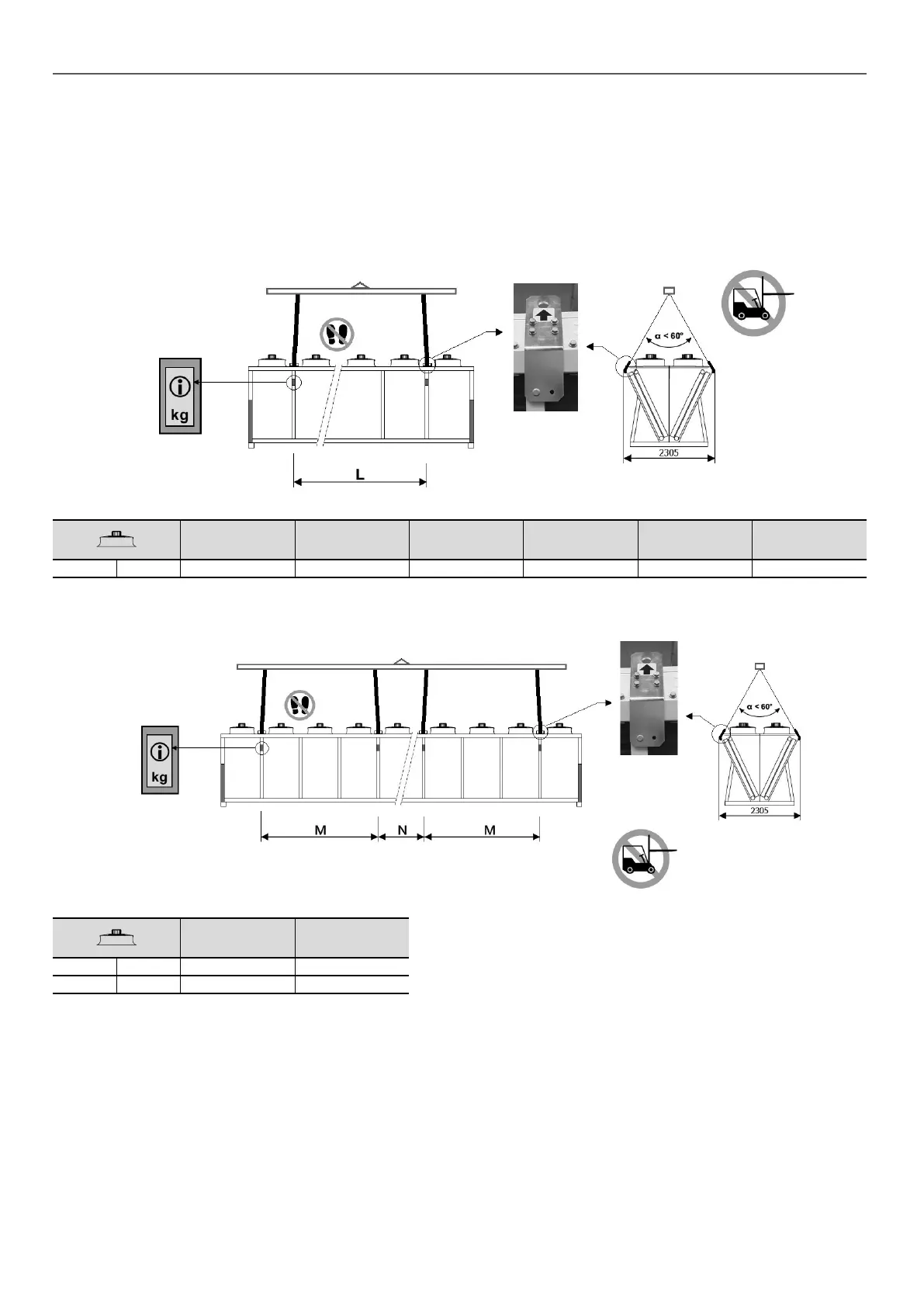

5.1 - Handling units using rings xed to the roof: standard units
Standard units from 6 to 16 FMAs
Yellow "Lifting
instructions" sticker
x6 x8 x10 x12 x14 x16
W mm 3450 2300 3450 2300 3450 4600
Standard units from 18 to 20 FMAs
Yellow "Lifting
instructions" sticker
x18 x20
M mm 2300 2300
N mm 1150 2300
6
