Carrier 40UV - Page 66

66
RETURN AIR
TEMPERATURE
SENSOR
OPENING
FRONT
COIL
BAFFLE
DISCHARGE AIR
TEMPERATURE SENSOR
OPENING
MOTOR & COUPLING
SETSCREW ACCESS
MOTOR
MOTOR
ELECTRICAL
BOX
COIL SECTION
DAMPER SECTION
BLOWER SECTION
DAMPER SECTION
KICKPLATE

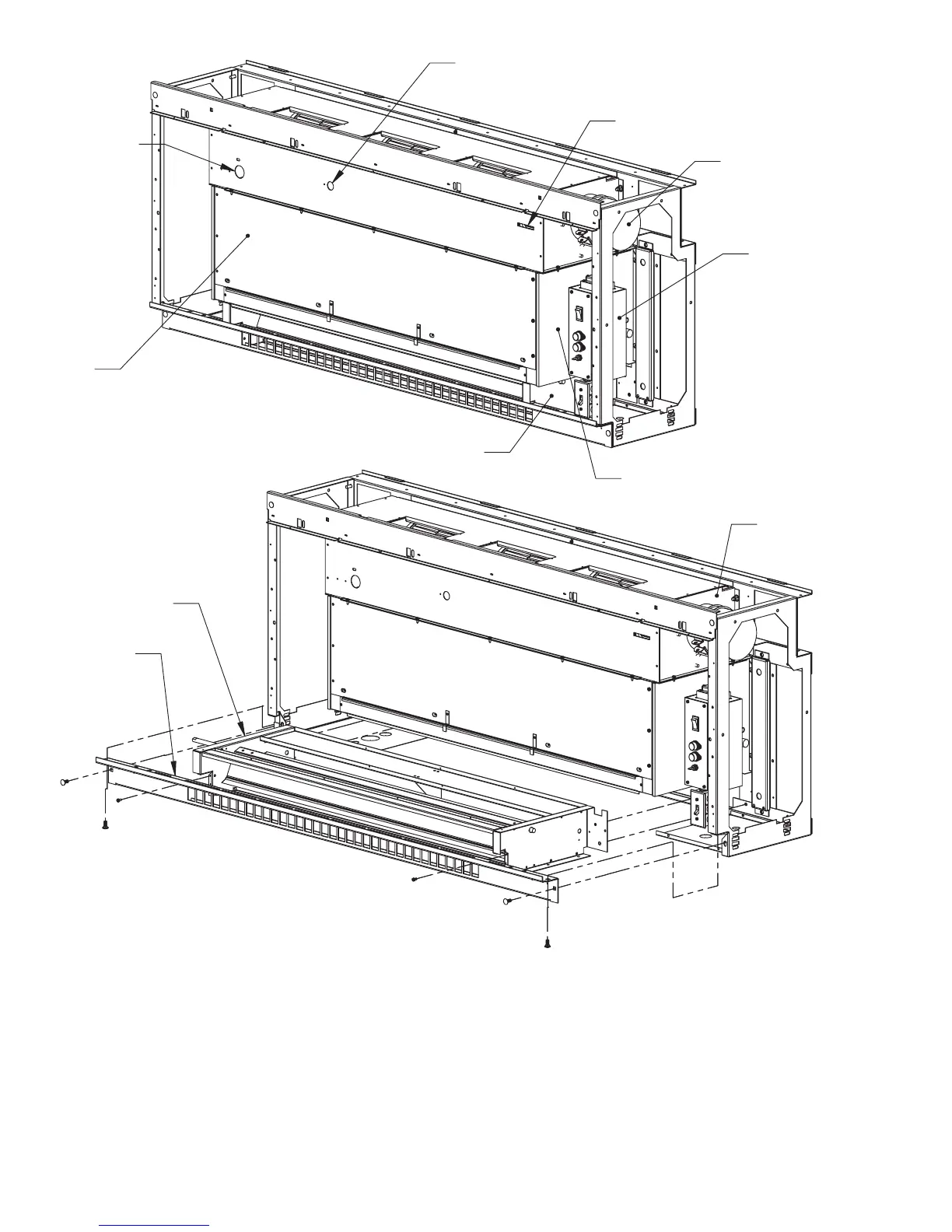

Fig. 45 — 40UV,UH Ventilator Damper Section Removal/Installation
NOTES:
1. Unit shown in vertical orientation. Drawing applies to horizontal and vertical units.
2. Not all components shown for clarity.
