2.1.5 Air Cooled Condenser Section
The air cooled condenser section (Figure 4) consists of
the condenser fan, condenser coil, receiver with sight
glass/moisture indicator, quench valve, manual liquid
line valve, filter-drier, condenser pressure transducer
and fusible plug.
The condenser fan pulls air in the bottom of the coil and
it is discharged horizontally out through the condenser
fan grille.
5
6
7
15
1
2
4
3
8
10
9
11
13
12
14
1. Grille and Venturi Assembly
2. Condenser Fan
3. Key
4. Condenser Fan Motor
5. Condenser Coil Cover
6. Condenser Coil
7. Condenser Motor Mounting Bracket
8. Receiver
9. Sight Glass
10. Fusible Plug
11. Condenser Pressure Transducer
12. Sight Glass/Moisture Indicator
13. Filter-Drier
14. Liquid Line service Valve
15. Quench Valve

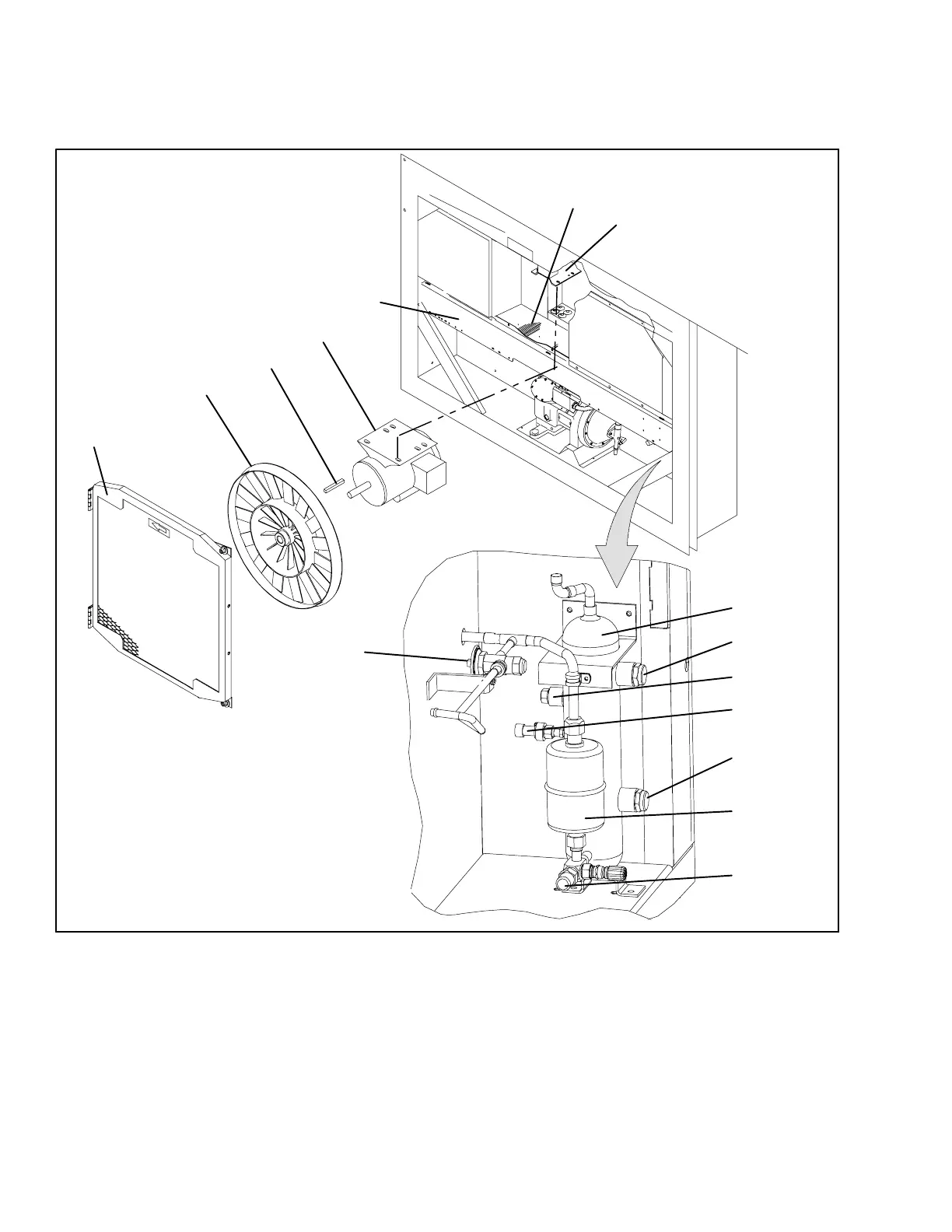

Figure 4. Condenser Section
