2.3 DUAL TEMP ASSEMBLY INSTALLATION KIT
The dual assembly installation kit includes tube and ring clamps, which are used to secure the high voltage cable,
liquid line, suction line, and low voltage cable that connect the remote evaporator to the refrigeration unit. The
remote guard is used to protect the remote evaporator frame assembly from damage. It is fastened to the under-
side of the frame assembly (see Figure 2.15).

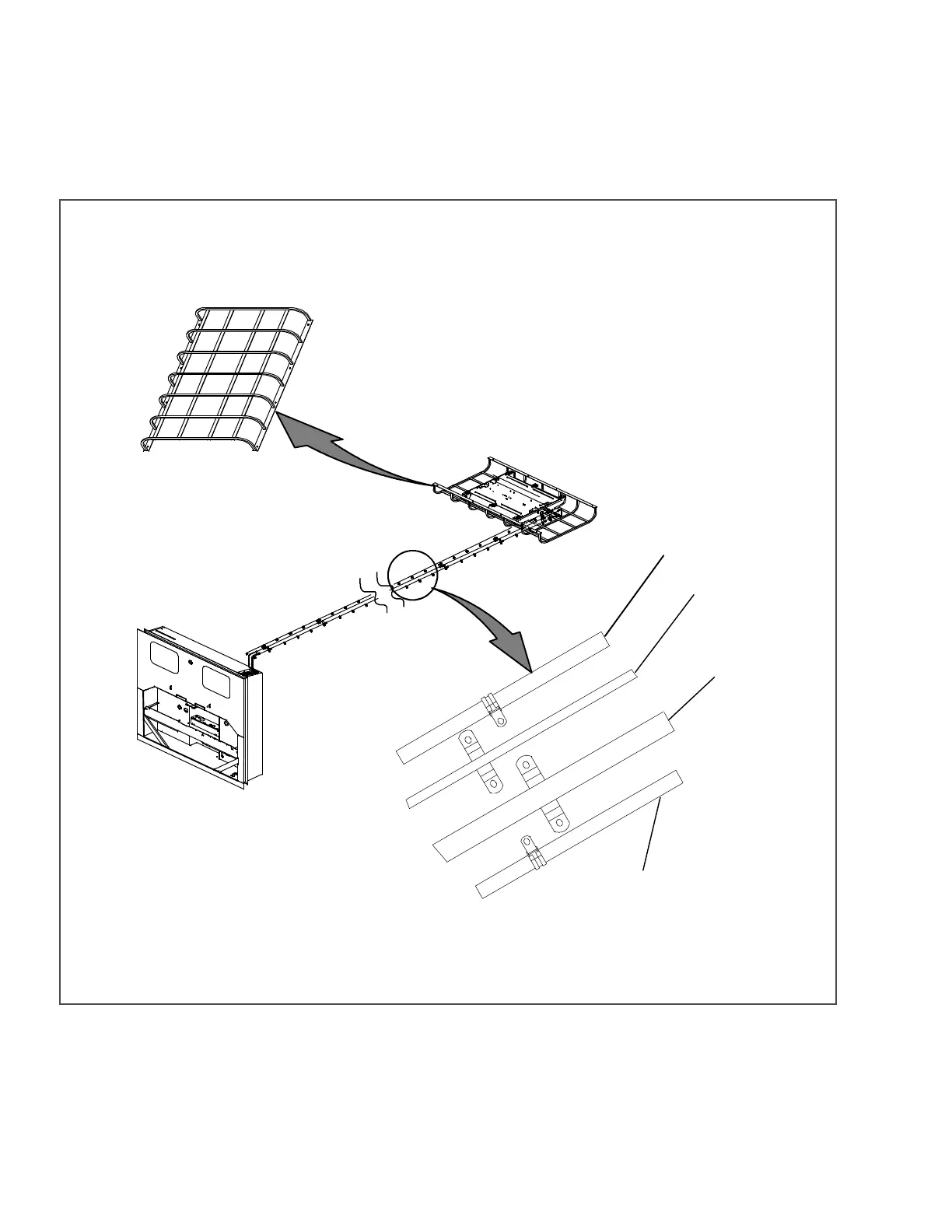

Figure 2.15 Remote Evaporator - Dual Temperature Installation Kit
High Voltage Cable
Liquid Line
Suction Line
Low Voltage Cable
