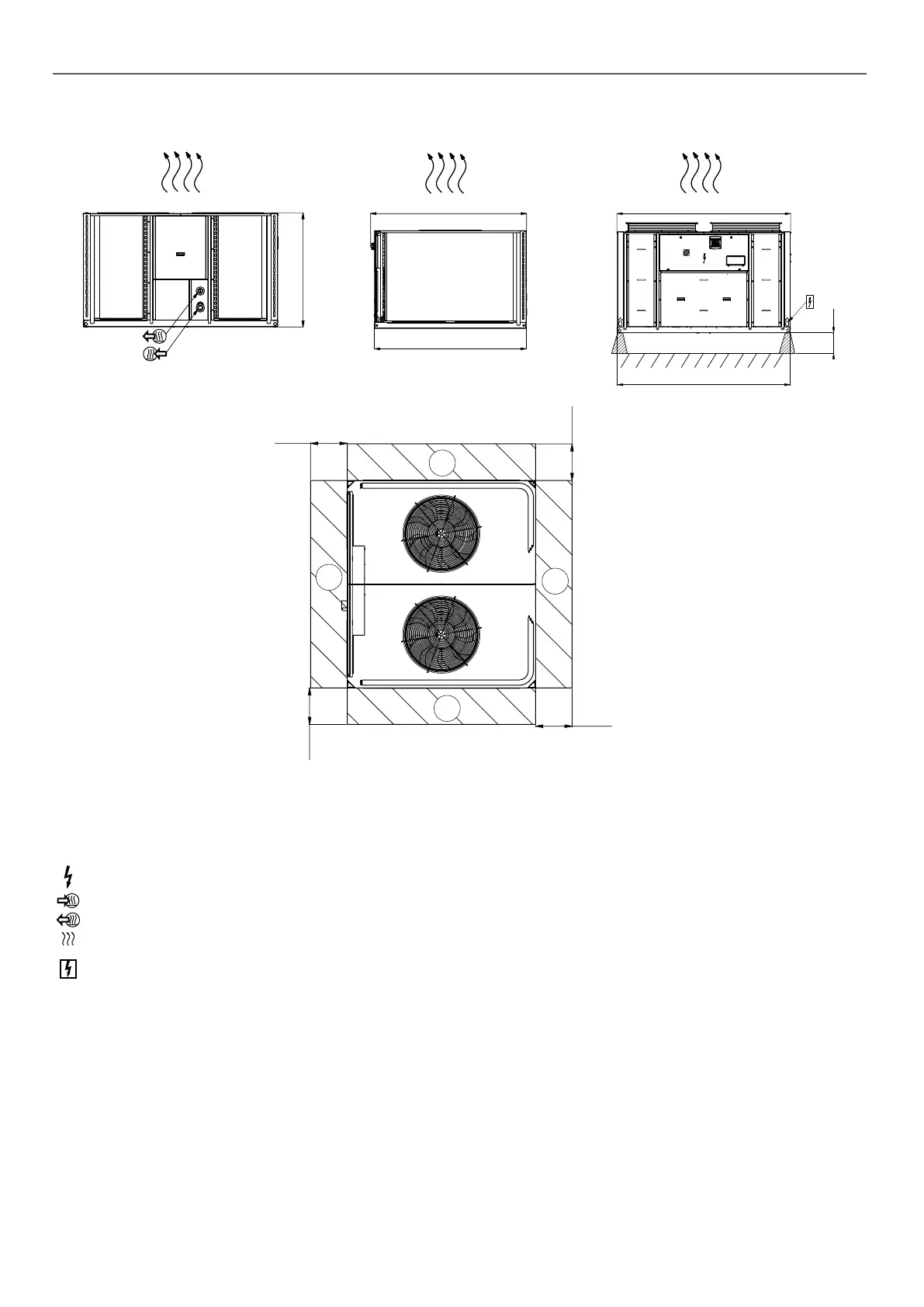

3 - DIMENSIONS, CLEARANCES
3.3 - 61AF 075-105, units with and without hydraulic module
1000
1000
1000
1000
1330
2100
2053
300
2261
2273
1
1
1
2
Legend :
All dimensions are given in mm mm.
NOTES: :
A Non-certied drawings.
Refer to the certied dimensional drawings supplied with
the unit or available on request, when designing an
installation. For the location of xing points, weight
distribution and coordinates of the centre of gravity refer
to the certied dimensional drawings.
B In multiple-unit installations (maximum four units), the
side clearance between the units should be increased
from 1000 to 2000 mm.
C The height of the solid surface must not exceed 2 m.
B
Required clearances for air ow
C
Recommended clearances for maintenance
Control box
Water inlet
Water outlet
Air outlet, do not obstruct
Air outlet, do not obstruct
