Carrier AquaSnap 61AF 075 - 61 AF 075-105 Option 11, Units with and Without Hydraulic Module; Multiple-Unit Installation

3.6 - 61AF 075-105 option 11, units with and without hydraulic module
1371
2100
2273
300
1000
1000
1000
1000
1
1
2
2

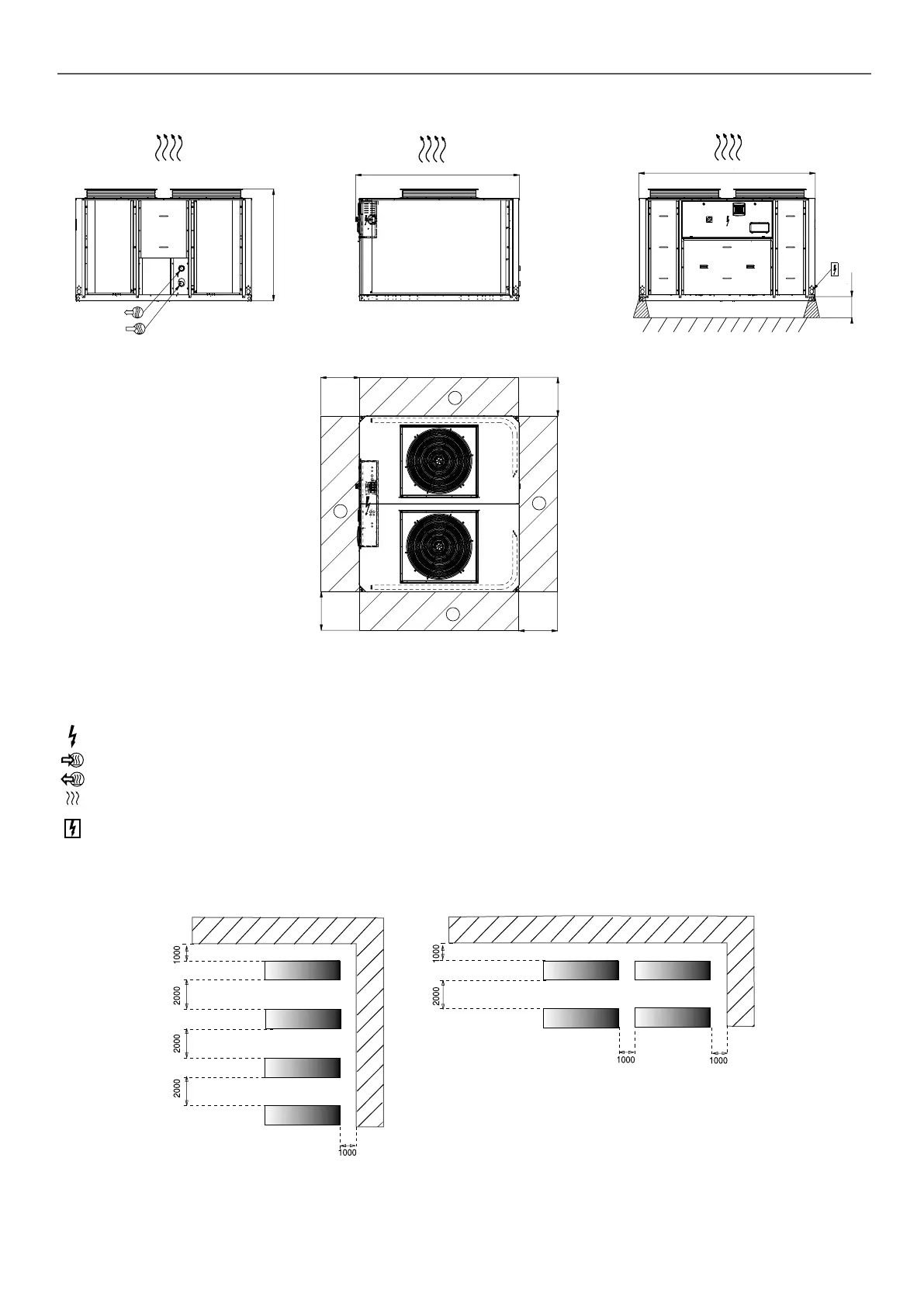

Legend :
All dimensions are given in mm mm.
NOTES: :
A Non-certied drawings.
Refer to the certied dimensional drawings supplied with
the unit or available on request, when designing an
installation. For the location of xing points, weight
distribution and coordinates of the centre of gravity refer
to the certied dimensional drawings.
B In multiple-unit installations (maximum four units), the
side clearance between the units should be increased
from 1000 to 2000 mm.
C The height of the solid surface must not exceed 2 m.
B
Required clearances for air ow
C
Recommended clearances for maintenance
Control box
Water inlet
Water outlet
Air outlet, do not obstruct
Air outlet, do not obstruct
3.7 - Multiple-unit installation
Solid wall Solid wall
NOTE: If the walls are higher than 2 m, contact the factory.
