Carrier BT30RF- EXPR - Page 104

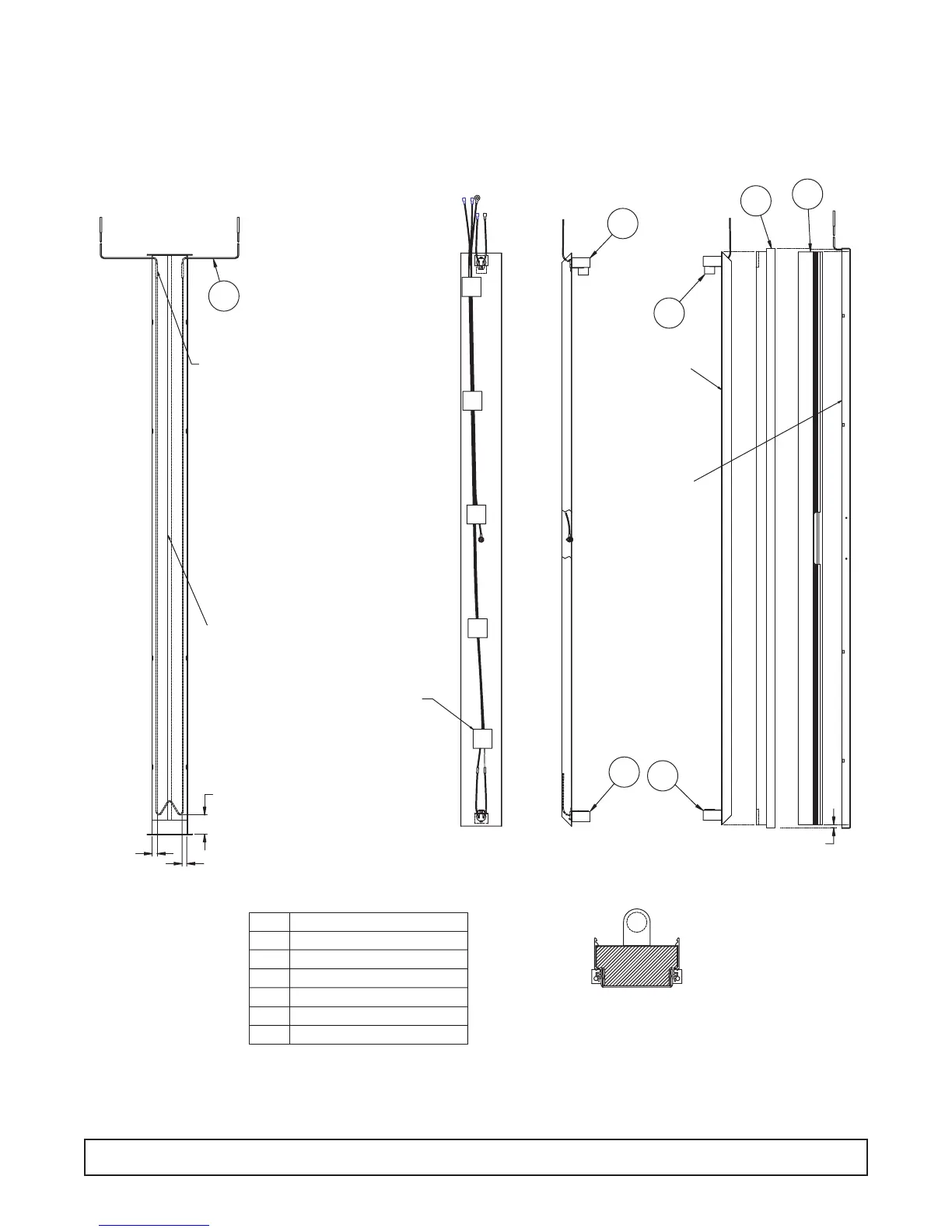

MULLION LAMP ASSEMBLY
INSULATION
TAPE APPROX. EVERY
12" AS SHOWN.
SUPPLY HARNESS
TOP LAMPHOLDER
DESCRIPTION
BOTTOM LAMPHOLDER
STANDARD MULLION
2 MIN
3 MAX
1/2 MAX
ON OUTER PANEL
HEATER PLACEMENT
1/2 MAX
SEQ
6
5
4
HEATER
BREAKER
3
2
1
TAPE OVER
HEATER,
FULL LENGTH
LOCATE SPLICE APPROX.
AS SHOWN. DO NOT BEND.
TAPE MUST COVER SPLICE
1
COMPLETED ASS'Y
COMPLETED ASS'Y CROSS-SECTION
BOTTOM MOUNT WIRES
INNER PLATE W/LAMP
TOP MOUNT SHOWN
EXIT AT BOTTOM
4
4
5/16 TYP
OUTER PLATE
INNER PLATE
3
3
6
2
106 MULLION LAMP ILLUSTRATION
