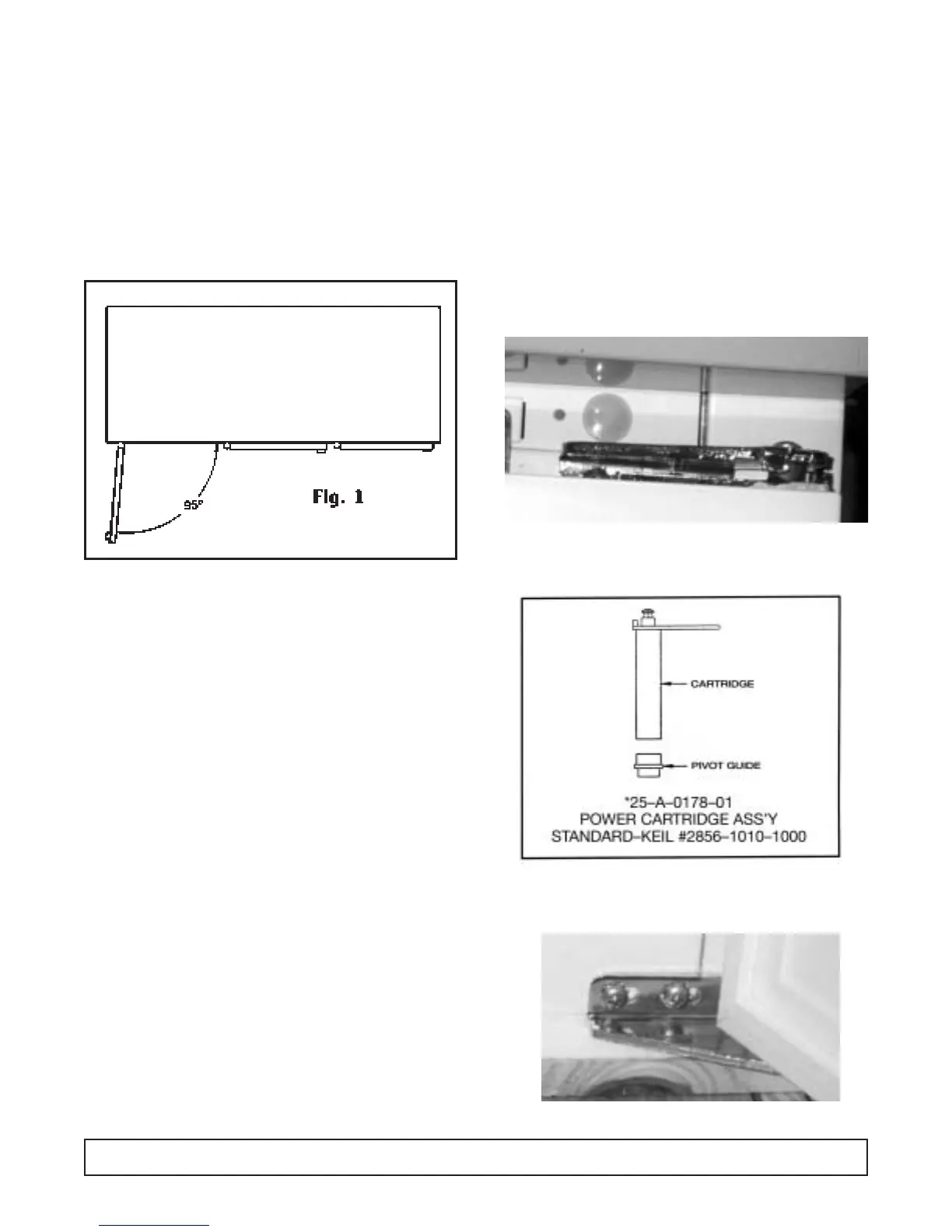

CAM HINGE DOORS – OPERATION & REMOVAL
(Solid Door Cabinets Only)
MAINTENANCE & REPAIR 49
HOLD-OPEN FEATURE
The doors can be opened up to a 95° angle and will
maintain that position for loading or unloading the stor-
age compartment. Refer to Fig. 1.
Door Removal
The door can be removed by opening door 180°.
Grasp door with one hand. Remove two screws locat-
ed in top bracket of door opening. Door can be lifted up
and away from the BTM Bracket pin.
NOTE: Door closer cartridge is spring loaded.
ALIGNING THE DOORS
Proper alignment of the cabinet doors will eliminate
hinge binding and provide correct gasket seal.
Top Bracket door opening slotted holes for up and
down adjustment.
Spring Cartridge located in door, can be removed by
two screws Top of Door.
BTM Bracket Door opening slotted holes are for
adjustment Left or Right
