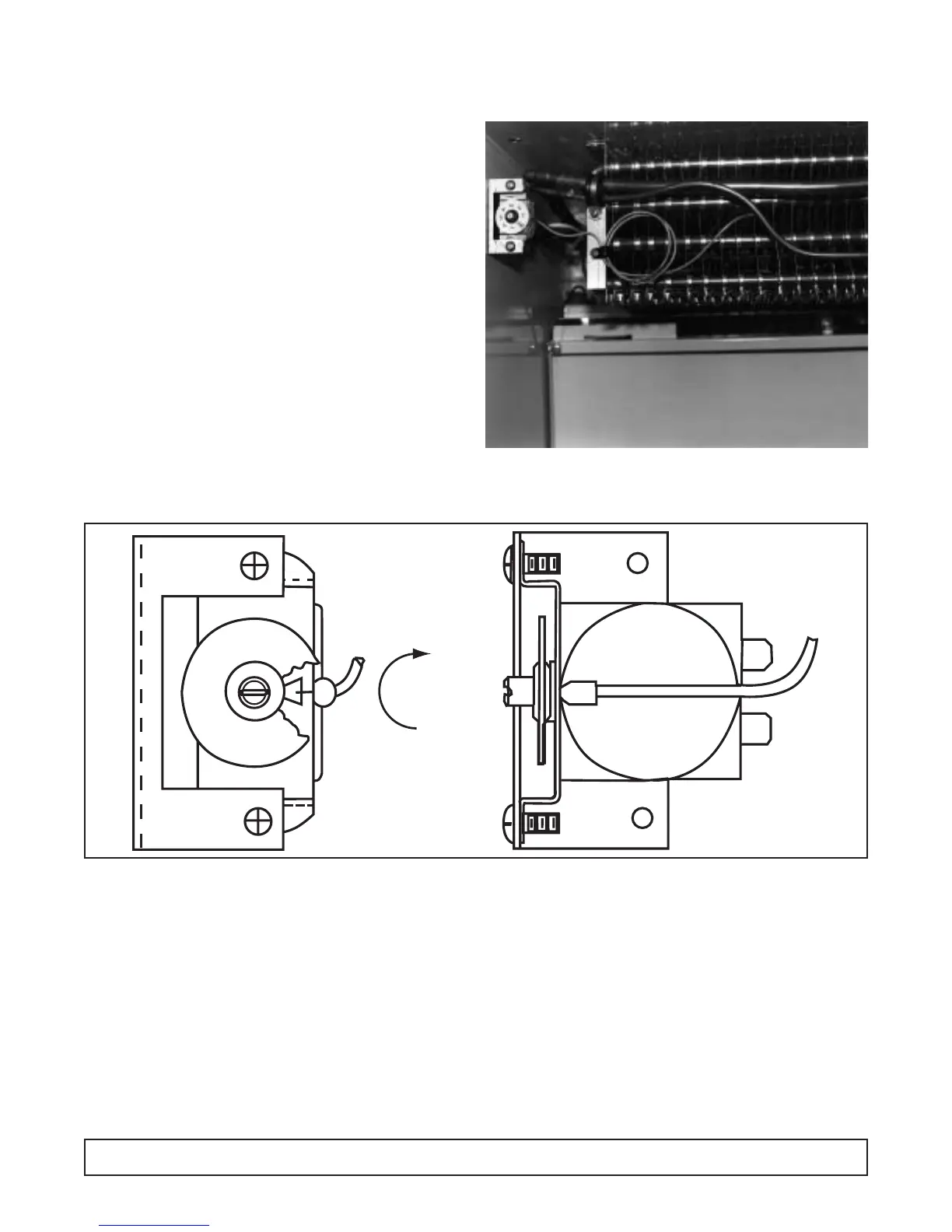

The thermostat is located in the upper left hand corner
of the drain pan area. It functions to control the tem-
perature within the cavity of the cabinet. Rotate the
thermostat clockwise for colder and counterclockwise
for warmer.
NOTE: location of bulb well in coil.
1. Disconnect power to the cabinet.
2. Lower evaporator drain pan.
3. Remove screws on mounting bracket.
4. Slide thermal bulb assembly out of cabinet.
5. Replace thermostat into position as indicated in
above photo.
6. Replace screws.
7. Replace evaporator drain pan.
8. Reconnect power to cabinet.
(Do not crimp capillary tube. This will affect ther-
mostat’s performance or make it inoperable.)
TEMPERATURE CONTROL
Position #7 is the coldest.
Position #1 is the warmest.
Temperature Range Adjustment
MAINTENANCE & REPAIR 57
