Wiring the Carrier® Connect™ Wi-Fi Thermostat
33CONNECTSTAT43 ©2022 Carrier.
Installation Guide All rights reserved.
7
Use Remote Sensor input terminals S1 and S2 for the following inputs:
• OAT
• T55
• SAT
• Occupancy contacts
• Econ Fault

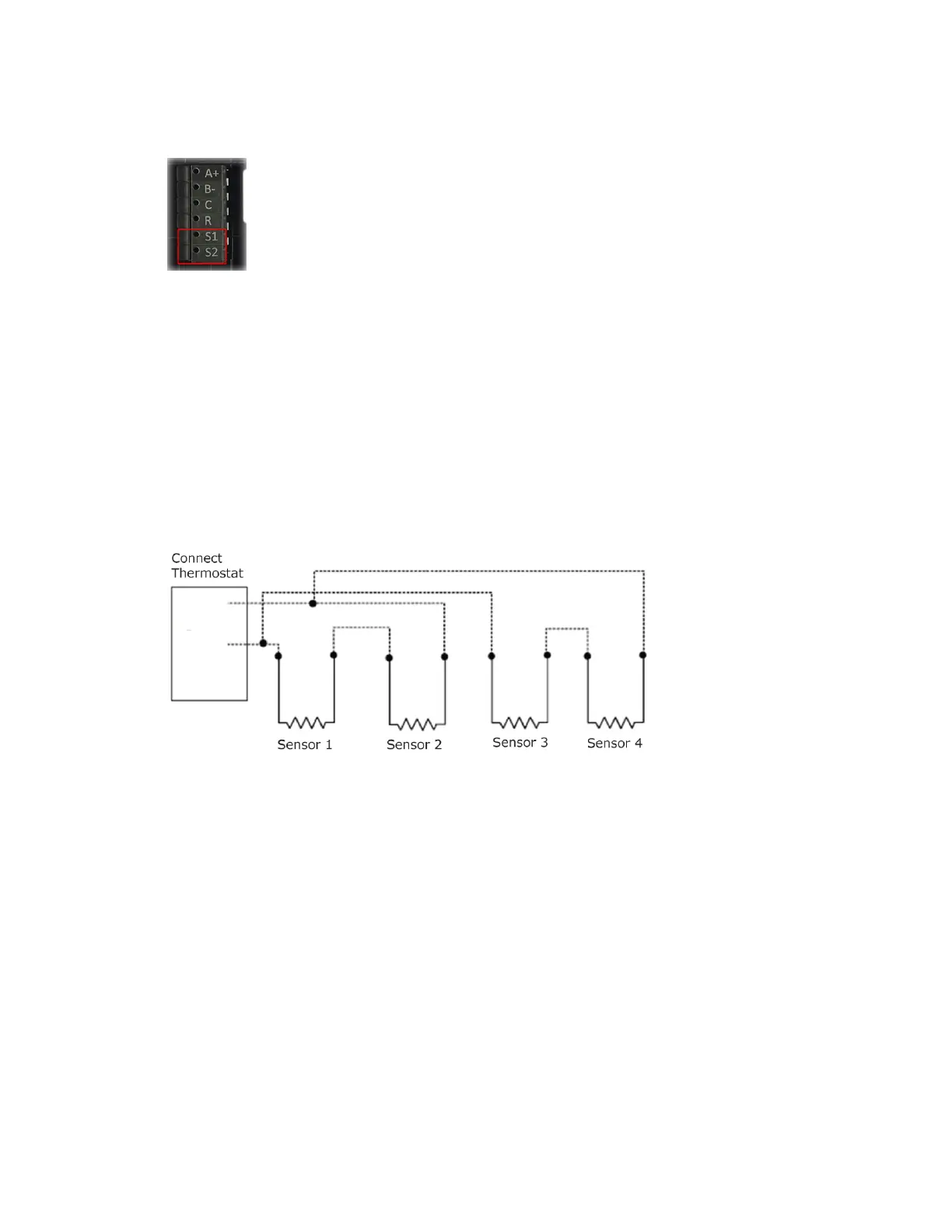

Wiring for space temperature sensor averaging
4 sensors
