Carrier Ecologic Series 3 - Page 28

28

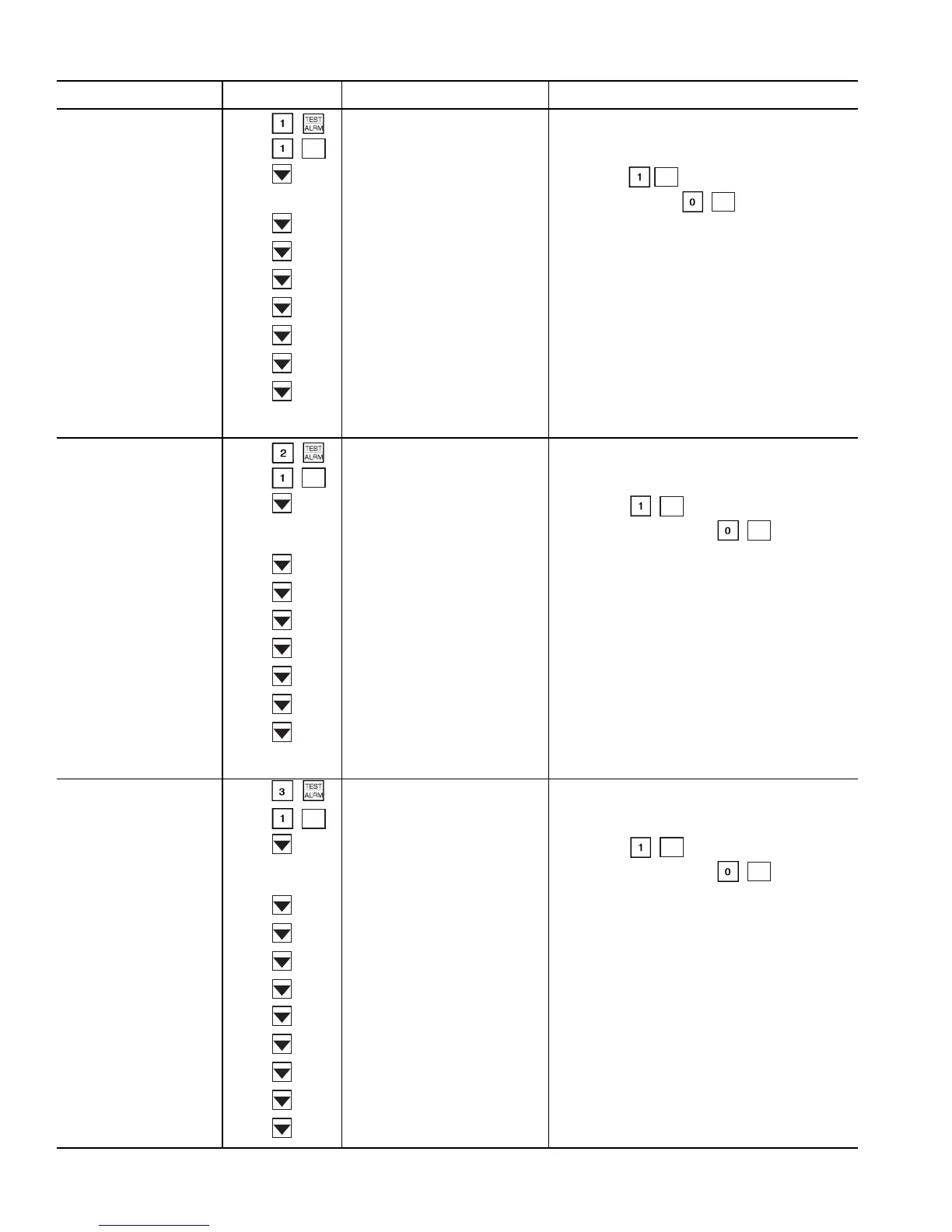

Table 17 — Test Function and Subfunction Directory
SUBFUNCTION KEYPAD ENTRY DISPLAY COMMENT
1 Circuit A Discrete Outputs
Circuit A Discrete Output Loader A1
Relay is OFF
Loader A1
Relay is ON
Loader A2
Similarly, use to test remaining outputs. Press
the down arrow key or to turn an output off.
Minimum Load Valve A
Circuit A Oil Heater
A1 Mtr. Cooling Solenoid
A2 Mtr. Cooling Solenoid
Circuit A Oil Pump
Oil Solenoid A1
Oil Solenoid A2
NOTE: Output will display Relay is ABSENT when not
configured
2 Circuit B Discrete Outputs
Circuit B Discrete Output Loader B1
Relay is OFF
Loader B1
Relay is ON
Loader B2
Similarly, use to test remaining outputs.
Press the down arrow key or to turn an
output off.
Minimum Load Valve B
Circuit B Oil Heater
B1 Mtr. Cooling Solenoid
B2 Mtr. Cooling Solenoid
Circuit B Oil Pump
Oil Solenoid B1
Oil Solenoid B2
NOTE: Output will display Relay is ABSENT when not
configured
3 Unit Discrete Outputs
Unit Discrete Output Fan 1
Relay is OFF
Fan 1
Relay is ON
Fan 2
Similarly, use to test remaining outputs.
Press the down arrow key or to turn an
output off.
Fan 3
Fan 4
Fan 5 Energizes Circuit A fans for 30HXA units.
Fan 6 Energizes Circuit B fans for 30HXA units.
Cooler Pump
Condenser Pump
Cooler Heater
Alarm
Remote Alarm 1 Currently not supported.
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
