APPENDIX E (cont)

Unit Size Range

NOTE: Ft of water = 2.31 x psig.

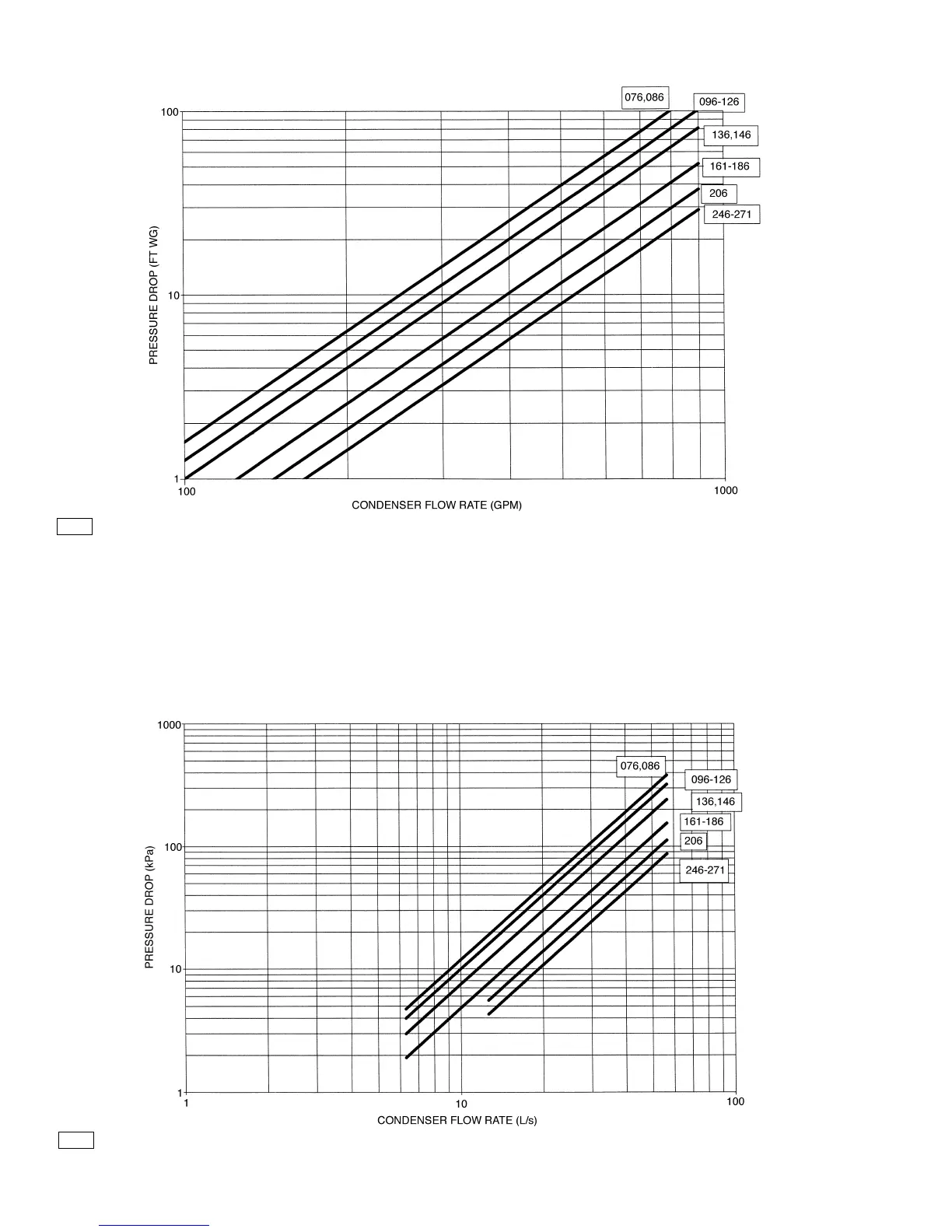

30HX CONDENSER PRESSURE DROP — ENGLISH

Unit Size Range

30HX CONDENSER PRESSURE DROP — SI
